Hi,
At my client, we would like ServiceNow to read the groups as they are registered in GSuite. I run into an issue with this integration, as i seem to receive a OAuth token, but when i use it i receive a 403 error
From the google docs, i understand that you should (more or less) "impersonate" a user. However, i'm not sure if this is mandatory when using a Service Account in google. Because google created a service account, i do not have a client secret and client ID, but had to compile a .jks file from a certificate and use a JWT integration.
Any assistance will be greatly appreciated, as currently I think i tried everything i could think off.
Below a description of my configuration.
Using the JWT Provider and Application registry, I registered the credentials our Google team provided. Using these credentials I am able to click on the Rest Message (sys_rest_message) "Get oauth Token" which will show "OAuth token flow completed successfully" in the pop up. When i click on "Test" on the HTTP Method (sys_rest_message_fn), however, I receive this:
HTTP status: 403
Error message: Method failed: (/admin/directory/v1/groups) with code: 403 - Forbidden username/password combo
Error code: 6
Response:
{
"error": {
"errors": [
{
"domain": "global",
"reason": "forbidden",
"message": "Not Authorized to access this resource/api"
}
],
"code": 403,
"message": "Not Authorized to access this resource/api"
}
}
Some key configurations I have:
Endpoint: https://www.googleapis.com/admin/directory/v1/groups?domain=<CLIENT_DOMAIN>
X.509 Certificate:
Record with a .jks file for authentication
JWT Keys:
Links to the X.509 Certificate:
OAuth Entity Scope:
Requesting the scope: https://www.googleapis.com/auth/admin.directory.group
NOTE: I verified that google grants the service accounts this scope. I also tried the .readonly version
OAuth Entity Profile:
Linking scope, Oauth Provider, JWT Provider
JWT Provider (blacked out parts is the ServiceAccount email provided by google)
1 Custom claim not pictured (scope: https://www.googleapis.com/auth/admin.directory.group)
Application Registry (OAuth)
I had to empty Client ID & Client Secret using a background script, otherwise i would not receive a token, because they are illegal parameters
Oauth entity profile: links to the OAuth entity profile configured (as described above)
I also tried to test my configuration with this script to debug:
initiateFlow();
function initiateFlow() {
gs.print('\nstart....');
var requestor = 'd244b8f0dbdc0c106380ef905b961911';
var requestor_context = 'sys_rest_message';
var oauth_provider_profile = '3e285fd0dbdc4810be87553c689619f1';
var oauth_provider_id = '';
var tokenRequest = new sn_auth.GlideOAuthClientRequest();
tokenRequest.setParameter('oauth_requestor_context', requestor_context);
tokenRequest.setParameter('oauth_requestor', requestor);
tokenRequest.setParameter('oauth_provider_profile', oauth_provider_profile);
tokenRequest.setParameter('oauth_provider_id', oauth_provider_id);
var oauthClient = new sn_auth.GlideOAuthClient();
var tokenResponse = oauthClient.requestTokenByRequest(null, tokenRequest);
var errorMsg = tokenResponse.getErrorMessage();
gs.print('Response code: ' + tokenResponse.getResponseCode() + '\nErrorMessage: ' + errorMsg);
if (tokenResponse) {
var token = tokenResponse.getToken();
if (token) {
if (token.getAccessToken()) {
gs.print('\nTOKEN RECEIVED:\n' + token.getAccessToken());
makeRest(token.getAccessToken())
}
}
}
}
function makeRest(recToken) {
gs.print('\nMake rest using token');
var endpoint = 'https://www.googleapis.com/admin/directory/v1/groups?domain=<CLIENT_DOMAIN>';
var sm = new sn_ws.RESTMessageV2();
sm.setEndpoint(endpoint);
sm.setHttpMethod('get');
sm.setRequestHeader('Authorization', 'Bearer ' + recToken);
var response = sm.execute();
gs.print('\n\nREST Response:\nBody:\n' + response.getBody() + '\nstatusCode: ' + response.getStatusCode());
}Which results in this output
As you can see, it notes that a token is received (line 9-13)
All the way at the bottom, you can see the response is "403: forbidden"
*** Script:
start....
Ignore oauth entity from request. Use provider from oauth entity profile.
Getting JWTProvider for jwtProviderSysId = 92eb2cf4db9c0c106380ef905b9619eb
Getting JWTProviderConfig for jwtProviderId = 92eb2cf4db9c0c106380ef905b9619eb
Started to generate JWT
Successfully generated JWT
StorageEncrypter: ignoring already encrypted text starting with: }iO:S...
*** Script: Response code: 200
ErrorMessage: null
*** Script:
TOKEN RECEIVED:
ya29.c.Kl6iB3YTIpdRQYZUEF6YTBd_EGAkhhwnpKel_4qR7FopReqY4Mz0-3Ku-C7BT5AedA0oDiI3ehjOS4HVZ3LgaVvcI-Gs6yZrOhoWTsrFWj16zUlVYZQl_wnWd_wWmDjS
*** Script:
Make rest using token
*** Start Background transaction - system, user: system
*** Start Background transaction - system, user: system
Starting: SMTP Sender 2.015a962b37020200daa9a16043990e68, Trigger Type: Interval, Priority: 25, Upgrade Safe: true, Repeat: 1 Minute
Name: SMTP Sender 2
Job Context:
#Mon Oct 21 01:44:16 PDT 2019
Script:
*** Start Background transaction - system, user: system
*** Start Background transaction - system, user: system
Starting: events process 1.a0e84303db133300a898f7871d9619ae, Trigger Type: Interval, Priority: 25, Upgrade Safe: true, Repeat: 10 Seconds
Name: events process 1
Job Context:
#Mon Oct 21 01:45:41 PDT 2019
fcScriptName=javascript\:gs.processDelegatedEvents();
Script:
Starting: Flow Engine Event Handler.1d160122db0000106380ef905b9619d3, Trigger Type: Repeat, Priority: 100, Upgrade Safe: true, Repeat: 2 Seconds
Name: Flow Engine Event Handler
Job Context:
#Mon Oct 21 01:45:40 PDT 2019
Script:
Starting: Flow Engine Event Handler.5d160122db0000106380ef905b9619d5, Trigger Type: Repeat, Priority: 100, Upgrade Safe: true, Repeat: 2 Seconds
Name: Flow Engine Event Handler
Job Context:
#Mon Oct 21 01:45:40 PDT 2019
Script:
*** Start Background transaction - system, user: system
*** Start Background transaction - system, user: system
Starting: Flow Engine Event Handler.65160122db0000106380ef905b9619d9, Trigger Type: Repeat, Priority: 100, Upgrade Safe: true, Repeat: 2 Seconds
Name: Flow Engine Event Handler
Job Context:
#Mon Oct 21 01:45:40 PDT 2019
Script:
Completed: SMTP Sender 2 in 0:00:00.004, next occurrence is 2019-10-21 10:47:01
*** Start Background transaction - system, user: system
Starting: Flow Engine Event Handler.69160122db0000106380ef905b9619d7, Trigger Type: Repeat, Priority: 100, Upgrade Safe: true, Repeat: 2 Seconds
Name: Flow Engine Event Handler
Job Context:
#Mon Oct 21 01:45:40 PDT 2019
Script:
Completed: Flow Engine Event Handler in 0:00:00.005, next occurrence is 2019-10-21 10:45:53
Completed: Flow Engine Event Handler in 0:00:00.006, next occurrence is 2019-10-21 10:45:53
Completed: events process 1 in 0:00:00.009, next occurrence is 2019-10-21 10:46:01
Completed: Flow Engine Event Handler in 0:00:00.006, next occurrence is 2019-10-21 10:45:53
Completed: Flow Engine Event Handler in 0:00:00.006, next occurrence is 2019-10-21 10:45:53
Starting: Layer 2 Connections Creation.aeb1ecca7fa133001952baf8befa91ef, Trigger Type: Interval, Priority: 100, Upgrade Safe: false, Repeat: 10 Seconds
Name: Layer 2 Connections Creation
Job Context:
#Mon Oct 21 01:45:41 PDT 2019
fcScriptName=in the schedule record
Script:
GlideEventManager('physical_connections_creation').processDelegatedEvents();
Completed: Layer 2 Connections Creation in 0:00:00.007, next occurrence is 2019-10-21 10:46:01
*** Script:
REST Response:
Body:
{
"error": {
"errors": [
{
"domain": "global",
"reason": "forbidden",
"message": "Not Authorized to access this resource/api"
}
],
"code": 403,
"message": "Not Authorized to access this resource/api"
}
}
statusCode: 403
*** Script: 3600 null
[0:00:00.596] Total Time
thanks in advance for your time and effort!
In addition to the above..
When I wrote the last post I did not have the correct customer ID, but I did get manage to get the token-request working by removing the sub claim.

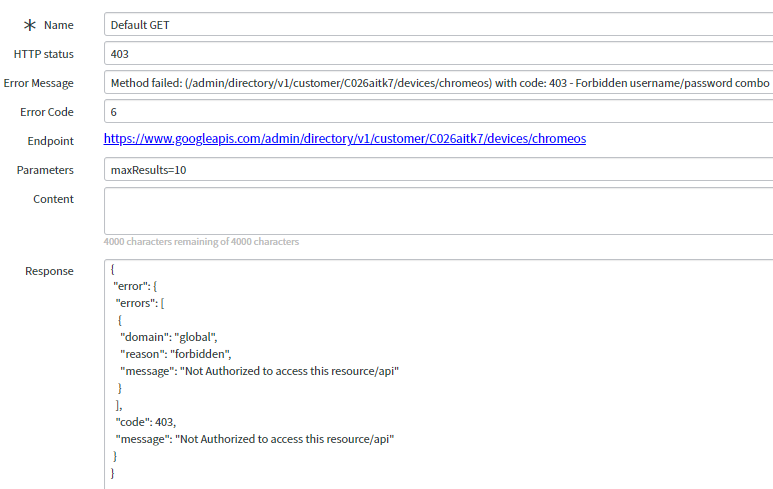

However, now having the right customer ID in a HTTP request that consumes that token against the actual Google API resource I do get the same error as you did:
But what was a solution for you (adding the sub claim admin user), prevents my logic from getting a token in the first place, so now I am stucked again..
Any ideas?
Anders
