How to convert Workflow Script To Flow desihner

[MalikB]

Hi!

In a case of a conversion from workflow to flow designer , in the first step there is a Script to set RITM fields :

current.short_description = current.variables.ritm_short_description.getDisplayValue();
var related_offering = new GlideRecord('u_m2m_service_offering_catalog_item');
related_offering.addQuery('u_catalog_item', current.cat_item);
related_offering.query();
if (related_offering.next()) {
    current.service_offering = related_offering.getValue('u_service_offering');
    var service_offering = related_offering.u_service_offering.getRefRecord();
    current.assignment_group = service_offering.getValue('u_support_level_n1');
    current.business_service = service_offering.getValue('parent');
}

 And in the Catalog Task :

task.assignment_group = current.variables.sctask_assignment_group.getValue();
task.short_description = current.variables.sctask_short_description.getDisplayValue();

How to convert the workflow (begin -> Run Script (set RITM fields) -> Approval Action -> Catalog Task -> X=Set values -> end) to a flow designer?

[MalikB]

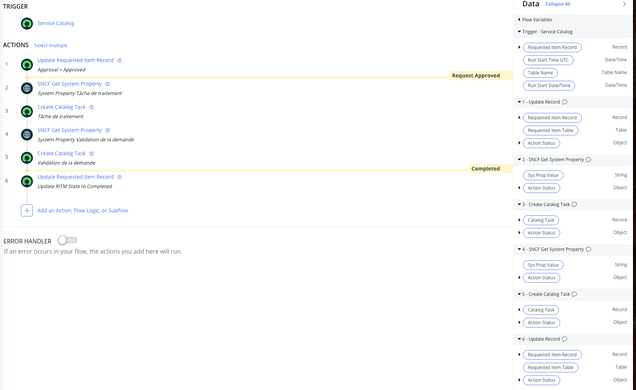

@Ankur Bawiskar Is it like that? however i cat find what i need for the conditions that was scripted

[Ankur Bawiskar]

@MalikB

in your Lookup you need to add condition using your catalog variable

Like this u_catalog_item == Requested Item->Item

If my response helped please mark it correct and close the thread so that it benefits future readers.

[MalikB]

@Ankur Bawiskar

Ive changed the flow using an assignment rule to get service offering values fields and ritm short description like this :

var cat=current.cat_item;

	var gr1 = new GlideRecord("u_m2m_service_offering_catalog_item");
	gr1.addQuery("u_catalog_item", cat);
	gr1.query();
        if (gr1.next()){
                        current.service_offering=gr1.u_service_offering.sys_id.toString();
                        current.business_service=gr1.u_service_offering.parent.sys_id.toString();
                        current.assignment_group=gr1.u_service_offering.u_support_level_n1.sys_id.toString();
}


current.short_description = "MARS"  + " - " + current.ritm_short_description.getDisplayValue() ;

The original in the workflow was :

current.short_description = current.variables.ritm_short_description.getDisplayValue();
var related_offering = new GlideRecord('u_m2m_service_offering_catalog_item');
related_offering.addQuery('u_catalog_item', current.cat_item);
related_offering.query();
if (related_offering.next()) {
    current.service_offering = related_offering.getValue('u_service_offering');
    var service_offering = related_offering.u_service_offering.getRefRecord();
    current.assignment_group = service_offering.getValue('u_support_level_n1');
    current.business_service = service_offering.getValue('parent');
}

and system properties to get assignment group i

i just need to get short description now right like in the workflow :

task.short_description = current.variables.sctask_short_description.getDisplayValue();

 if you see a mistake or can help to convert what needed from workflow to flow

[MalikB]

@Ankur Bawiskar i cant find the the variables to make the conditions
