How to create a simple button on a catalog item?

Subhashree3
Giga Contributor

Hi All,

We have a requirement to create a button on the catalog item that will only be visible when the user opens in service portal.I tried as per below step but I observed instead of service portal, its appearing at the RITM level. Could you please let me know how to implement a custom button on catalog item only?

steps i followed:

 1. Created a UI Macro under System UI.

//XML Code

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">
<div>
<button type="button" class="btn btn-default btn-block" onclick="alert('Hello world!')">Next</button>
</div>
</j:jelly>

2. Created a Widget under Service Portal

//HTML Code

<div>
<!-- your widget template -->
<button type="button" class="btn btn-default btn-block" onclick="alert('Hello world!')">Next</button>
</div>

*For now I have not added any functionality under Client cOntroller and Server script

3. Created a variable in the catalog item of Macro type and mapped this UI macro and WIdget I created.

Instead of appearing at the Catalog Item, its appearing under RITM level. Please let me know your suggestions.


Thanks

1 ACCEPTED SOLUTION

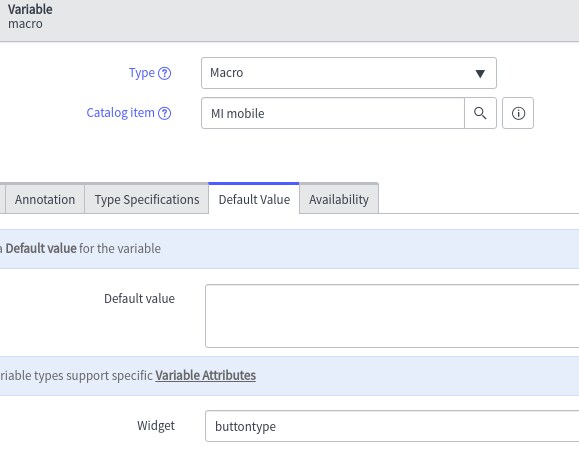

In variables keep macro and summary macro field empty.






and Now add the widget as shown below

View solution in original post

17 REPLIES 17

Hi,

Please try the way I mentioned in my below post. It will be hidden in RITM level

Hi Subhashree,

So is it not working for RITM view?

What happens when user opens the RITM in service portal -> is it not getting hidden?

What happens when user opens the RITM in native -> is it not getting hidden?

Regards

Ankur

Regards,
Ankur
✨ Certified Technical Architect  ||  ✨ 9x ServiceNow MVP  ||  ✨ ServiceNow Community Leader

Hi Ankur,

Yeah the button is not getting hidden at RITM level. Can any UI policy or something be done to hide this button variable?




sandeep24
Tera Guru

Service Portal: Catalog Item Buttons

Link to open in new window





Create Widget

In HTML:



<input type="button" value="Open Window"

onclick="window.open('http://w3.ibm.com')">





Variables FOR YOUR CATALOG ITEM

TYPR= UI Macro
Widget: Widget name


sandeep24
Tera Guru

Service Portal: Catalog Item Buttons

Link to open in new window





Create Widget



In HTML:



<input type="button" value="Open Window"

onclick="window.open('http://w3.ibm.com')">






Variables FOR YOUR CATALOG ITEM

TYPR= UI Macro
Widget: Widget name
