How to set "Update Record" action in Flow Designer to add "1" to the Integer field's value?

[Aki18]

In the Flow Designer, I would like to set "Update Record" action that updates an integer field to add "1" like below:

Field_A's current value: 0

--> Update the value to "1" (0 + 1) with the flow action.

*I'm planning to use this field to set a loop action using "Do the following until" flow logic.

Please let me know how to add (increase) number in the "Update Record" action.

Best Regards,

Aki

[Ahmmed Ali]

Hello @Aki18

You can use write script to read the integer data and add 1 to it in field mapping script.

Below is example I did in PDI for knowledge view count update:

You need to select your update record step after fd_data. in above script.

Hope this helps.

Thanks,

Ali

[Aki18]

Hi @Ahmmed Ali ,

Thank you for your reply, but could you tell me how to get and populate the script "fd_data.~~~"? Can I drag&drop to populate it?

[Ahmmed Ali]

Hello @Aki18

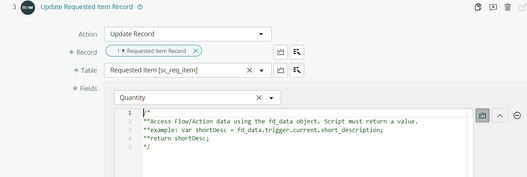

Just open the script editor in field map using the icon pointed in my last answer, the script editor, when you type "fd_data." , you will automatically get suggestions for available data points in the flow.

Let me know for any issue.

Thank you,

Ali

[Chinmay Tawade1 · Accepted solution]

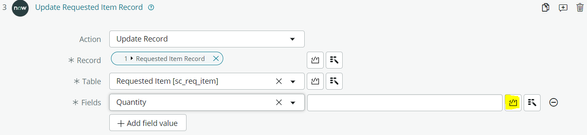

Toggle to Scripting

Click on the Highlighted icon to toggle to script.

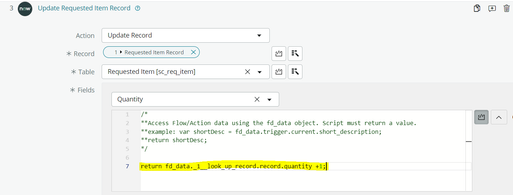

This Script box appears where you can write the code.

Write below script -

return fd_data._1__look_up_record.record.quantity +1;

And about how to populate fd_data.

You can simply write fd_data. and press ctrl+spacebar to get the datapills. It is ame like drag and drop of data pills but through script - Using script you can manipulate the data, In your case we are taking Quantity and increase it by 1.

Thnaks,

Chinmay.

If this anwer has helped you then please mark as this answer as correct.
