Lookup Select Box saving text value rather than sys_id from a record producer

[rathbone]

When changing a record producer field that is a reference to a Lookup Select Box the html it generates sets the options value attribute to the String value not the sys_id.   When the request is saved to my table the reference is then broken.   I can't seem to find anywhere I can tell the field to populate the sys_id instead of string value.   How do I set the Lookup Select Box to have the sys_id in the value instead of the string value?   I am running Eureka but have tried in Fuji on my personal instance with the same result.   If I leave it as just a reference field it works as expected.

[Pradeep Sharma]

Hi Stanley,

You have to update the value via script through record producer. That is fetch the variable at record producer and then GlideRecord the target table to get the sys_id.

Please let me know if you have any questions.

[HV1 · Accepted solution]

What field from the referenced table have you set as the Lookup Value field.   The Lookup Value field should be the sys_id of the referenced table in this case.

Reference: Variable Types - ServiceNow Wiki

- Hardik Vora

[rathbone]

Thank you.   I had set the Lookup value field as the name field of the referenced table instead of the sys_id.   Didn't notice the "Lookup label field(s)" option.   Thank you very much.   Works now.

[Het]

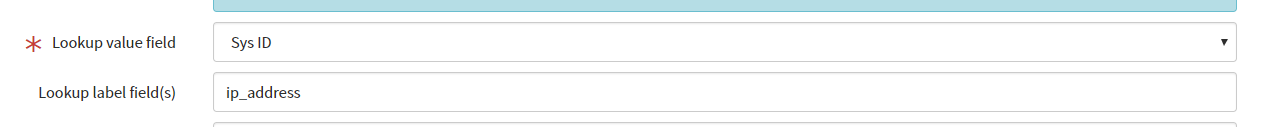

Set lookup value field as "SYS_ID"

and lookup lable field as a text display in select box.

The select box display as follows.Ip_address is text display and sys_id is value.
