Need help with my onAfter transform script. It is not showing the image properly on the image prompt/field. Please help.

[John Clyde Ap_a]

I am trying to dynamically add attachments to every imported record and want to automatically attach it to the image prompt, I tried a script but I cannot seem to make the image display properly work..

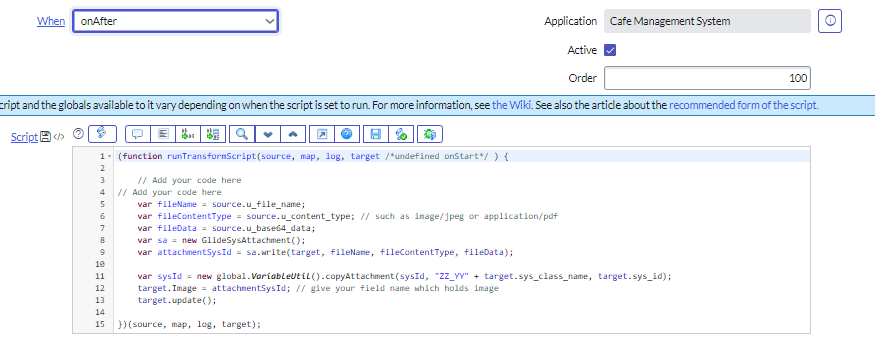

I have tried this script:

This is what it shows up:

Its not an image as there is no preview for it. I'm not sure why it is not showing the image.

I wanted to display the images just like the other image(note that I manually added the image, but I wanted to dynamically add it base on my script) in the pic below but its not showing it properly.

For reference this is my imported excel table.

Here is my mapped fields:

Can anyone please help? It's been a few days and I am still unfortunately stuck.

[Ankur Bawiskar]

Hi,

Did you try with jpg or jpeg?

regards
Ankur

[John Clyde Ap_a]

Hello Ankur,

Yes I have tried it but unfortunately It still won't work.

For reference this is the excel data

Here is the record, the attachment works but assigning the image on the image prompt doesn't.

(function runTransformScript(source, map, log, target /*undefined onStart*/ ) {

	// Add your code here
// Add your code here
	var fileName = source.u_file_name;
	var fileContentType = source.u_content_type; // such as image/jpeg or application/pdf
	var fileData = source.u_base64_data;
	var sa = new GlideSysAttachment();
	var attachmentSysId = sa.write(target, fileName, fileContentType, fileData);

	var sysId = new global.VariableUtil().copyAttachment(sysId, "ZZ_YY" + target.sys_class_name, target.sys_id);
	target.Image = attachmentSysId; // give your field name which holds image
	target.update();

})(source, map, log, target);

[-O-]

Have you checked that those images can be downloaded from sys_attachment directly and once downloaded those can be opened in a viewer or something as valid image files?

Perhaps the base64 data is actually corrupt - e.g. the import set row table field length for images it too small.

[John Clyde Ap_a]

Hello János,

 I have rechecked it and viewed them in a viewer  and indeed you are right, there seems to be a problem with the base 64 data as it shows this

even though it shows an image icon on the attachment

Is there a workaround you can recommend? Is there something wrong with the script as to why its not handling the image correctly?

[Ankur Bawiskar]

Hi,

The script I shared has worked fine for me.

Possibly as mentioned by Janos your base64 data might be corrupt based on import field length.

To test the functionality you can do this

1) add an image to record manually

2) then use this script to confirm if it gets attached to the image field

you will have to hard-code the table name and record sysId

Regards
Ankur
