Refernce qualifier on Lookup select box

Martines
Tera Expert

HI community,



I have record producer with two variables. Leave type and Leave type detail. Both of them are look up select box type.



 When I choose value from Leave type I want that reference qualifier will filter leave type detail options according the Leave type value.  but when I paste into reference qualifier current.variables.leave_type i got nothing.



Do you have any idea why I got no value in current.variables.leave_type ? Thank you for help

1 ACCEPTED SOLUTION

Martines
Tera Expert

I found a solution. The problem was that on a leave_type variable I have Look up value field as SYS_ID.  In the backend this field is a choice type field. So I changed the SYS_IS value to backend name of the field which is u_leave_category.  Then in my leave_type_detail variable I can receive value from current.variables.toString();

View solution in original post

15 REPLIES 15

Its_Azar
Mega Sage

Hi there @Martines



current.variables.leave_type  won’t work directly in the reference qualifier because the variable value is on the client side while the qualifier is evaluated server side.

Try using a catalog client-callable Script Include + AJAX, or use an advanced reference qualifier that receives the variable value through the appropriate variable context.

☑️ If this helped, please mark it as Helpful or Accept Solution so others can find the answer too.

Kind Regards,
Azar
Serivenow Rising Star
Architect@ KPMG.

Ankur Bawiskar
Tera Patron

@Martines

please share screenshot of your 2nd variable reference qualifier config how it's applied

how is the 2nd variable's reference table record linked with 1st one?

💡 If my response helped, please mark it as correct and close the thread 🔒— this helps future readers find the solution faster! 🙏

Regards,
Ankur
Certified Technical Architect  ||  10x ServiceNow MVP  ||  ServiceNow Community Leader

Martines
Tera Expert

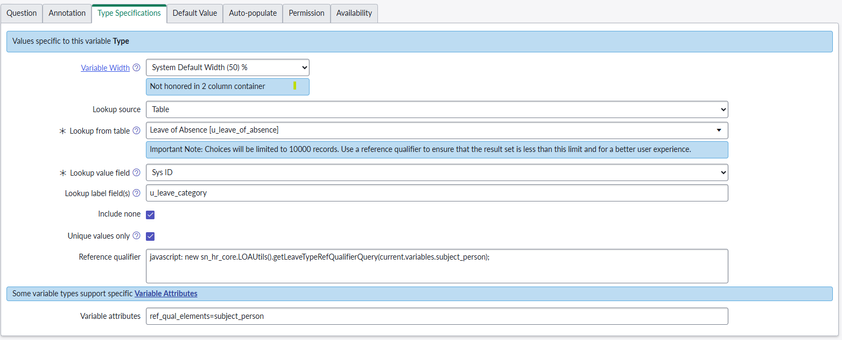

@Ankur Bawiskar  Here is my leave_type variable configuration:

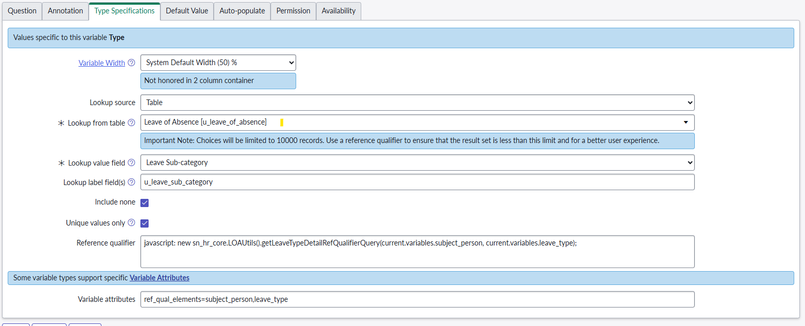

Here is my leave_type_detail variable configuration

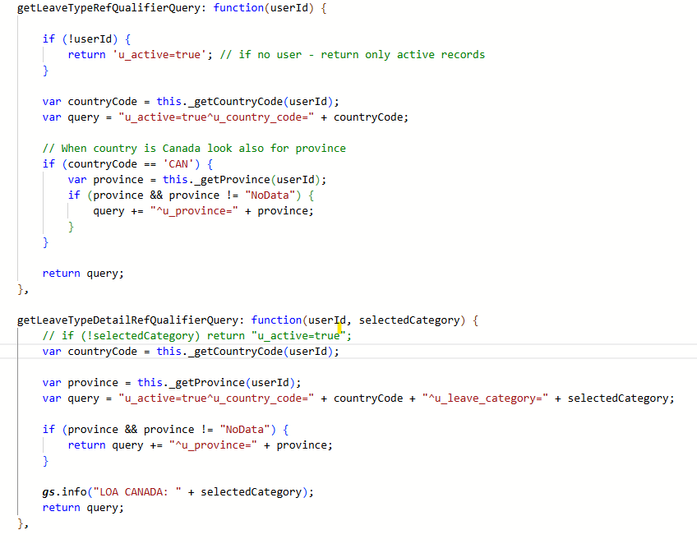

And I'm using script includes to build a query for reference qualifier.


the u_leave_of_absence table has fields u_leave_category and u_leave_subcategory.



@Martines

did you add log and see if value is coming in script include function?

Regards,
Ankur
Certified Technical Architect  ||  10x ServiceNow MVP  ||  ServiceNow Community Leader
