UI builder - Unable to show variables in contextual sidebar in configurable workspace

Guruvendra2
Tera Contributor

When use static values in table, sysid in variant, I am able to see in workspace. I am unable to find way to dynamically pass table and sysid in the variant.



I followed below steps.

To achieve this
1. I duplicated OOTB "Record Default" Record as it is read only by policy.

2. Added New properties under Duplicated Record Default page Body > Page configuration to hold page table and sysid. find screenshot "Body new page configurations"

3. Created a new "view" and added variables.

4. Created a new page and variant under contextual sidebar. Please find screenshot "Variables Page and variant"

5. Added New properties under Variables variants Body > Page configuration to hold page table and sysid. find screenshot "Variables page page configuration"

4. Added "Display only form" and added view under configurations. please find screenshot "Display only form configurations"



Please let me know if I missed anything. (OR) suggest the way to pass record data dynamically.

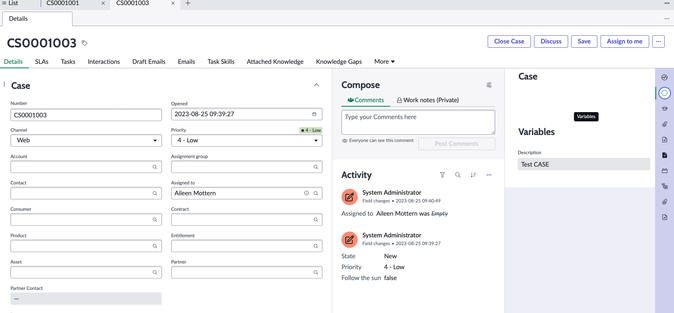

Contextual side bar.png

Body new page configurations.png

Variables Page and variant.png

Variables page page configuration.png

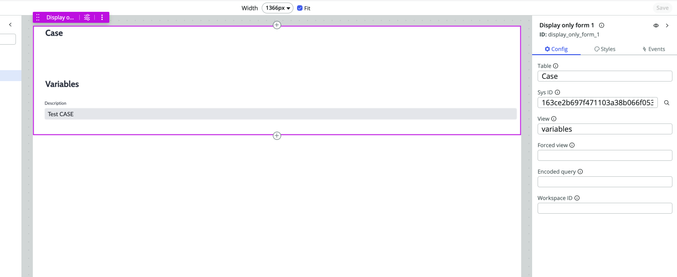

Display only form configurations.png



1 REPLY 1

Daniel R2
Kilo Sage

Hi @Brad Tilton - You responded to a reply of mine in the following community post All About Data Resources in UI Builder, that is greatly appreciated for taking the time to reply! We have read the article you guided us too and tried the method again, however we are still facing issues. As you can see from my colleagues post above: the parent property has been set up on the body of the parent page, then a property has been added on the body of the viewport variant, then finally the sysId has been related back to the parents on the 'Display only form 1' tab.

Is there any guidance you can provide to help us achieve the functionality, of displaying the records 'Variables' within a menu of the contextual side bar, or anything we could have missed thats stopping this from working?

It looks to be set up correctly from ourside however does not work dynamically, not fetching case sys id from parent

So when we also try statically, it appears like this, but then as expected is the same across all records on workspace. Then when we try to to it dynamically, then there is no content at all
