06-26-2025 09:27 AM - edited 07-29-2025 12:05 PM
Academy Session
Introduction
We’re thrilled to introduce the new unified Appointment Booking feature, now available on both the Employee Centre Pro Portal and EC Pro Kiosk. This feature allows employees to easily schedule HR appointments, whether virtually or in person, and combines the existing ITSM walk-up experience with the convenience of booking dedicated time with HR. By streamlining HR interactions, this functionality makes it easier for all employees—whether deskless or desk-based—to get the support they need without delays. It also helps HR teams manage resources more effectively, ensuring smoother, more efficient assistance for everyone involved. See the details below:

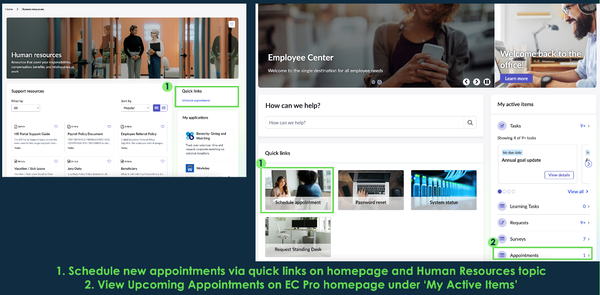

- Appointment Booking for Employee Center Pro- Employees can quickly schedule HR appointments from the Employee Centre Pro homepage via the Schedule Appointment link in the Human Resources menu or the Quick Links widget. Upcoming appointments will also appear under Appointments in My Active Items for easy tracking.
- Appointment Booking for EC Pro Kiosk– Employees can easily book HR appointments from the EC Pro Kiosk homepage using the Schedule Appointment quick link under the Get Support widget. Upcoming appointments are conveniently displayed on the homepage widget, with a link to view all scheduled appointments, making it simple to manage and track appointments at a glance.

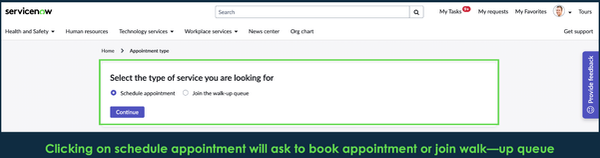

- Unified Appointment booking and Walkup experience - Organizations using both ITSM walk-up and Appointment Booking can now streamline the process with a single quick link for both experiences. Employees will be prompted to choose between scheduling an appointment or joining the walk-up queue. For those using only Appointment Booking, the intermediate step can be bypassed, directing employees straight to the booking page. Additionally, appointment list is unified to display both services, with a single Appointments activity appearing in My Active Items for easy access.
- Scheduling an appointment– During the scheduling process, employees can select an appointment category, which helps broadly define the topic, especially in multi-department setups like HR or IT services. They’ll then choose the specific reason for the appointment. Admins can configure these reasons to be available based on location, user criteria, or specific topics, allowing for customized access across different employee groups. Employees can choose virtual or in-person sessions, view available time slots in their local time zone, and provide extra details, including contact preferences, with the option to automatically update their profile.

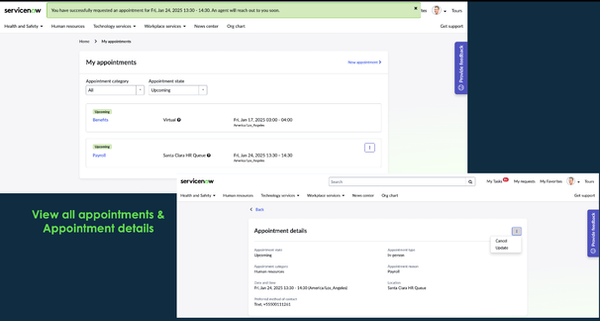

- View appointment details– After scheduling an appointment, employees can view all their appointments in one place and filter by category or status—upcoming, cancelled, or completed. They can also cancel or reschedule appointments as needed, with detailed information available via the appointment details page.
How to get access?
License & family release compatibility - The Appointment Booking capability requires Employee Center Pro license and HRSD Pro or above license. It is only available with Yokohama family release version.
Plugins required – The Appointment Booking capability requires ITSM Walk-up plugin. Besides that, it requires the Employee Center Pro (version 34.0.2).
Technical details – Admins will first need to opt into the functionality and then configure location queues for appointment booking, ensuring that all location queues used in the new experience are linked to a topic within the portal’s taxonomy. Regarding display of agent availability for appointments, currently we are not integrated with Microsoft Outlook and the agent availability is configured within the ITSM walk up configuration.
Refer to Appointment Booking product documentation for additional details. |
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Dear @SmritiGupta
I have an open question that hasn’t been answered yet. Could you help me understand the process and configuration required to enable the 'Appointment Category' feature?
You can find my thread in the HRSD forum here.
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Hi @miro2 - Appointment Category is an OOB field. While configuring the walk-up location queue, you need to map taxonomy topic to each walk-up location. For e.g. I create a Santa Clara walk-up location and map it to the Taxonomy topic 'Human Resources' which is essentially one of the appointment categories. Once you've mapped these topics, on the front end experience, from the instance configurations, you need to enable categories by clicking the check box against 'Show Categories'. Refer to docs here for further details - https://www.servicenow.com/docs/bundle/zurich-employee-service-management/page/product/employee-cent...
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
Hello @SmritiGupta ,
Our organization is trying to implement and use the "EE Appointment booking" widget but can not get past the "Appointment is not available for scheduling at the moment." message from being displayed. We have created the following resources to still no avail to get the widget to work.
1. Appointment Booking Configuration(sn_apptmnt_booking_config): Set to the task table as [itil_appointment]
2. Appointment Booking Service Configuration(sn_apptmnt_booking_service_config): Linked to the Appointment Booking Configuration and has Service Configuration rules set
3. Walk-up Location Queue(wu_location_queue): Set a general Location in our cmn_location table as the state of Iowa. Also has valid Reason for visits with Appointment Booking Configuration Rules(sn_apptmnt_booking_config_rule) set.
We also opened a HI-Case( CS8825378 ) as we'd hoped this would be lot simpler to set up...
Thanks for any advice or help you can offer!
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
I wanted to reply back to my own comment and notify others who search this we were able to figure this out or if AI's scrap this in the future. I will say the set up is much easier and simpler with an already working Walk-up experience.
The critical piece we were missing is adding the Topic to the Walk-up Location Queue(wu_location_queue). This is the SOLE piece of code that enables Appointments to appear in the My Service Portal widgets.
Booking Set up steps
REQUIRED FIRST STEP: Click “Opt-in“ on the Appointment Booking set-up.
Create a new Walk-up Location Queue(wu_location_queue). and add a Topic.
- PLEASE NOTE: This is the CRITICAL piece we were missing. Even though the SN documentation calls this out the Default AND Appointment Booking display doesn't show the Topic field OOB and will have to be added.
Create new or enable(Check Active) the Appointment Booking Service Configuration(sn_apptmnt_booking_service_config) and enable “Advanced Configurations“
PLEASE NOTE: Confirm the Booking and Appointments related tabs fit your needs.
Create new or enable “Advanced Calendar view for Portal“ on the (sn_apptmnt_booking_config) and confirm the “Appointment Booking Service Configuration“ related list has the (sn_apptmnt_booking_service_config) linked.
- You can either add the actual “EE Appointment Booking“ widget or a "link-button" Quick link to the "https://xxxxxxxx.service-now.com/esc?id=appointment_type" Appointment OOB page to route users to book using the "Page in Designer" option in My Service Portal.
