Use case
Some customers own non-English Windows Servers, like Windows localized in French language. In this case, ServiceNow Discovery can have troubles to discover servers, because the output responded by some commands could be localized.
Sadly, ServiceNow doesn’t support non-English Servers.
This article contains guidelines to support French. It is possibly not complete, but you can use it as a first step adapt it to support other languages: Same issues happens on German and Japanese Operating systems.
Note: if MID Server Operating System is not in English, it will also have an impact on all UNIX servers discoveries, because of the resolution of DNS name using “nslookup” command, So it is recommanded to apply the first modification "Modification 1".
Problem
Example: in Windows Pattern, DNS library first step uses the command nslookup.
Example of nslookup command on a French Windows version
C:\>nslookup 216.58.213.174
Serveur : livebox.home
Address: 192.168.1.1
Nom : par21s04-in-f14.1e100.ne
Address: 216.58.213.174Example of nslookup command on a english Windows version
C:\>nslookup 216.58.213.174
Server: livebox.home
Address: 192.168.1.1
Name: par21s04-in-f14.1e100.ne

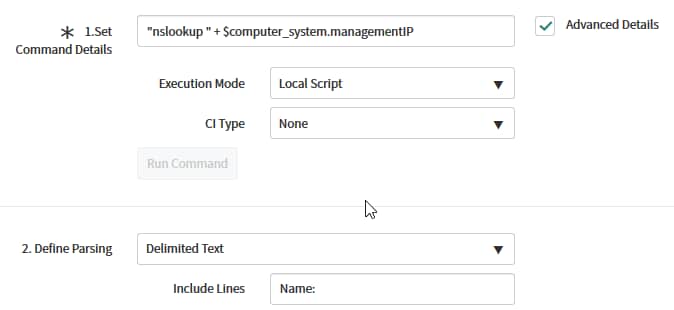

Address: 216.58.213.174Pattern step that fails:
As you can see, only the lines containing “Name:” are included. On a French server, “Nom :” will be returned, so the value won’t be parsed, result will be null.
There is no option or parameter in Windows to force a command to be answered in English. Windows Binaries are compiled with the OS language.
Solution
It is possible to customize the patterns to modify or add steps to parse non-English responses. I advise to do it as additional steps, to keep English and non-English compatibility. Indeed, most customer will have Operating system in different languages.
List of identified modifications:
|
Modification |
Library |
Command |
|
Modification 1 |
DNS library |
nslookup command |
|
Modification 2 |
Get Data Set By Windows – Classify library |
nbstat command |
| Modification 3 |
Get Data Set By Windows – Classify library |
Extraction of domain name |
|
Modification 4 |
Windows – Network library |
Status of interfaces |
Please find attached an update set tested on Paris release (Patch 1).

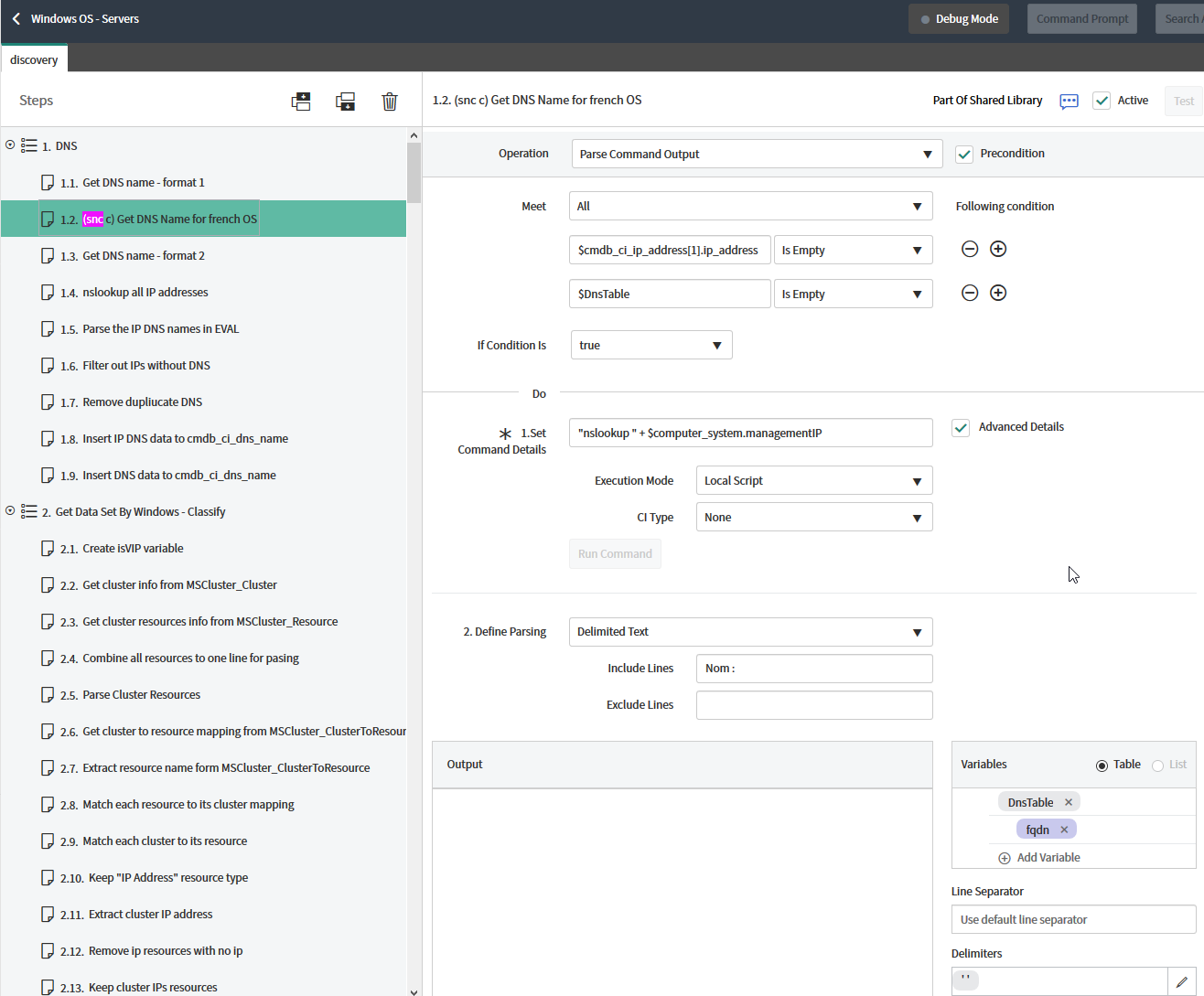

Modification 1: DNS library: nslookup command
- Addition of step 1.2 to parse french result, only if previous step failed
- Copy of step 1.1, with modifications
Modification 2: Get Data Set By Windows – Classify library: nbstat command
- Modification of step 2.43 to exclude lines containing noeud
- Addition of step 2.44 to parse french nbstat result in previous step failed
- Copy of step 2.43, with modifications
Modification 3: Get Data Set By Windows – Classify library: extraction of domain name
- Addition of step 2.48 to parse french results if previous step failed
- Copy of step 2.7, with modifications
var rtrn = '';var matches = /\s+(.*?)\s+(?:<.*>)\s+Groupe/.exec(${nbt_data[1].nbt_adapter_data});rtrn = matches?matches[1]:'';
Modification 4: Windows – Network library: Status of network interfaces
- Addition of step 21.4 to parse values Vrai/Faux instead of True/false
- Copy of step 21.3, with script modifications
EVAL(javascript: rtrn = "";var data = ${Win32_NetworkAdapterConfiguration[].DHCPEnabled};rtrn = data;if (data == "Vrai"){ rtrn = "true";}if (data == "Faux"){ rtrn = "false";})
EVAL(javascript: rtrn = "";var data = ${Win32_NetworkAdapterConfiguration[].IPEnabled};rtrn = data;if (data == "Vrai"){ rtrn = "true";}if (data == "Faux"){ rtrn = "false";})
Good luck !
