Servicenow Discovery Implementaion Requirement Gathering & Pre-requisites.



Are you strugging with Servicenow Discovery Requirements gathering and Pre-reqs ? Your wait is over you can now just use my template below which i used in my rescent discovery implementation and it helped me lot ! I had to refer lof of resources to gether this info for you in one place to make it easy for your implemenation... Make sure to Hit a like and bookmark this article for your furture references...

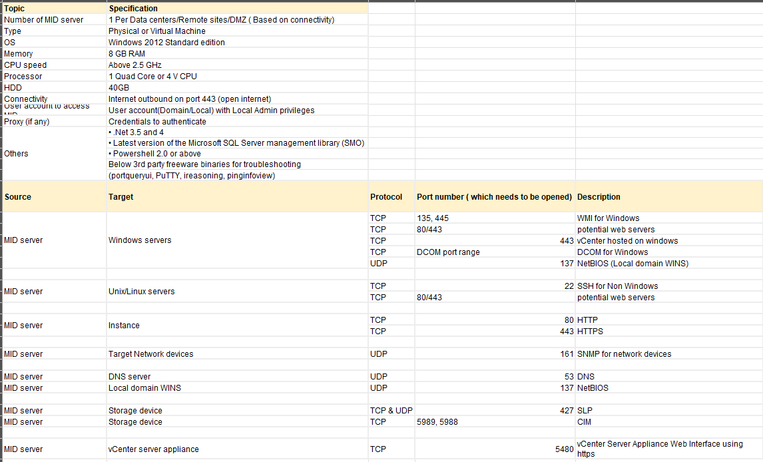

MID Server Requirement :

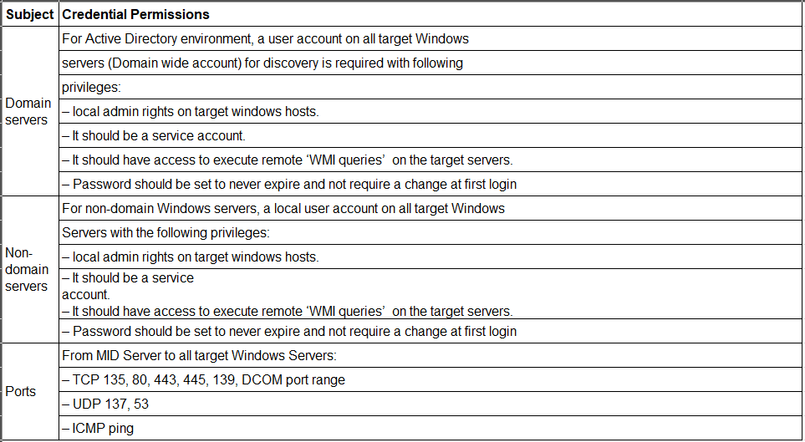

Windows Servers:

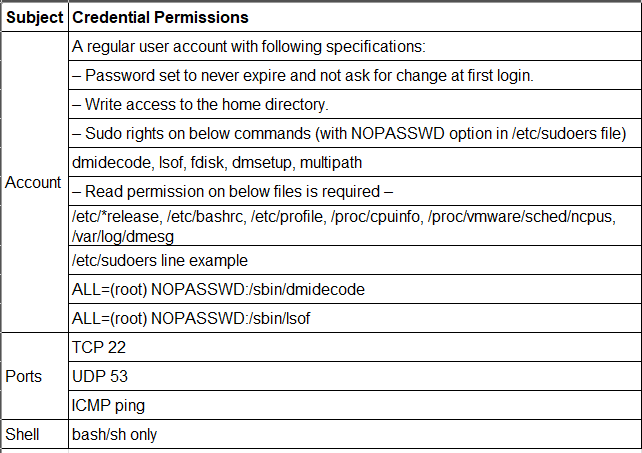

Linux Server:

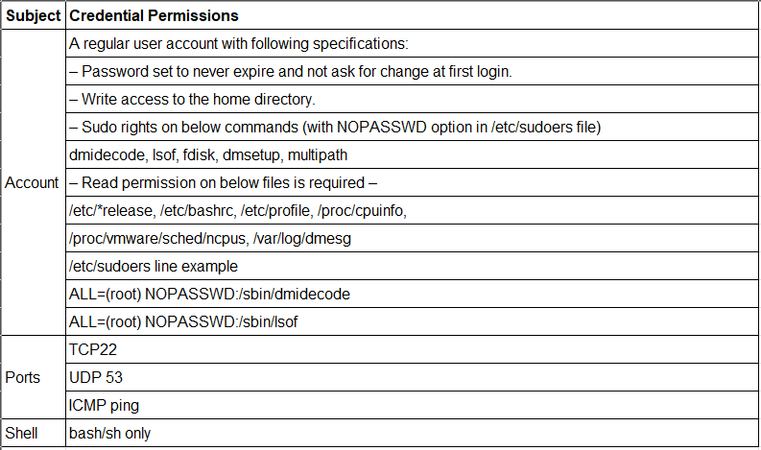

MAC:

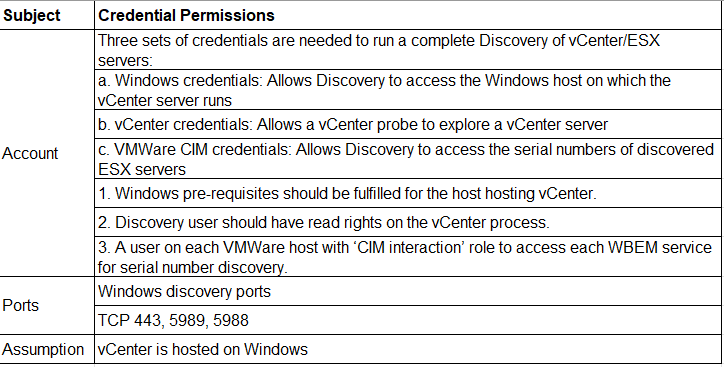

Vcenter/ EX / VM:

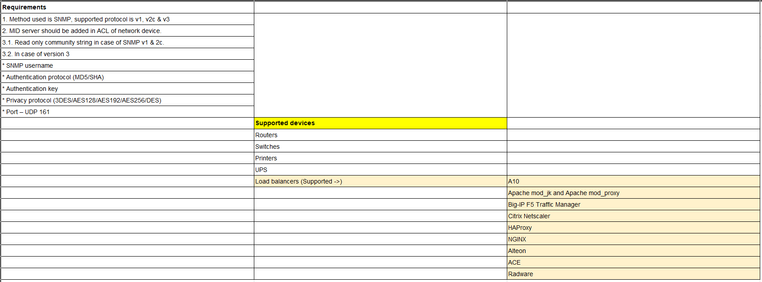

All Network Devices :

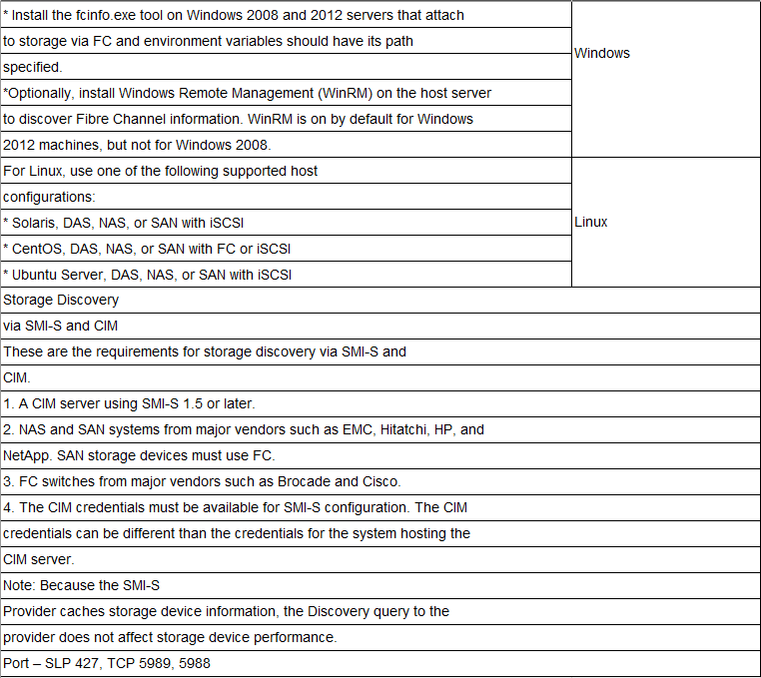

Storage Server Using SIMs: (HP 3PAR, NetAPP,Huwaie)

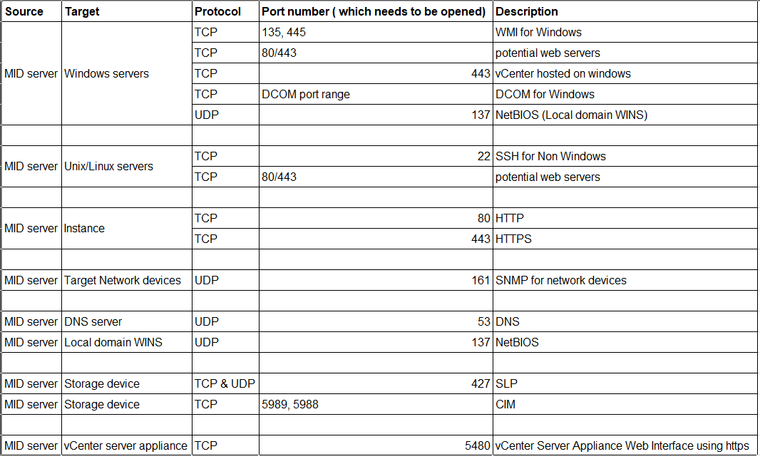

All Common Discovery Ports :




Discovery ports and protocols
Name Service name Port Details Creates Protocol
afp Apple File Protocol 548     TCP
BEA Weblogic   7001   cmdb_ci_app_server TCP
dns Domain Name Service 53 To resolve the name of each IP Address   TCP/UDP
epmap Microsoft RPC (WMI, DCOM) 135 Windows Systems   TCP
ftp   21     TCP
hp-pdl-datastr Printer PDL Data Stream 9100 HP Printers   TCP
http HyperText Transfer Protocol 80 Web Servers cmdb_ci_web_server TCP
https HyperText Transfer Protocol over Secure Socket 443 Secure Web Servers cmdb_ci_web_server TCP
IBM DB2   50000     TCP
IBM MQSeries   1414     TCP
IBM Websphere   9080     TCP
IBM Web sphere SSL   9443     TCP
IMAPS   993     TCP
pip (Internet Print Protocol) IP Phone/ Session Initiation Protocol 5060     TCP
LDAP   389     TCP
LDAPs   636     TCP
Microsoft netbios   139     TCP
Microsoft-ds   445     TCP
ms-nb-ns   137     UDP
Microsoft SQL server   1433     TCP
MySQL   3306     TCP
Nagios NRPE   5666     TCP
nfs   2049     TCP/UDP
Oracle TNS   1521     TCP
POP3   110     TCP
postgresql   5432   cmdb_ci_database TCP
printer Printer 515 Printers   TCP
sip SIP (Session Initiation Protocol) 5060     TCP
slp Service Location Protocol (SLP) 427     TCP/UDP
smtp TCP 25
smux (SNMP multiplexing)   199
snmp Simple Network Management Protocol 161 Network Devices   UDP
snmptrap   162     UDP
ssh Secure Shell Service 22 Unix Systems   TCP
sunrpc   111     TCP
telnet   23     TCP
TIBCO Rendezvous   7500     TCP
Tomcat HTTP   8080     TCP
vmapp6_https   9443     TCP
vmapp_https vCenter Server Appliance Web Interface using https 5480     TCP
wbem_https CIM-XML via HTTPS(WBEM) 5989 CIM Classification   TCP
wins Windows Internet Name Service 137 NetBIOS Name Resolver   UDP

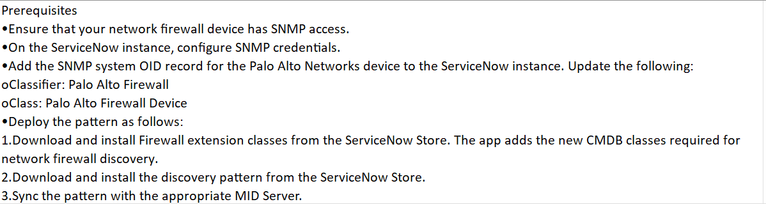

PaloAlto :
