VeloCloud VCE OIDs

[RRolling]

Hello Community,

I'm looking for knowledge on discovering our VeloCloud VCE router correctly. I have a SNMPv3 creational that validates on the IP when testing. Im running a quick discovery on a single IP at the moment but it returns "Active, couldn't classify, now finished".

Ive added a lot of different OIDs from the payload to try and help with classifying but it still ends the same way. What am I doing wrong?

[RRolling]

Doug,

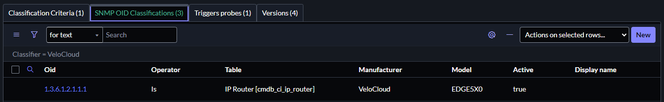

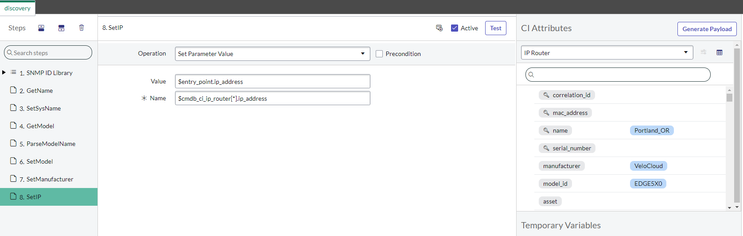

Thanks for the link. I followed your video on creating/mapping a pattern which seems to work in the Pattern Designer (see below) but during a quick discovery the IP still remains unclassified. Any tips for getting it to pull in?

[doug_schulze]

Again, because you are trying to use a oid query as a response value in your sysoid...

[RRolling]

I apologize for not comprehending this.

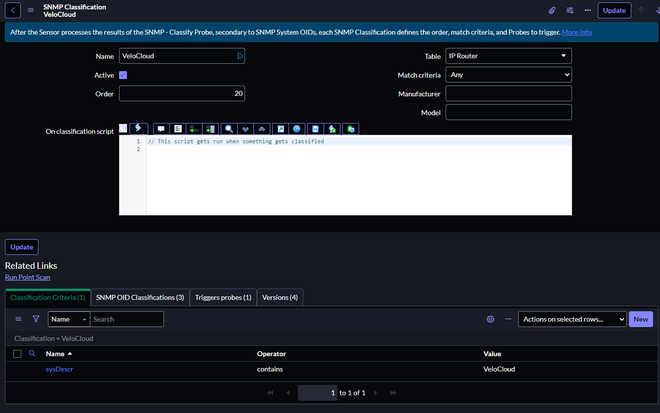

Am I to create a new SNMP Classification were the classification criteria is sysDescr contains VeloCloud and set the trigger probe to my newly created pattern?

Thanks again for being patient with me.

Robert

[doug_schulze]

Yes, you can try that, it should work.

[Spiros Antoniou]

Dear @RRolling  did you get the discovery working for the Velocloud SDWAN devices ?

How about the serial number , Routing rules , dependencies/relations to other devices/switches ?

like we have for the cisco switches ?

Probably we need to get the information from RestAPI calls to their element manager, that's my idea.

thank you in advance,

Spiros
