Hide Dependent Fields with UI Policies

jramirez1
Tera Expert

I have a select box field A with choices: x, y, z.

When the selected choice for field A is option "x", field B should be enabled and mandatory. Field B is a select box with choices: u, v, w.

When the selected choice for field B is option "w", field C should be enabled. If the selected choice for field A changes to "y" or "z", then fields B and C should be hidden.



I created one UI policy, #1, with "reverse if false" checked in, which validates when field A has a value of "x", then field B is set to mandatory "true" and visible "true".

After that, I have another UI policy, #2, with "reverse if false" checked in, which validates when field B has a value of "u", then field C is set to mandatory "true" and visible "true".



UI policy #1 is working as expected; however, UI policy #2 does not. When field A is "x" and field B is "w", then field C is mandatory and visible, but as soon as the field A value changes, field B gets hidden, and field C remains visible.

Can someone kindly advise on why this does not work? Is there a better approach for this requirement?



I have attached some screenshots of what I have.





1 ACCEPTED SOLUTION

jramirez1
Tera Expert

Thanks to everyone for your suggestions. They have been very helpful in achieving this requirement.



UI policy #1 was not well thought out because I was clearing the value of the B field only when the value of A was being set to X. Instead of this, what I needed was to clear this value when A was not X. By doing this, when I change the value of A to Y or Z, the value of B gets cleared out, which then triggers the second UI policy that hides C because B is no longer X.

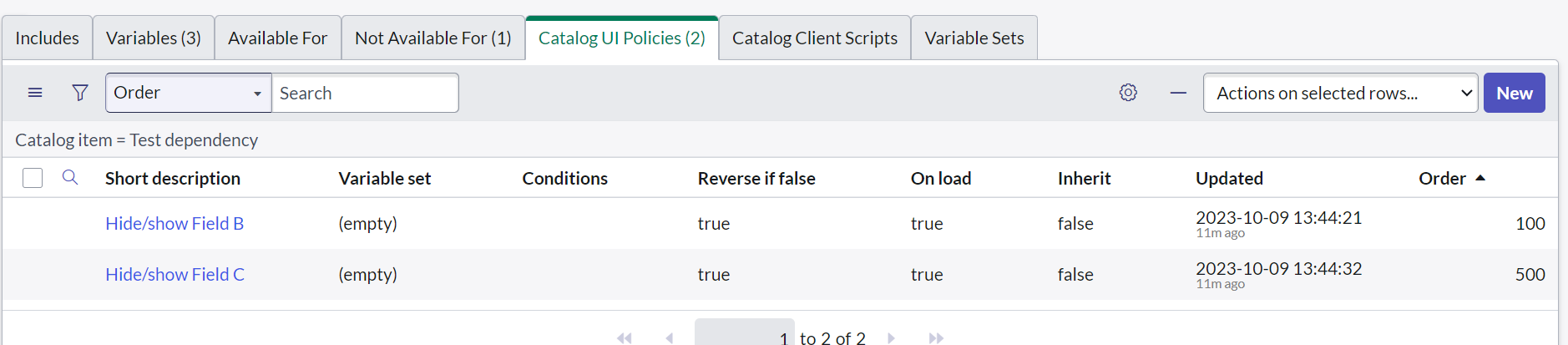

UI policy #1 - Hide/show Field B




UI policy #2 - Hide/show Field C




In catalog item

1)


2)




View solution in original post

4 REPLIES 4

SHARANsnow7
Tera Guru

Hii @jramirez1

It seems like the issue is with the order of your UI policies. When you change the value of field A, UI policy #1 is triggered and hides field B, but UI policy #2 is not triggered to hide field C because its condition is based on the value of field B, which is now hidden and therefore not evaluated.

Vengateshwaran
Mega Guru

Hi @jramirez1 ,

You can achieve your requirement by writing 2 on-change client scripts. I have attached the code screenshot below refer to it.



Visibility of B.png





Visibility of C.png





 Help others to find a correct solution by marking the appropriate response as correct answer and helpful.

Vengateshwaran
Mega Guru

Hi @jramirez1 ,

I have made some changes to the UI-policy. I have attached the screenshot below.









Help others to find a correct solution by marking the appropriate response as correct answer and helpful.







jramirez1
Tera Expert

Thanks to everyone for your suggestions. They have been very helpful in achieving this requirement.



UI policy #1 was not well thought out because I was clearing the value of the B field only when the value of A was being set to X. Instead of this, what I needed was to clear this value when A was not X. By doing this, when I change the value of A to Y or Z, the value of B gets cleared out, which then triggers the second UI policy that hides C because B is no longer X.





UI policy #1 - Hide/show Field B




UI policy #2 - Hide/show Field C




In catalog item

1)


2)
