How to create custom intra active filter

[lucky24]

Hi Team,

I have created a dashboard and reports on the user table and I want to add interactive filters for the name field on the user table but there is no interactive field for the string type field.

I need to create a custom interactive filter for the name field on the user table so we can search any record from the user name.

I  want to include the condition active is true

I am not sure how to write code can someone help me?

Thanks

[Dr Atul G- LNG]

Hi @lucky24

Might be helpful

https://www.process.st/how-to/add-interactive-filters-in-servicenow-dashboard/

[Unique45]

Hello @lucky24 ,

-Create dynamic content and add following code :

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">
  <div class="row" style="margin-left:10px; margin-right:10px">
	<div class="col-md-3"  style='width:330px'>
		<p style="font-size:15px"><b>User Name</b></p>
		<input id='user_name' type = "text" onchange='filterUser()' ></input>
	</div>
	</div>
   <script>
     var dbh = new DashboardMessageHandler("filter_tasktype");
     function filterUser(){
        var userName = $j('#user_name').val();
		var filter_message = {};
         filter_message.id = "taskFilter"
         filter_message.table = "sys_user"

        if ((userName != '' )) {
            filter_message.filter = "name="+userName;
            SNC.canvas.interactiveFilters.setDefaultValue({
                id: filter_message.id,
                filters: [filter_message]
            }, false);
         dbh.publishFilter(filter_message.table, filter_message.filter);
        }
	else {
        filter_message.filter = "";
            SNC.canvas.interactiveFilters.setDefaultValue({
                id: filter_message.id,
                filters: [filter_message]
            }, false);
            dbh.removeFilter();
        }
     }
</script>
</j:jelly>

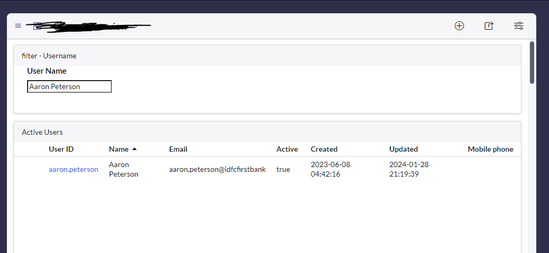

 -In the dashboard, it will look like this:

 If you have any questions, please let me know.

[lucky24]

Hi @Unique45

Thanks for the reply I tried with your suggestion and It's working fine.

If I want to add contain in the user name condition where do I need to change in the above code

For example - If I write 3 words in the name it should show all names that include these 3 words,
Can I do like this?

Thanks

[Unique45 · Accepted solution]

@lucky24

Add Following code:

<?xml version="1.0" encoding="utf-8" ?>
<j:jelly trim="false" xmlns:j="jelly:core" xmlns:g="glide" xmlns:j2="null" xmlns:g2="null">
 <div class="row" style="margin-left:10px; margin-right:10px">
	<div class="col-md-3"  style='width:330px'>
		<p style="font-size:15px"><b>User Name</b></p>
		<input id='user_name' type = "text" onchange='filterUser()' ></input>
	</div>
	</div>
   <script>
     var dbh = new DashboardMessageHandler("filter_tasktype");
     function filterUser(){
        var userName = $j('#user_name').val();
		var filter_message = {};
         filter_message.id = "taskFilter"
         filter_message.table = "sys_user"

        if ((userName != '' )) {
            filter_message.filter = "nameLIKE"+userName;
            SNC.canvas.interactiveFilters.setDefaultValue({
                id: filter_message.id,
                filters: [filter_message]
            }, false);
         dbh.publishFilter(filter_message.table, filter_message.filter);
        }
   else {
        filter_message.filter = "";
            SNC.canvas.interactiveFilters.setDefaultValue({
                id: filter_message.id,
                filters: [filter_message]
            }, false);
            dbh.removeFilter();
        }
     }
</script>
</j:jelly>
