html editor tool missing some options on knolwedge article

IceIronDragon
Tera Guru

Hi ALl,

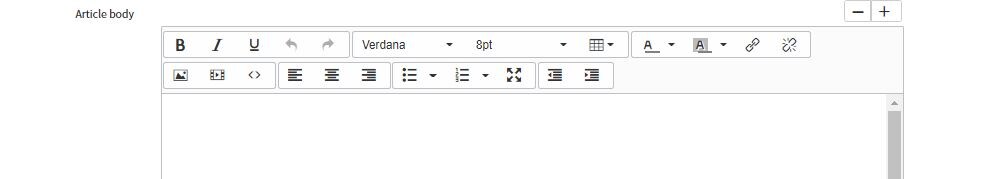

we have a situation where in the HTML tool editor options on the knowledge article have gone missing and are not consistent.

Kindly take a look at it below :




1 ACCEPTED SOLUTION

Hi @IceIronDragon

What do you mean by configure the HTML here? It's an OOB field type.

There are attributes for HTML field type which can be configured by Right click on the field and then select Configure-Dictionary .

If some attributes are missing then you need to add in here as shown below:



Also attaching the attributes for HTML Field type on knowledge and you can add these in the Red box shown above:

editor.height=300,editor.plugins=table colorpicker textcolor link image media codemirror lists advlist fullscreen charmap directionality emoticons hr insertdatetime nonbreaking pagebreak print searchreplace wordcount anchor toc codesample visualblocks visualchars compat3x autolink align_listitems,editor.toolbar=fontselect fontsizeselect | bold italic underline strikethrough forecolor backcolor pastetext removeformat |  formatselect  searchreplace undo redo |  bullist numlist outdent indent alignleft aligncenter alignright | toc table  link unlink  image media codesample | code fullscreen,encode_utf8=false,serializer=com.glide.script.TranslatedTextXMLSerializer

If still something is missing then please check if there are any on Load client script written doing some DOM manipulation here which might be hiding stuff on your knowledge form.

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

View solution in original post

4 REPLIES 4

ccajohnson
Kilo Sage

Without knowing what you expect it is difficult to answer. From what I recall, there may be some system preferences that allow you to show/hide the toolboxes in an HTML field. Unclear if they are specific to different applications (Incident vs. Knowledge), but it may be related to upgrades, or expectations of users who may be used to one toolbox layout vs. another.

where can i configure the html tool on knowledge ?

Hi @IceIronDragon

What do you mean by configure the HTML here? It's an OOB field type.

There are attributes for HTML field type which can be configured by Right click on the field and then select Configure-Dictionary .

If some attributes are missing then you need to add in here as shown below:



Also attaching the attributes for HTML Field type on knowledge and you can add these in the Red box shown above:

editor.height=300,editor.plugins=table colorpicker textcolor link image media codemirror lists advlist fullscreen charmap directionality emoticons hr insertdatetime nonbreaking pagebreak print searchreplace wordcount anchor toc codesample visualblocks visualchars compat3x autolink align_listitems,editor.toolbar=fontselect fontsizeselect | bold italic underline strikethrough forecolor backcolor pastetext removeformat |  formatselect  searchreplace undo redo |  bullist numlist outdent indent alignleft aligncenter alignright | toc table  link unlink  image media codesample | code fullscreen,encode_utf8=false,serializer=com.glide.script.TranslatedTextXMLSerializer

If still something is missing then please check if there are any on Load client script written doing some DOM manipulation here which might be hiding stuff on your knowledge form.

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

Community Alums
Not applicable

Hope the following doc would help you

https://docs.servicenow.com/bundle/sandiego-platform-administration/page/administer/form-administration/task/t_ConfigTinyMCEHTMLFieldEditor.html
