In the catalog item i want to Auto populate the location from location table

kranthi2
Tera Expert

Hi,

In the Catalog item form  I want to Auto populate the location from location table if i select location then Street address will be auto populated.

Thanks,







Please help me out on the same.



Thanks,













1 ACCEPTED SOLUTION

Navigate to Service Catalog -> Maintain Items

Open the catalog item

Go to the Catalog data lookup definition related list and create new catalog data lookup definition




Select your catalog item and location as the matcher table


Go to Catalog matcher variable definition related list and create new


Select source variable name and sys_id as matcher table field


Go to catalog setter variable definition related list and create new


Select source variable name and street as matcher table field








View solution in original post

4 REPLIES 4

Shruti
Mega Sage
Mega Sage

Hi

You can use catalog data look up definitions









Could you please elaborate more into this.

Thanks,

Navigate to Service Catalog -> Maintain Items

Open the catalog item

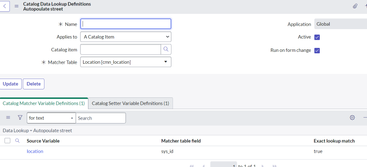

Go to the Catalog data lookup definition related list and create new catalog data lookup definition




Select your catalog item and location as the matcher table


Go to Catalog matcher variable definition related list and create new


Select source variable name and sys_id as matcher table field


Go to catalog setter variable definition related list and create new


Select source variable name and street as matcher table field








Dr Atul G- LNG
Tera Patron
Tera Patron

Hi @kranthi2



As you accepted the solution and it is new for me 🙂 , but if i am not wrong you can use Auto populate method as well.

Create 2 variable

- Location ( Refence to Location Table)

- Street - Single line text

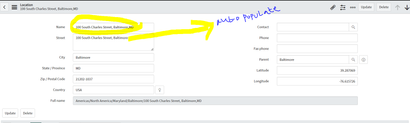

Go to Auto populate tab. and do dot walk to street.












*************************************************************************************************************
