Metrics Related List is only on INC records, how to add to other record types?

[Mike Beardsley]

I have tried many different things to have the Metrics Related List available on different record types, requested items specifically, and also a custom built ADHOC table.

1. I've looked at the Metrics relationship and everything looks good there. The relationship is configured as follows (nothing is in the Insert Callback field):

2. The metric_instance table is accessible from all application scopes, so I think that is good.

3. On the Related List table, I navigate to the Incident - Metrics entry. In that record is a Related List Entry shown below. I have not been able to figure out what that sysid is on the related list entry. I believe this is where I'm getting help up on having this list show up on other forms.

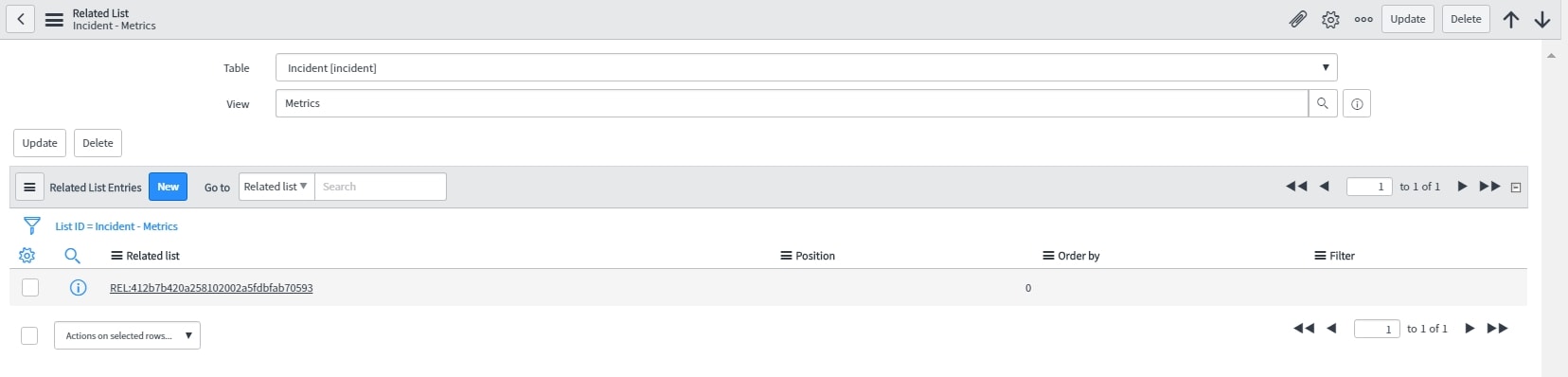

I have tried replicating this Related List Entry for the desired tables but it does not work with that same sysid, REL:412b7b420a258102002a5fdbfab70593, and because I don't what the sysid is actually for I can't fully replicate it. Screen shot of the Related List Entry is below.

Any help on this would be greatly appreciated!

[shruti_tyagi · Accepted solution]

Hi Michael,

This id is a sys_id of the record in relationship (sys_relationship) table, in this case its pointing to Metrics relationship. I think the table that has record in Metric Definition table will have Metrics in Related List.

In your first screenshot, Apply to script is:

var gr = new GlideRecord('metric_definition');

gr.addQuery('table', table_name);

gr.addActiveQuery();

gr.query();

answer = gr.hasNext();

Which means Metrics relationship will be available for any tables that has record in metric_definition table. The table you are trying to get Metrics on, did you checked if that table has any record in metric_definition table.

I just tested it by creating one record for Requested Item in metric_definition table and Metrics is available as Related list in sc_req_item table now.

Hope this helps.
