Need to split check boxes into two columns

[anatara]

Hi All,

I have to create a variable with 8 choices in the type of check boxes. I used container start,split and end but still im not meeting my requirement. After split variable.Option default Label is visible in the top of choice list.I need to remove on this default Option Labels.

Please help me.... Thanks in advance...

[nicksoltis]

I have tried this with the Variable Set method and I am still seeing the same results. I am working in London Version. Has anyone gotten this to work in London?

[xiaix]

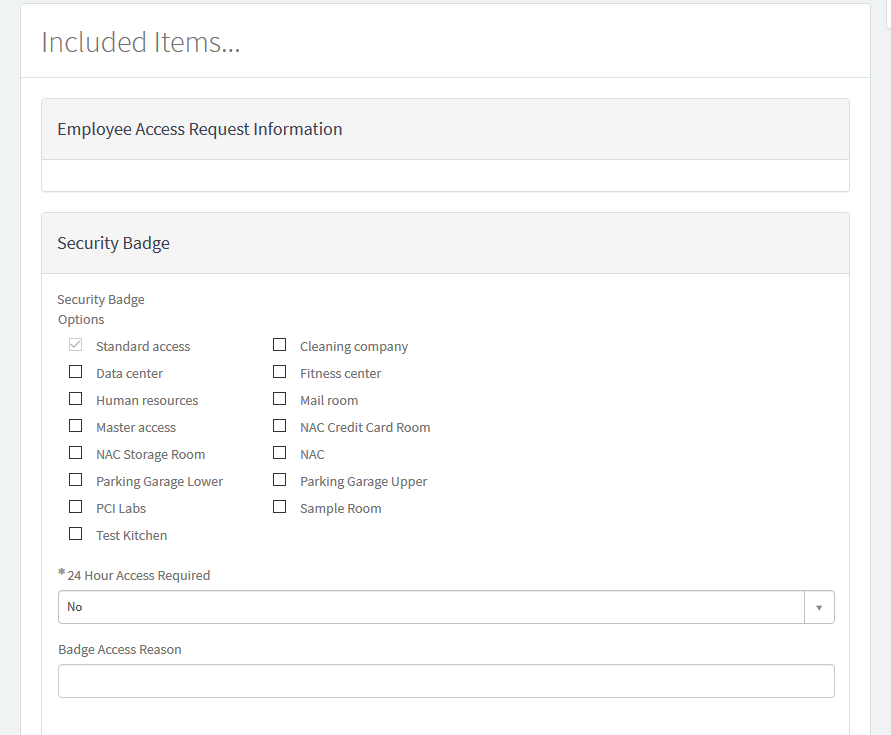

I got mine to work in Madrid:

All I had to do was a little DOM manipulation via creating a widget:

CLIENT SCRIPT:

function($scope, $timeout) {
	var counter = 0;
	var fnd = false;
	$scope.f_init = function() {
		if (++counter >= 100) {
			console.warn("counter limit reached");
			return;
		}
		$timeout(function() {
			var div = document.getElementById('accessOption_standardAccess').parentNode;
			if (div) {
				if (div.getAttribute('ng-repeat') == 'column in container.columns') {
					var tbl = document.createElement('table');
					fnd = true;
					var i = 0;
					var container = [];
					for (i = 0; i < div.children.length; i++) {
						if (div.children[i].nodeName == "DIV") {
							container.push(div.children[i]);
						}
					}
					for (i = 0; i < container.length; i++) {
						if (i % 2 === 0) {
							var tr = document.createElement('tr');
							var td1 = document.createElement('td');
							var td2 = document.createElement('td');
							td1.style.paddingLeft = "10px";
							td2.style.paddingLeft = "50px";
							tr.appendChild(td1);
							tr.appendChild(td2);
							tbl.appendChild(tr);
							td1.appendChild(container[i]);
							if (container[i+1])
								td2.appendChild(container[i+1]);
						}
					}
					div.appendChild(tbl);
				}
			}
			if (!fnd) {
				$scope.f_init();
			}
		}, 100);
	};
}

HTML:

<span ng-init="f_init()"></span>

[Paul Dowsett]

Hi Nick,

I am trying to do exactly what you are.  Did you managed to find a solution?
