can any one please explain how remote file import module is woorking to get the file into snow through the midserver

asma5
Kilo Explorer

IN remote file import module got script includes and how 2 script includes are communicated and how the data is moving to the target table can anyone explaij

5 REPLIES 5

shloke04
Kilo Patron

Hi,



For this, Scheduled Import Set functionality is mostly used where you define the frequency of Import and other conditions when the Import should happen. Along with this , Data Source also needs to be defined where in the Data Source, we need to define the MID Server and Import Set table details, path and type of the file which needs to be imported.



Please go through the below link for more details:



https://docs.servicenow.com/bundle/geneva-servicenow-platform/page/administer/import_sets/task/t_Sch...



https://www.servicenowguru.com/integration/scheduled-file-import-mid-server/





Hope this help. Please mark the answer as helpful/correct based on impact.



Regards,

Shloke

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

asma5
Kilo Explorer

Hi shloke,

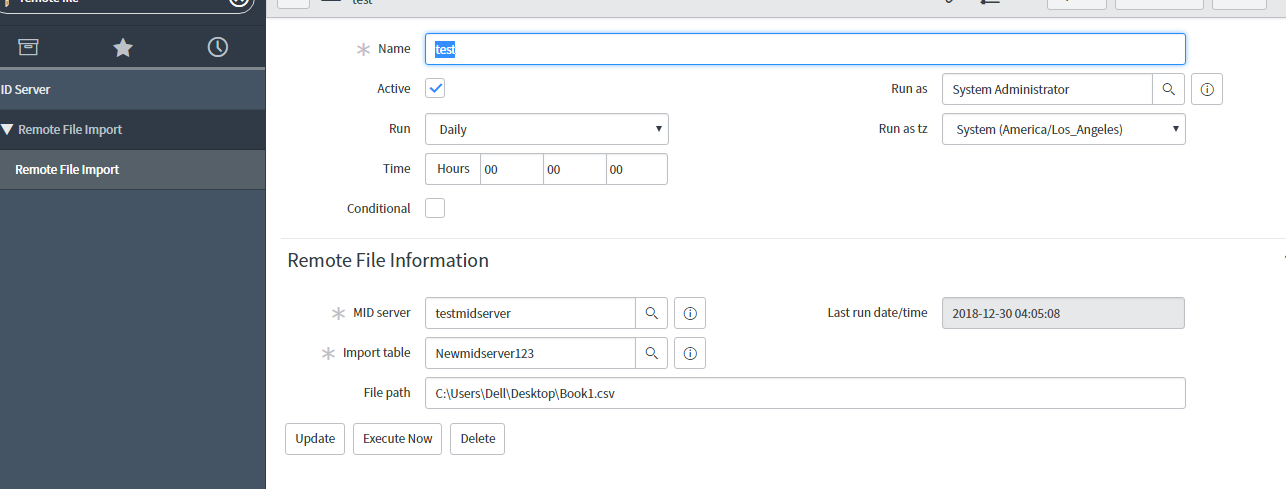

I have created the the import set table and gave file path, and midserver details.



I got the output in target table.



but could you please explain me the complete process how it is working through the script include.

or it is directly importing to the target table?



and please find the attached sheets







script include for midserver





var CSMIDServerRemoteFileImport = Class.create();

CSMIDServerRemoteFileImport.prototype = {
initialize: function() {
/*
// Originally created by Marcus Fly (marcus.fly@cloudsherpas.com) and Valor Poland (valor.poland@cloudsherpas.com)
// Refactored by Martin Wood (martin.wood@servicenow.com).
*/
// this.debug = probe.getParameter("debug");
this.debug = true;
this.logMsg("Starting MID Server File Transfer");
this.charset = "UTF-8";
this.LINE_FEED = "\r\n";


this.boundary = "===" + new Date().getTime() + "===";
this.probeParameters = this._getProbeParameters();
},

getRemoteFileAndUploadToInstance: function() {
var url = this._getInstanceConnectionURL();
var conn = this._getURLConnection(url);
var file = this._getFile();
var response = this._writeFile(conn, file);
if (response != 200)
throw "HTTP response " + response;
this.logMsg("HTTP response " + response, "debug");

ms.log("Completed MID Server File Transfer");
return response;
},

_getProbeParameters: function() {
var probeObj = {};
probeObj.instance = probe.getParameter("instance");
probeObj.instanceUser = ms.getConfigParameter("mid.instance.username");


probeObj.instancePassword = ms.getConfigParameter("mid.instance.password");


probeObj.filePath = probe.getParameter("filePath");
probeObj.targetImportSet = probe.getParameter("targetImportSet");
return probeObj;
},

_getInstanceConnectionURL: function() {
return this._joinParams(this.probeParameters.instance + "sys_import.do", [
this._encodeParam('sysparm_import_set_tablename', this.probeParameters.targetImportSet),
this._encodeParam('sysparm_transform_after_load', 'true')
]);
},

_encodeParam: function (k, v) {
return k + "=" + Packages.java.net.URLEncoder.encode(v);
},

_joinParams: function (base, arr) {
return base + '?' + arr.join('&');
},
_getURLConnection: function(url) {
if (ms.getConfigParameter("mid.proxy.use_proxy") == 'true') {
Packages.java.lang.System.setProperty("https.proxyHost", ms.getConfigParameter("mid.proxy.host"));
Packages.java.lang.System.setProperty("http.proxyHost", ms.getConfigParameter("mid.proxy.host"));
Packages.java.lang.System.setProperty("https.proxyPort", ms.getConfigParameter("mid.proxy.port"));
Packages.java.lang.System.setProperty("http.proxyPort", ms.getConfigParameter("mid.proxy.port"));
}
var conn = new Packages.java.net.URL(url).openConnection();
this.logMsg("Sending to : " + url, "debug");

var userpass = new Packages.java.lang.String(this.probeParameters.instanceUser + ":" + this.probeParameters.instancePassword);
var basicAuth = "Basic " + (new Packages.javax.xml.bind.DatatypeConverter.printBase64Binary(userpass.getBytes()) + '');
conn.setRequestProperty("Authorization", basicAuth);
conn.setDoOutput(true);
conn.setRequestMethod("POST");
conn.setUseCaches(false);

conn.setRequestProperty("Content-Type", "multipart/form-data; boundary=" + this.boundary);
conn.setRequestProperty("User-Agent", "MID Server POST");

return conn;

},

_getFile: function() {
return new Packages.java.io.File(this.probeParameters.filePath);
},

_writeFile: function(conn, uploadFile) {

var outputStream = conn.getOutputStream();
var writer = new Packages.java.io.PrintWriter(new Packages.java.io.OutputStreamWriter(outputStream, this.charset), true);
var fieldName = 'file';
var fileName = uploadFile.getName();

this.logMsg("Sending file : " + fileName, "debug");

writer.append("--" + this.boundary).append(this.LINE_FEED);
writer.append("Content-Disposition: form-data; name=\"" + fieldName + "\"; filename=\"" + fileName + "\"").append(this.LINE_FEED);
writer.append("Content-Type: " + Packages.java.net.URLConnection.guessContentTypeFromName(fileName)).append(this.LINE_FEED);
writer.append("Content-Transfer-Encoding: binary").append(this.LINE_FEED);
writer.append(this.LINE_FEED).flush();

this._writeFileData(uploadFile, outputStream);

writer.append(this.LINE_FEED).flush();
writer.append(this.LINE_FEED).flush();
writer.append("--" + this.boundary + "--").append(this.LINE_FEED);
writer.close();
return conn.getResponseCode();
},


_writeFileData: function(uploadFile, outputStream) {
var inputStream = new Packages.java.io.FileInputStream(uploadFile);

var data = new Packages.java.lang.reflect.Array.newInstance(Packages.java.lang.Byte.TYPE, 4096);
var bytesRead = 0;
while ((bytesRead = inputStream.read(data)) != -1) {
outputStream.write(data, 0, bytesRead);
outputStream.flush();
}
inputStream.close();
},


logMsg: function(message, logType) {
logType = logType || 'info';
var prefixStr = "*** MID Server Remote File";
if (logType == 'info' || logType == 'error') {
ms.log(prefixStr + " " + logType.toUpperCase() + "*** " + message);
}
if (this.debug && logType == 'debug') {
ms.log(" DEBUG *** " + message);
}
},

type: 'CSMIDServerRemoteFileImport'
};

Where is this Script Include written? Can you share the screenshots would be easy to help.



Regards,

Shloke

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

asma5
Kilo Explorer

could you please go through this update set so that u can see the script include in this.



https://developer.servicenow.com/app.do#!/share/contents/2271821_remote_file_importer_import_files_from_a_mid_server?v=1&t=PRODUCT_DETAILS
