Playbooks are a fantastic toolset available within ServiceNow. It provides the process owners the ability to provide fulfillers written guidance, walking the fulfiller through complicated processes from start to finish improving customer experience & task resolution.
What is Arbitrary Data?
Arbitrary data is information that is relevant to the Playbook, but does not need to be stored in a table like an incident or case. This data when ingested is instead stored on the table sys_flow_data for use in the current flow or playbook.
When to use Arbitrary Data?
Arbitrary Data comes in to play in the following scenarios:
- Data needs to be collected for re-use later in the playbook:
-
- Team A performs an activity, the playbook is assigned to Team B for completion where the data is important for task completion, but not required for storage
- Downstream playbook activities should only be triggered with certain conditions, but the data for that activity does not require storage
In this post we will cover how to build an Activity Definition using arbitrary data to meet the criteria above
Activity Components
Activities consist of 3 units of configuration to enable their use on playbooks which are:
- Data definition
- Subflow
- Activity Definition
Once defined the activity can be added to the playbook in Process Automation Designer(PAD). Once added the activity can then be referred to as an 'Activity Instance'. This is because once an Activity has been placed a snapshot of it is taken. To apply further updates the Activity Instance must be removed and the Activity re-added.
Building an Activity Definition with Arbitrary Data
This article assumes you have an understanding of building a Playbook in Process Automation Designer. Information on building a Playbook can be found here. I find the related article on Lanes and Activities particularly helpful when structuring your process within PAD.
To build an Activity which leverages arbitrary data, 3 items will be configured;
Data Definition
A data definition needs to be created on the table sys_flow_data_definition. Open the table and create a new record. Once saved a related list named 'Flow Data Variables' will show similar to the variables while creating a catalog item, use this to create the variables requiring user input.
Setting mandatory here is possible by personalising the relate list and adding the mandatory column.
Subflow
The subflow will determine the behaviour of the activity, determining which data definition to use and the inputs & outputs required. Defining these in the subflow will provide:
Inputs
For Inputs we define the following:
- ServiceNow recommends setting the Assignment Group and Assigned To. This allows greater control over who can update the Playbook activity when active.
- Enhanced automation and display options such as waiting for user input, or displaying the outputs of precursory Playbook activity in the message of the current activity.
- Inputs defined will allow the flow to receive data dynamicallly from the playbook, using the pill picker. This will be covered at the end. For now ensure that the following is defined as a minimum
Outputs
- Allows use of data in subsequent Playbook activities as condition triggers or to be displayed in messages
- Select boxes should have their choices defined in the subflow as well to prevent interface difficulties when using the activity in a Playbook
Subflow
- Which data definition will be displayed to the user for capture of variables. Data definitions captured via an active playbook will be visible in the table sys_flow_data
Building the subflow
- Open flow designer and create a subflow
- Define the subflow inputs & outputs
- Define the following activities:
-
- Action - Create Flow Data
-
- Set the Data Definition to the one you created
- Set 'Wait for user input' to No. We do not want the activity to pause before it loads the variables for the user
- Set the Assigned To & Assignment Group to the previously defined inputs
- Action - Wait for Condition
-
- This will tell the flow to pause until the user has submitted the Playbook activity
- Set the wait for condition to use the record created by the first action on the subflow
- Set the conditions to wait for the record state to 'Complete'
- Flow Logic - Assign Subflow Outputs
-
- For each output required assign a scripted subflow output where the script sets the field created on table sys_flow_data to the subflow output, using the code: return fd_data._1__create_flow_data.record.vars["data_definition_variable_name"];
- By also defining an output called 'Record', trigger conditions in subsequent Playbook activities can be defined on the records state
Activity Definition
The Activity Definition is built to allow process owners to leverage the configuration in Process Automation Designer. We can use a shortcut here to help expedite its creation by finding a similar activity.
Activity Creation
- In Process Automation > Activity Definitions either create a new activity or duplicate an existing activity.
- Set the Description, this field determines the information displayed to the process owner in PAD and leverages HTML
Tab: Automation Plan
- In Automation Plan set the flow to the subflow previously created and save the records.
-
- New fields will now display, these are the subflow inputs and can be set here or left blank as they will be available in PAD.
- In the related list add the required playbook actions. If this is not entered the playbook activity will not correctly render the fields defined in the Data Definition
Tab: Activity Experience

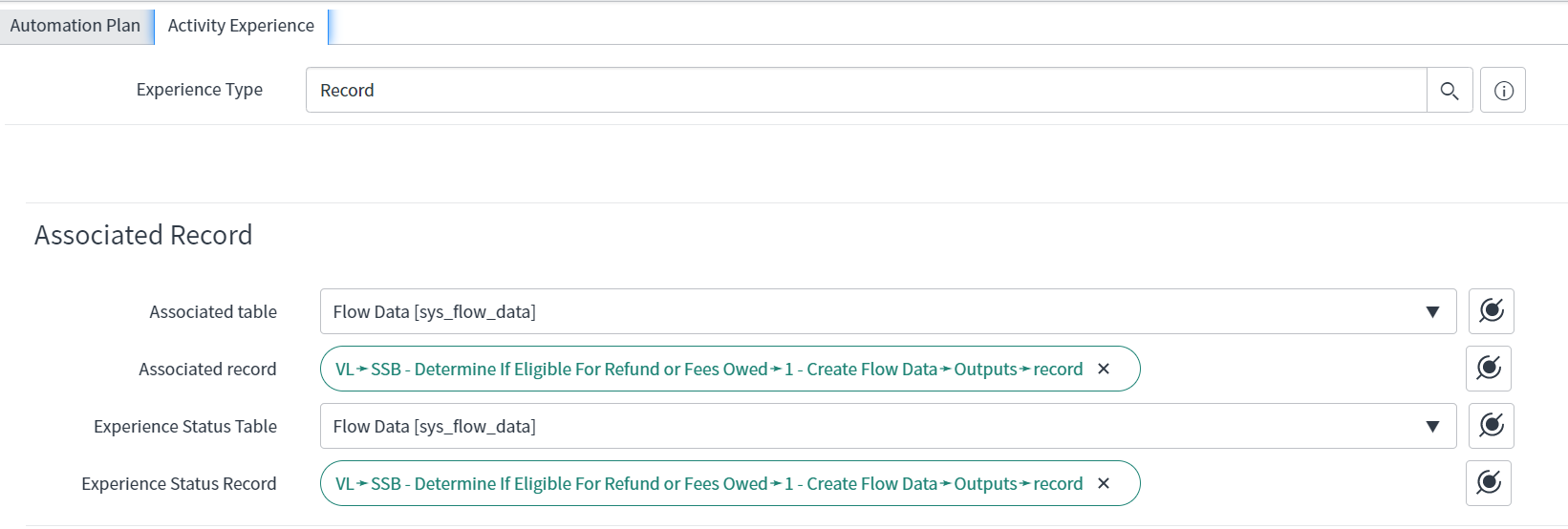

- Set the experience type to an existing one or create a new experience type. This determines several of the options available in Activity Experience. To start off use the out of the box experience type: Record
- In Associated record the behaviour of the playbook activity is defined. This defines the record in use and allows PAD visibility of an active playbook activities completion
- Locate the description field and using the data pill picker set it to use the subflow input 'Message'
- Set details as required. The field 'Form View' if used directly references a view defined on the corresponding sys_flow_data, or if a different associated record was defined a view on the table in use.
Input Display Preferences
Input Display Preferences must be defined when using inputs such as message. This field can be added to the form but there is currently a Client Script for validation which has a habit of removing inputs on custom activities. The client script could be turned off but to prevent customisation yet enable the feature:
- Navigate back to list view and personalise, adding the field Input Display Preferences
- Add the data 'message=standard;'
The Activity Definition is now complete! It is now ready for use in Process Automation Designer. If you already have PAD open the page will need to be refreshed.
Result

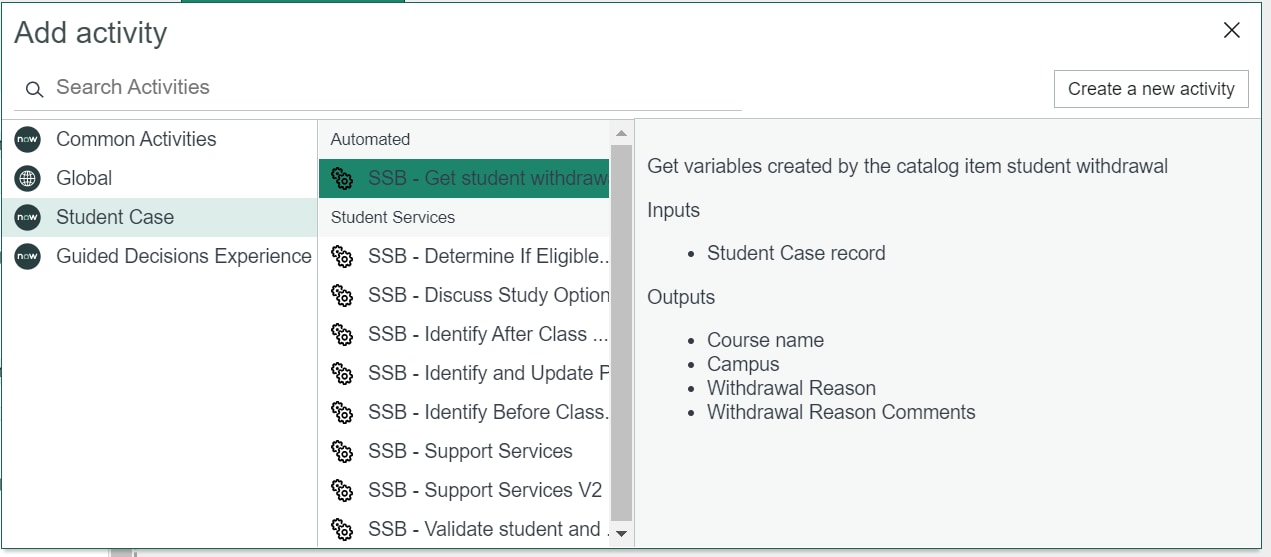

By defining the description the activities can provide information for Process Owners when building their playbooks
By placing the activity in PAD an instance of the activity has been created.
Configure the Activity Instance and adjust options on the definition which are also available, adjustments can be considered an override which do not change the source Activity Definition.
By defining the Assignment Group and Assigned To here, the process owner has greater control over who is able to complete the activities which is especially useful when a task has been re-assigned during the process.
Set the message here. Using the data pill picker we can see outputs from previous activities and use them in the text displayed on the Playbook Activity. The same outputs can also be referenced when defining Activity Instance Trigger Conditions.
Complete building your process as required. As the message has been defined as an input you will only need additional Activity Definitions when different variables are required, or alternate subflow behaviour.
By defining these you will provide your fulfillers with a playbook which:
- Leverages flow logic enabled by the outputs of previous activities
- Is able to display outputs of previous activities in a playbook activity text, reducing the need to look at historical activities
- Does not unnecessarily store data in custom tables
Credits:
Personally I'd like to thank Jonathan Jones and Yaron Guez from ServiceNow who provided key knowledge, allowing my team and I to leverage Playbooks using variables as opposed to tables.
