Tables and Reference Field

Phani Pasupulet
Tera Contributor

for suppose



I have a table1 with 2 fileds
->tablet Name

->count



I have another table (table 2) with one field
Tablet name (reference fiels) here  I want to select the tablet name from the list of tablets stored in the table 1

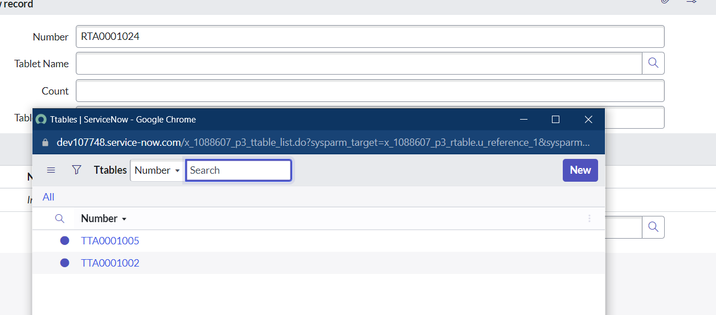

my problem is I am getting auto numbers instead of tablet list











Can Any one help me please

Thanks in advance

3 REPLIES 3

Dr Atul G- LNG
Tera Patron
Tera Patron

Hi @Phani Pasupulet



Seems you have only 1 field in another table so it display only one. Try to add 1 more field and try.



Please mark this response as correct or helpful or the solution accepted if it assisted you with your question.

Regards
Atul G.
Learn N Grow With Atul G

*************************************************************************************************************
If my response proves useful, please indicate its helpfulness by selecting " Accept as Solution" and " Helpful." This action benefits both the community and me.

Regards
Dr. Atul G. - Learn N Grow Together
ServiceNow Techno - Functional Trainer
LinkedIn: https://www.linkedin.com/in/dratulgrover
YouTube: https://www.youtube.com/@LearnNGrowTogetherwithAtulG
Topmate: https://topmate.io/atul_grover_lng [ Connect for 1-1 Session]

****************************************************************************************************************

Aman Kumar S
Kilo Patron

Hi @Phani Pasupulet ,

You can't make table name field as display ince its a reference field and display value has to be a string field.
Instead you can bring the table name field column in the list layout so user can see the column and make correct selection.



You can change the list layout behavior by:

Procedure

  1. Navigate to System UI > Views.

  2. Search for name = sys_ref_list and open the record.

  3. Select the Lists related list.

  4. Search for the table for which you want to change the view and open the record.

    This is the table you are referencing.

    Once you open the record, you will see a related list called List Elements. This related list shows the columns that will be displayed on the pop-up view for the reference field.

  5. Modify the List layout by either deleting columns or adding new ones by clicking New

    If you are creating a new column, you can use the same format as one of the other columns on the view. For example:


    • Element: Column name
    • Position: Position you want this column to be in relation to the rest
    • List ID: Table

Ref link:

https://support.servicenow.com/kb?id=kb_article_view&sysparm_article=KB0686318

Best Regards
Aman Kumar

ritu_saluja
Tera Expert

Hello @Phani Pasupulet
Please refer to this article.

https://support.servicenow.com/kb?id=kb_article_view&sysparm_article=KB0721311

Please mark my answer correct and helpful if it helps you.
