Vulnerability Management (PA) dashboard

Track the volume, performance and progress of vulnerabilities from initial analysis and detection to containment, or remediation. You can filter reports by assignment group, exploits, risk rating, or state, for example. Quickly gain insight into your vulnerability exposure and which business services are affected.

Required ServiceNow AI Platform roles

Role required: sn_vul.vulnerability_admin, sn_vul.vulnerability_analyst, and users with sn_vul.vulnerability_read (or who inherit the sn_vul.vulnerability_read role), and pa_viewer.

Use cases

For examples of how different people in your organization would use this dashboard, see these use cases.

User	Dashboard use
It managers, IT analysts, vulnerability remediation owners	Help your organization deal with increasing security incidents due to exploited vulnerabilities by efficiently determining which vulnerable items present the most risk. These dashboards provide a graphical view into vulnerable item activity and help design remediation plans and status progress. You can focus on the KPIs associated with critical affected assets and high-visibility vulnerabilities.

To view the Vulnerability Management (PA) dashboard, navigate to Vulnerability Response > Overview.

See reports that show trending data over time. Reports with real-time data are listed below. View trends of important metrics on a regular schedule to analyze your overall business processes and identify areas of improvement.

For more information about how to view your PA reports with real-time scores, see View Performance Analytics for Vulnerability Response [PA] reports in real time.

The Vulnerability Management [PA] dashboard tabs

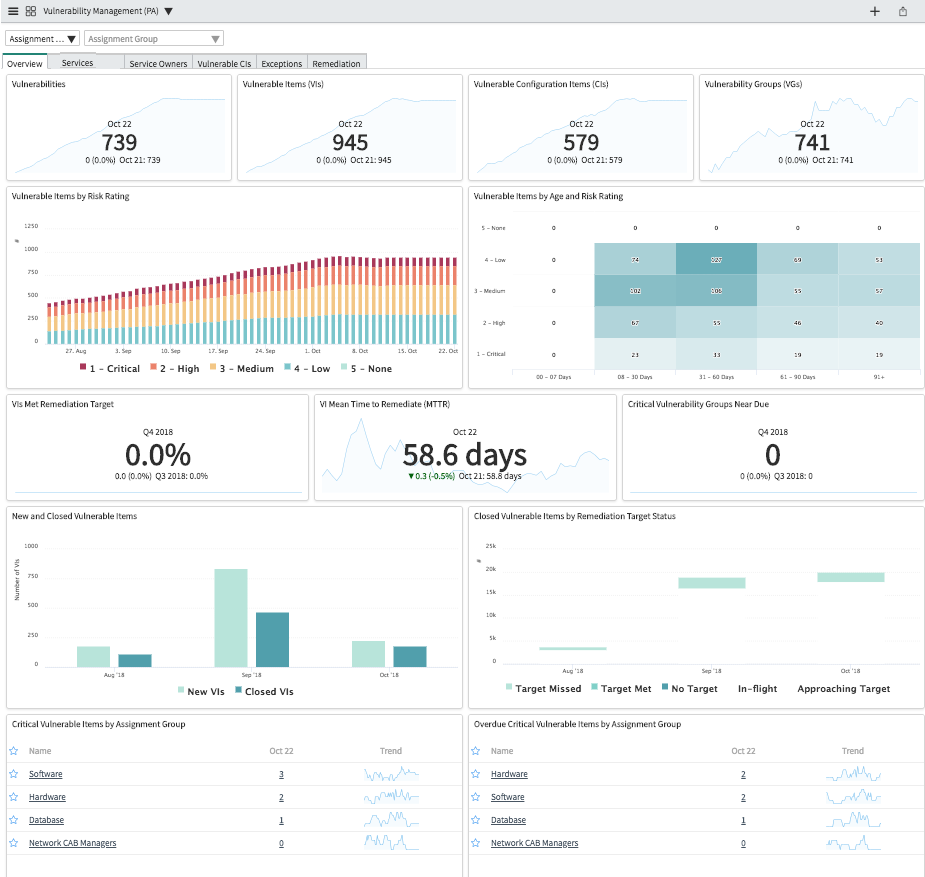

Figure 1. Overview tab

This dashboard communicates KPIs for vulnerability risk and prevalence, affected assets, remediation target adherence, and remediation progress.

On the Overview tab, you can view the Critical Vulnerable Items by Assignment Group report that is run based on the scheduled job.

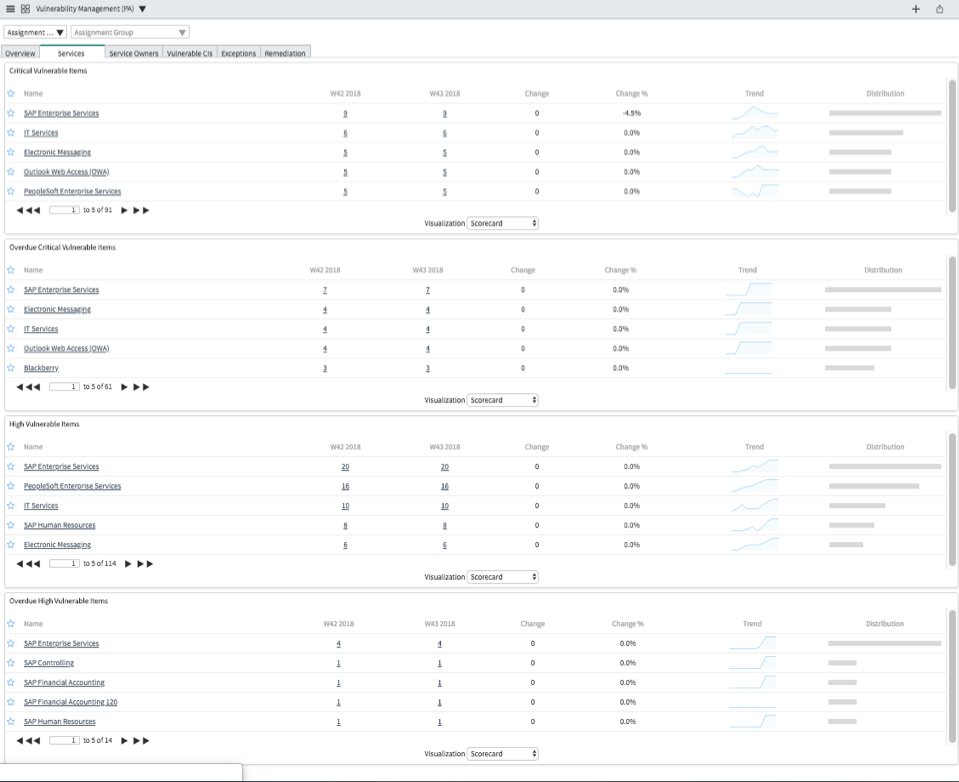

Figure 2. Business Services tab

This dashboard exposes vulnerability risk at the business service level. Sharing this information across the organization can assist service managers to remediate vulnerabilities promptly and proactively, and drive the organization toward a shared responsibility model of information security.

You can change the service class to technical or application services using the system property sn_vul.service_classifications.

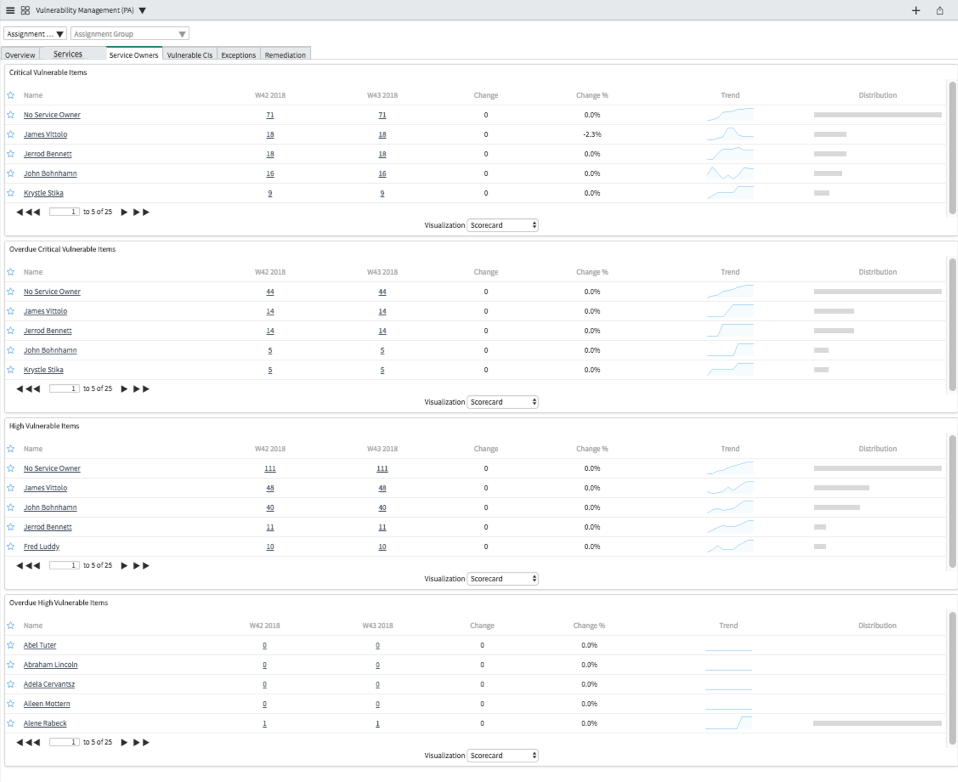

Figure 3. Service Owners tab

This dashboard aggregates the vulnerability risk from the business service level to the service owners — the executives responsible for those business services. It shows which executives are assuming the most vulnerability risk and which may require the most help encouraging prompt remediation activities.

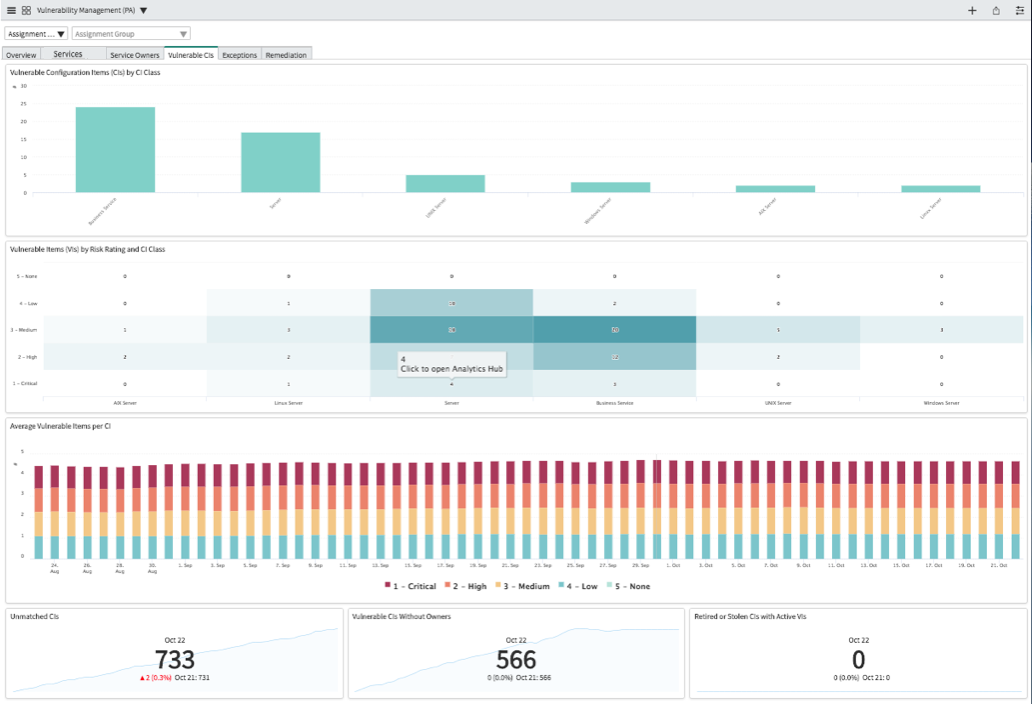

Figure 4. Vulnerable CIs tab

This dashboard shows the scope and composition of CIs with active vulnerabilities, and which categories of CIs need the most attention. Identify decommissioned assets with active vulnerable items and confirm that the assets have been decommissioned. View the number of vulnerable CIs that lack ownership information, so that you can proactively identify owners for these assets before a critical vulnerability affects those systems.

On the Vulnerable CIs tab, you can view the Vulnerable CIs Without Owners and Retired or Stolen CIs with Active VIs reports in real-time.

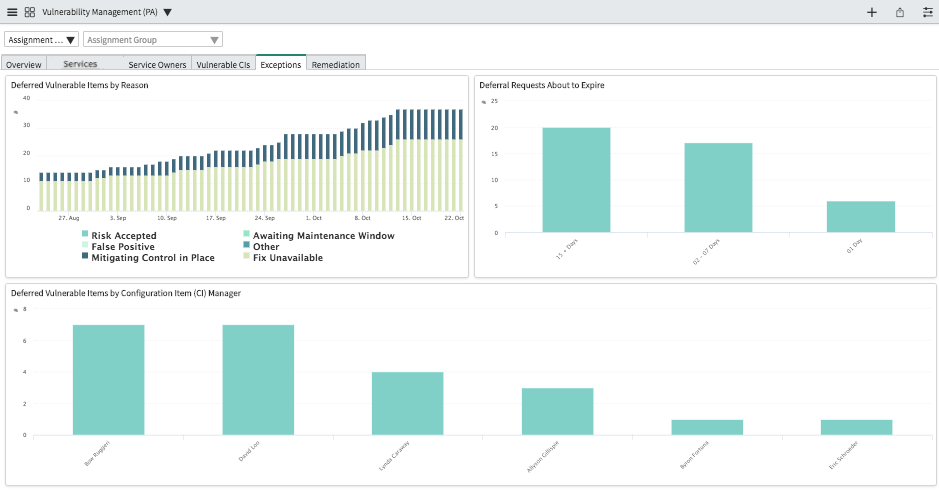

Figure 5. Exceptions tab

This dashboard help you understand where your organization is taking risk due to potentially excessive deferrals and reconsider remediation options.

You can view Deferred Vulnerable Items by Reason, Expiring Deferral Requests, Exceptions for Critical Vulnerable Items by Assignment Group, and Exception Requests by Requester reports.

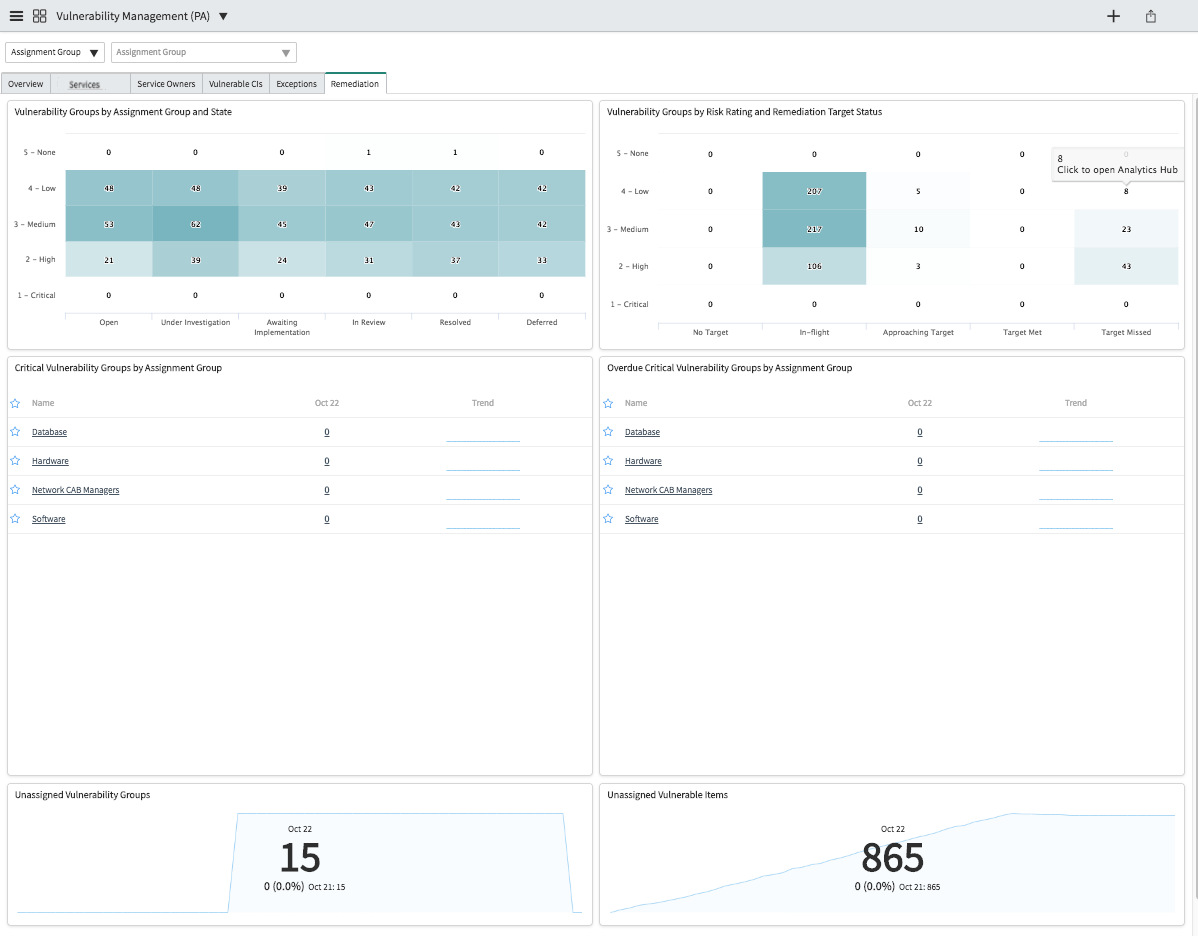

Figure 6. Remediation tab

This dashboard helps you understand the progress of your remediation actions, and which support teams need the most assistance with their completion.

On the Remediation tab, you can view Unassigned Vulnerable Items report in real-time.

Indicators

Vulnerability Response indicators

There are a number of indicators used to measure and track the progress of your vulnerability remediation in the Vulnerability Response application.

The collect records option for the indicators is disabled by default for the Vulnerability Response application. This option is disabled so that certain reports can be viewed in real-time. Trending information used by these indicators is still available if you prefer to enable collect records manually and view the records that make up the scores.

Distinct Vulnerabilities

Distinct Vulnerabilities with count_active_vi > 0. Goal is to minimize.

Non-Deferred Overdue Critical Vulnerable Items

It is the count on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

% Vulnerable Items Met Remediation Target

([[Closed Vulnerable Items > Remediation Target = Target Met]] / [[Closed Vulnerable Items]]) * 100. Goal is to maximize.

Unassigned Vulnerable Items

All active Vulnerable Items where both the Assignment Group and Assigned To fields are empty. Goal is to minimize.

Critical Vulnerable Items (Services)

It is the count on data source Active VIs (Services), which is using the table: sn_vul_analytics_business_services_vi. Goal is to minimize.

High Overdue Vulnerable Items (Services)

It is the count on data source Active VIs (Services), which is using the table: sn_vul_analytics_business_services_vi. Goal is to minimize.

Unassigned Remediation Tasks

All active remediation tasks where both the Assignment Group and Assigned To fields are empty. Goal is to minimize.

Critical Vulnerable Items

It is the count on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Vulnerable Items

It is the count on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

New Vulnerable Items

It is the count on data source VI.New, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Vulnerable Configuration Items

It is the count distinct on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Summed Duration of Closed Vulnerable Items

It is the sum on data source VI.Closed, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Non-Deferred Remediation Tasks

It is the count on data source VG.Active, which is using the table: sn_vul_vulnerability. Goal is to minimize.

Vulnerable Item Mean Time to Remediate

[[Summed Duration of Closed Vulnerable Items]] / [[Closed Vulnerable Items]]

Critical Overdue Vulnerable Items (Services)

It is the count on data source Active VIs (Services), which is using the table: sn_vul_analytics_business_services_vi. Goal is to minimize.

Retired Configuration Items

It is the count distinct on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Deferral Requests

It is the count on data source Active Deferral Requests, which is using the table: sn_vul_change_approval. Goal is to minimize.

Vulnerable Items by Configuration Items

It is the count on data source CIs with Active VIs, which is using the table: sn_vul_analytics_vi_ci_class. Goal is to minimize.

Closed Vulnerable Items

Closed Vulnerable Items is measured daily as unit #. The goal is to maximize.

Unmatched Configuration Items

Lists the hosts discovered by 3rd party vulnerability scanners that don't match any existing CIs in the CMDB.

Non-Deferred Overdue Critical Remediation Tasks

It is the count on data source VG.Active, which is using the table: sn_vul_vulnerability. Goal is to minimize.

Vulnerable Configuration Items Without Support Group

It is the count on data source VI.Open, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Non-Deferred Critical Remediation Tasks

It is the count on data source VG.Active, which is using the table: sn_vul_vulnerability. Goal is to minimize.

Deferred Vulnerable Items

It is the count on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

High Vulnerable Items (Services)

It is the count on data source Active VIs (Services), which is using the table: sn_vul_analytics_business_services_vi. Goal is to minimize.

Distinct Configuration Items with Active Vulnerable Items

It is the count distinct on data source CIs with Active VIs, which is using the table: sn_vul_analytics_vi_ci_class. Goal is to minimize.

Average Number of Vulnerable Items per Configuration Item

[[Active Vulnerable Items]] / [[Vulnerable CIs]]. Goal is to minimize.

Remediation Tasks

It is the count on data source VG.Active, which is using the table: sn_vul_vulnerability. Goal is to minimize.

Critical Deferred Vulnerable Items

It is the count on data source VI.Active, which is using the table: sn_vul_vulnerable_item. Goal is to minimize.

Deferral Requests (created)

It is the count on data source Closed.Requests, which is using the table: sn_vul_change_approval. Goal is to minimize.

Breakdowns

The following breakdown names apply to the indicators on the dashboard:

• Age
• Age Closed
• Assignment Group
• CI Class
• CI Manager
• Deferral Age
• Deferral Reason
• Exception Requesters
• Exploit Attack Vector
• Exploit Exists
• Exploit Skill Level
• Remediation Target Rule
• Remediation Target Status
• Remediation Target Status (Closed)
• Risk Rating
• Service
• Service Criticality
• Service Owner
• Severity
• State

Breakdown source

• Assignment Group: Applies to VI or and RT reports
• Exploit Exists: Applies to VI reports.
• Exploit Attack Vector: Applies to VI reports.
• Exploit Skill Level: Applies to VI reports.
• Remediation Target Status: Applies to VI and RT reports.
• Risk Rating: Applies to VI and RT reports.
• State: Applies to VI and RT reports.

Data visualizations

Title	Type	Description
Vulnerabilities	Single Score	Number of vulnerabilities associated with one or more active vulnerable items.
Vulnerable Items (VIs)	Single Score	Number of active (non-closed) vulnerable items.
Vulnerable Configuration Items (CIs)	Single Score	Number of configuration items (CIs) associated with one or more active vulnerable items.
Remediation Tasks	Single Score	Number of active (non-closed) remediation tasks.
Vulnerable Items by Risk Rating	Bar	Number of active vulnerable items grouped by risk rating over the selected time span.
Vulnerable Items by Age and Risk Rating	Heatmap	Number of active vulnerable items grouped by risk rating and age (in days).
VIs Met Remediation Target	Single Score	Percentage of closed vulnerable items that have met their remediation target dates in the current and previous quarters. Remediation targets are calculated from the Last Opened date plus the number of days (measured as 24-hour increments).
VIs Mean Time to Remediation (MTTR)	Single Score	The mean time to remediate (close) a vulnerable item, displayed as a 30-day running average. Note: The value for Age Closed is calculated when data is collected. The value is the difference between the last_opened date and the date and time of the collection job.
Critical Remediation Tasks Near Due	Single Score	Number of active remediation tasks approaching their remediation target date. The remediation target date of a remediation task is set to the closest due date belonging to an active vulnerable item in the group. Remediation targets are calculated from the Last Opened date plus the number of days (measured as 24-hour increments). This report excludes deferred remediation tasks.
New and Closed Vulnerable Items	Bar	Number of New and Closed vulnerable items over the selected time span. Note: The value for Age Closed is calculated when data is collected. The value is the difference between the last_opened date and the date and time of the collection job.
Closed Vulnerable Items by Remediation Target Status	Bar	Number of Closed vulnerable items grouped by remediation target status over the selected time span. Note: The value for Age Closed is calculated when data is collected. The value is the difference between the last_opened date and the date and time of the collection job.
Critical Vulnerable Items by Assignment Group	List and Line	Number of active vulnerable items with a critical risk rating grouped by assignment group.
Overdue Critical Vulnerable Items by Assignment Group	List and Line	Number of active vulnerable items with a critical risk rating and past their remediation target dates, grouped by assignment group. Remediation targets are calculated from the Last Opened date plus the number of days (measured as 24-hour increments). This report excludes deferred vulnerable items.

Table 1. Business Services

Name	Type	Description
Critical Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a critical risk rating, grouped by business service. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard.
Overdue Critical Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a critical risk rating and past their remediation target dates, grouped by business service. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard. This report excludes deferred vulnerable items.
High Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a high risk rating, grouped by business service. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard.
Overdue High Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a high risk rating and past their remediation target dates, grouped by business service. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard. This report excludes deferred vulnerable items.

Table 2. Service Owners

Name	Type	Description
Critical Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a critical risk rating, grouped by business service owner. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard.
Overdue Critical Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a critical risk rating and past their remediation target dates, grouped by business service owner. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard. This report excludes deferred vulnerable items.
High Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a high risk rating, grouped by business service owner. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard.
Overdue High Vulnerable Items	List, Line, and Distribution Bar	Number of active vulnerable items with a high risk rating and past their remediation target dates, grouped by business service owner. Displays a weekly average from the current and prior week, the difference between the two weeks (in count and percent), and a trend. The distribution bar displays the difference between all values on the current page of the scorecard. This report excludes deferred vulnerable items.

Table 3. Vulnerable CIs

Name	Type	Description
Vulnerable Configuration Items (CIs) by CI Class	Bar	Numbers of configuration items with active vulnerabilities, grouped by CI class in the CMDB.
Vulnerable Items (VIs) by CI Class	Treemap	Number of active VIs broken down by CI class.
Average Vulnerable Items per CI	Bar	Average number of vulnerable items belonging to a configuration item, grouped by risk rating.
Unmatched CIs	Single Score	Number of imported configuration items that do not match any existing CI in the CMDB.
Vulnerable CIs Without Support Group	Single Score	Number of vulnerable configuration items that do not have an assigned support group.
Retired or Stolen CIs with Active VIs	Single Score	Number of configuration items marked Retired or Stolen in the CMDB that have active vulnerable items.

Table 4. Exceptions

Name	Type	Description
Deferred Vulnerable Items by Reason	Bar	Number of deferred vulnerable items grouped by deferral reason.
Deferral Requests About to Expire	Bar	Number of deferral requests associated with remediation tasks or vulnerable items that are about to be reopened for review. They are grouped by the number of days left until they reopen. If email notifications are defined, an email is sent.
Deferred Vulnerable Items by Configuration Item (CI) Manager	Bar	Number of deferred vulnerable items grouped by the manager for the associated configuration item.

Table 5. Remediation

Name	Type	Description
Remediation Tasks by Risk Rating and State	Heatmap	Number of active remediation tasks grouped by risk rating and state.
Remediation Tasks by Risk Rating and Remediation Target Status	Heatmap	Number of active tasks grouped by risk rating and remediation target status. This report excludes deferred vulnerable items.
Critical Remediation Tasks by Assignment Group	List and Line	Number of active remediation tasks with a critical risk rating grouped by assignment group. This report excludes deferred remediation tasks.
Overdue Critical Remediation Tasks by Assignment Group	List and Line	Number of active remediation tasks with a critical risk rating and past their remediation target dates, grouped by assignment group. This report excludes deferred remediation tasks.
Unassigned Remediation Tasks	Single Score	Number of active remediation tasks without an assignee or assignment group.
Unassigned Vulnerable Items	Single Score	Number of active vulnerable items without an assignee or assignment group.
