Create an architectural document

  • Release version: Zurich
  • Updated March 2, 2026
  • 1 minute to read

    • Create an architectural document in the Enterprise Architecture Workspace. An Architectural document captures and governs architecture information generated from diagrams.

    Before you begin

    Role required: sn_apm.apm_user

    Procedure

    1. Navigate to Workspace > Enterprise Architecture Workspace.
    2. Open the Portfolio List view by selecting the Portfolio icon Portfolio icon.
    3. Select the expand row icon (Expand Row icon) next to Information Portfolio.
    4. Select Architectural Documents.
    5. Select New.
    6. Enter a name and select an architectural category.
      Note:
      By default, the format is set to Document.
    7. Select Create.
      An artifact gets created.

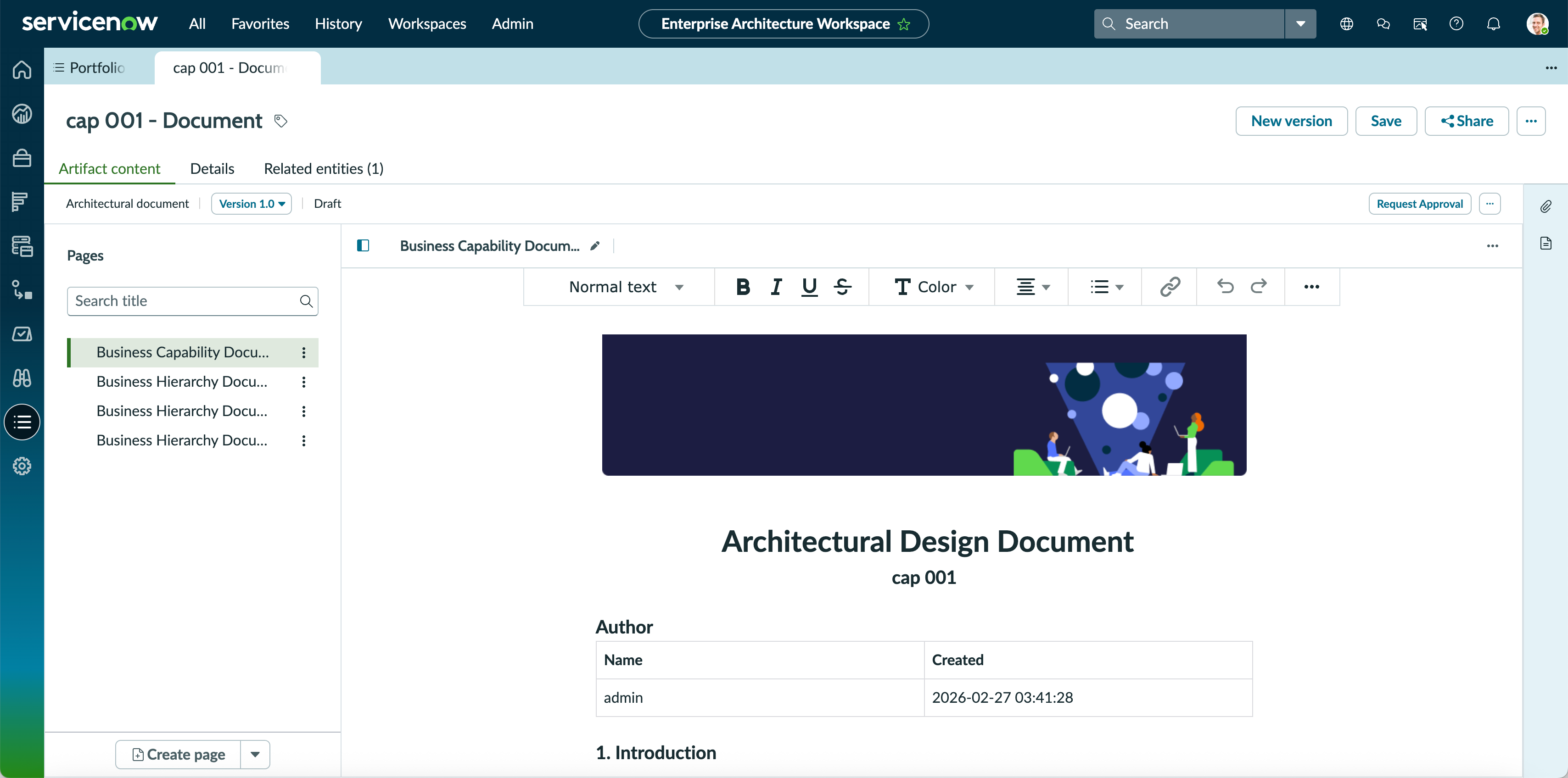

      You can see the following tabs:
      • Artifact content
      • Details
      • Related entities

      Architectural document
