Challenge Introduction:- In order to strengthen the ServiceNow hands-on skills , each week a challenge will be posted and you need to implement the solution in your Personal Development Instance and share the screenshots of the completion in the post comments and your take home learning for this week Challenge.



Benefits:-

  1. A weekly implementation challenge in order to do goal based learning.
  2. An opportunity to connect and learn from thousand of others ServiceNow Enthusiasts who are part of nowGurukul community.
  3. An opportunity to learn and implement exciting features & functionalities of ServiceNow platform every week.
  4. Real time project based learning opportunity which can be used in your resumes in order to showcase how competent you are in implementing ServiceNow hands-on solutions.
  5. Opportunity to innovate and come up with your creative solutions for the challenges in order to grow your ServiceNow competency.

and much more....



Challenge Guidelines:-

  1. Kindly use your personal development instance for the challenge implementation.
  2. In case of any assistance/discussion required , please use nowGurukul Official What's App Channel for the quick resolution.
  3. Wherever needed assume the values in order to complete the challenge as you are independent enough to bring in your creativity in your hands on implementations.
  4. Make sure you follow Best Practice wherever applicable.

*****************************************************************************************************************

Prerequisite:

 nowGurukul ServiceNow Hands-On Challenge 2024 #Week_1

https://www.servicenow.com/community/developer-articles/nowgurukul-servicenow-hands-on-challenge-202...



Week-2 Challenge:-

For this week, as part of the end to end project implementation, we will be configuring few Application Menus/Modules. Then we would be create new Catalog Item and Record Producer with variables and variable set.



Application Menu/Modules:

Application Name: Corporate Gifting

Modules:

  1. All Employees – List of Employee Table all records.
  2. My Employees – List of employees whose manager is Me (logged in user).
  3. Create New Employee – New form to create Employee record.
  4. My Requests – List of E-Wallet Request requested by Me (logged in user).
  5. Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents.
  6. Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.
  7. Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed.



Catalog Items:

Name: E-Voucher Request

Catalog: Service Catalog

Category: Corporate Policies/Benefits (New Category)

Short Description: To raise request to avail E-Voucher based on E-Wallet balance.



Variable Set:

Requested By – Read-only, Auto populated by logged in user.



Variables:

1. Project/Account – Read-Only. Auto-populate based on Requested By from Employee record.

2. E-Voucher Type - Choice Values-

  1. E-Commerce (Default)
  2. Shopping
  3. Sports Wear
  4. Food Delivery

3. E-Voucher Brand: Choice Values with None option:

  1. Flipkart (Visible only when E-Voucher Type is E-Commerce)
  2. Amazon (Visible only when E-Voucher Type is E-Commerce)
  3. Myntra (Visible only when E-Voucher Type is E-Commerce)
  4. Lifestyle (Visible only when E-Voucher Type is Shopping)
  5. Allen Solly (Visible only when E-Voucher Type is Shopping)
  6. Zomato (Visible only when E-Voucher Type is Food Delivery)
  7. Swiggy (Visible only when E-Voucher Type is Food Delivery)
  8. Puma (Visible only when E-Voucher Type is Sports Wear)
  9. Adidas (Visible only when E-Voucher Type is Sports Wear)
  10. Nike (Visible only when E-Voucher Type is Sports Wear)



4. E-Voucher Amount:

  1. Rs.100 (Visible only when E-Voucher Type is Food Delivery)
  2. Rs.200 (Visible only when E-Voucher Type is E-Commerce, Food Delivery)
  3. Rs.250 (Visible only when E-Voucher Type is E-Commerce, Sports Wear)
  4. Rs.400 (Visible only when E-Voucher Type is Shopping, Food Delivery)
  5. Rs.500 (Visible only when E-Voucher Type is E-Commerce, Shorts Wear, Shopping)
  6. Rs.750 (Visible only when E-Voucher Type is Shopping, Sports Wear)
  7. Rs.1000 (Visible for all E-Voucher Type)



5. Quantity: Choice Values:

  1. 1 (Default)
  2. 2
  3. 3
  4. 4
  5. 5

6. E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity. (E-Voucher Amount*Price).



7. Comments: Multi Line String Text.



Record Producer:



Name: Raise E-Wallet Request for your Mentee

Catalog: Service Catalog

Category: Corporate Policies/Benefits

Short Description: To raise submit request for mentees to allocate E-Wallet Amount to their wallet based on the Award/Appreciation they receive.



Variables:

1. Requested By – Read-only, Auto populated by logged in user.

2. Requested For – Show only the users whose manager is logged in user.

3. Type of Award/Appreciation – Choice Values:

  1. Pat on the Back Award (Rs. 300)
  2. On-Spot Award (Rs.400)
  3. Best Employee of the month (Rs. 500)
  4. Successful Go-Live Appreciation (Rs. 250)
  5. Escalation Handling Appreciation (Rs.200)
  6. Best Newcomer Award (Rs. 600)
  7. Rising Star Award (Rs. 800)
  8. Extraordinary Employee Award (Rs. 1000)

4. E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.



5. Watchlist – List of users who can be added like Senior Manager, Delivery Head, Account Manager, etc.



6. Additional Comment – Multi line string text field.



7. Attachment – Attachment to show any proof. [Optional].



*****************************************************************************************************************

Join nowGurukul Communication Channels to get latest updates:-

LinkedIn:- https://www.linkedin.com/company/nowgurukul

What's App:- https://chat.whatsapp.com/DlXPEZCFFTn0ImvGA5UErP

YouTube:- https://www.youtube.com/channel/UClnJHTVq8kNkS1KCzMptYGg



Please Bookmark this Article 🔖 for your future reference and do Mark it as Helpful 👍 if you really enjoy working on this challenge.



Regards,

nowGurukul Team



Comments
Bphan
Tera Contributor

Hi @nowGurukul, Can you help me explain this better "1. Project/Account – Read-Only. Auto-populate based on Requested By from Employee record."

Sivasangeethp
Tera Contributor

@nowGurukul - In Application & Module I could see for some module visibility is only for "HR Agents" what it is? role or something.

AnubhavRitolia
Mega Sage
Mega Sage

@Bphan



I am assuming you have completed Week 1 challenge.



Here you have to create a variable 'Project/Account' which should be read-only and it should auto populated based on the user you select in Requested By variable from the 'Employee' Table record where each employee is linked to Project/Account field.



AnubhavRitolia
Mega Sage
Mega Sage

Hi @Sivasangeethp



I am assuming you have completed Week 1 challenge.



Here 'HR Agents' means HR agents who would be assigned to respective Requests. Who are part of HR Groups.



You have to figure out how you want to achieve it.

Sivasangeethp
Tera Contributor

@AnubhavRitolia  - Yep i think i have got. please guide is this right or wrong




Users who are part of above groups are HR Agents . So in module we can give visibility based on the roles only as per i know.


So, i have planned to create one role called "HR_Agents" and will be assigning to above groups and afterwards i will assign the same role to module's visibility. so that it will only be visible to hr agents.



Kindly correct me if the idea is not correct.

Sivasangeethp
Tera Contributor

Hi All,



This is for people who got stuck at auto populate of "Project/Account" field. And for few of us value is not getting auto populate.

At first i have tried with onload client script with glide record were i will get the "requested by" and will search for the user in employee table and from their i tried to get "Project/Account". But the value is not populating. As far i know the issue is coming because of the scope.



So i have created a glide Ajax and script include. And finally got the value.

Sample script:

client script:


Script include:


output:









Source Script

Client script :

function onLoad() {
   //Type appropriate comment here, and begin script below
  var user=g_form.getValue('u_requested_by');

  var ga = new GlideAjax('ProjectAccount');
  ga.addParam('sysparm_name', 'callback');
  ga.addParam('sysparm_user', user);
  ga.getXML(getDetails);

function getDetails(response) {
  var answer = response.responseXML.documentElement.getAttribute('answer');
  g_form.setValue('u_project_account',answer);
}
}
script include:
var ProjectAccount = Class.create();
ProjectAccount.prototype = Object.extendsObject(global.AbstractAjaxProcessor, {
    callback: function() {
        var user = this.getParameter('sysparm_user');
        var gr = new GlideRecord('x_906853_corpora_0_employee');
        gr.addQuery('sys_id', user);
        gr.query();
        gs.debug('E-voucher ='+gr.getRowCount);
        if (gr.next()) {
            return gr.project_account;
        }
    },

    type: 'ProjectAccount'
});

If it's useful for you. Mark it's as helpful.





Community Alums
Not applicable

If we are doing glide Ajax in week 2, imagine what we'll be doing in week 52.😂🤣

Afsar2
Tera Contributor



For Catalog item I see there is a variable set needs to be create. But it has only one variable mentioned. (Requested By).

Also, Variable set name is not defined in the problem statement.



Any suggestions please!






AnubhavRitolia
Mega Sage
Mega Sage

@Afsar2



Yes you are free to use any variable set name as it is backend part and not required to be displayed on catalog item Form level.

Bphan
Tera Contributor

@nowGurukul

I have Completed Hands-On Challenge W2

  1. Application Menu/Modules:





- All Employees – List of Employee Table all records.


- My Employees – List of employees whose manager is Me (logged in user).

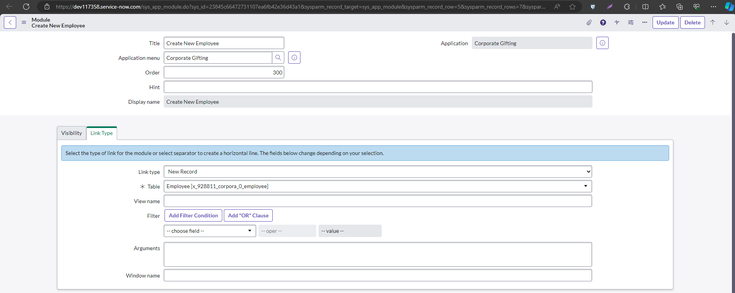

- Create New Employee – New form to create Employee record


- My Requests – List of E-Wallet Request requested by Me (logged in user).


- Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents





- Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.





- Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed.





2. Catalog Items:




E-Voucher Brand Visible follow E-Voucher Type:













E-Voucher Amount Visible follow E-Voucher Type and E-voucher Price Auto-populate:

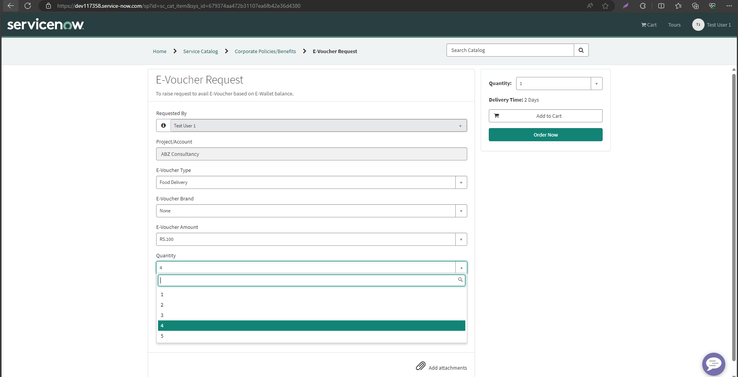

Quantity Choice:

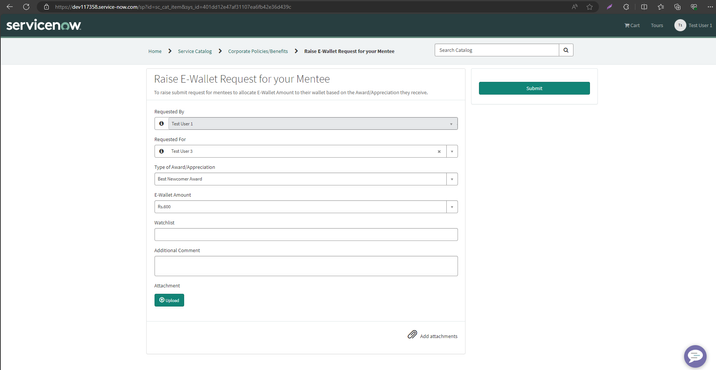

3. Record Producer:




Requested For – Show only the users whose manager is logged in user:







Type of Award/Appreciation – Choice Values:




E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.











Thanks, and best regards,

Bach Phan

Sivasangeethp
Tera Contributor

Hi @nowGurukul



Challenge 2 is completed

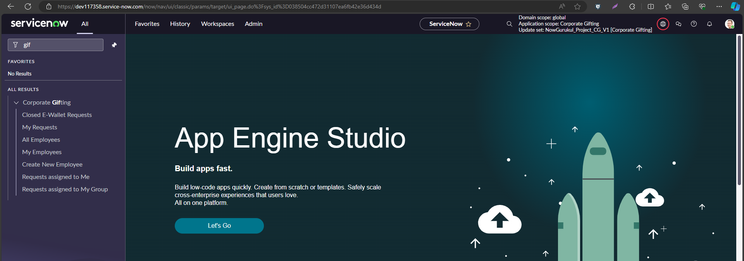

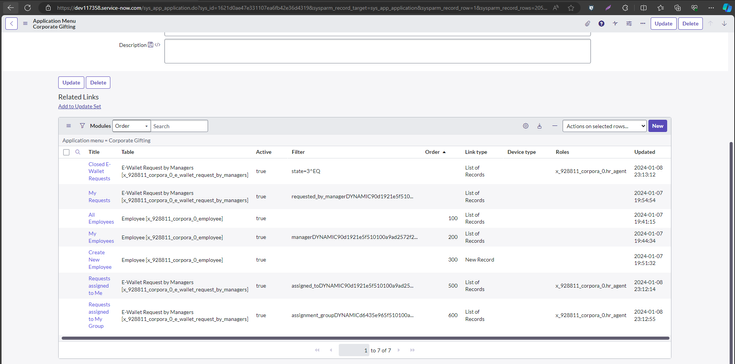

Application Menu/Modules:

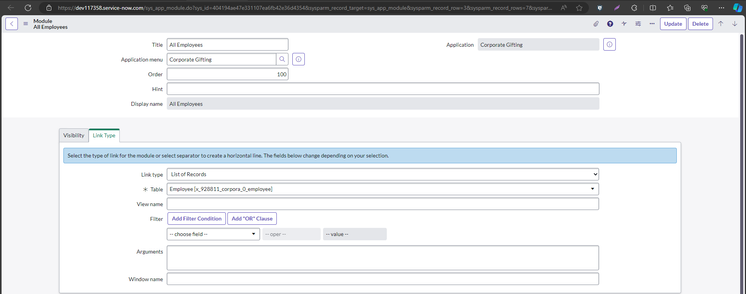

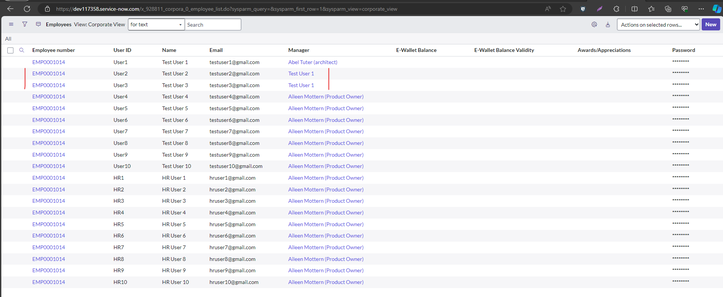

  1. All Employees – List of Employee Table all records.

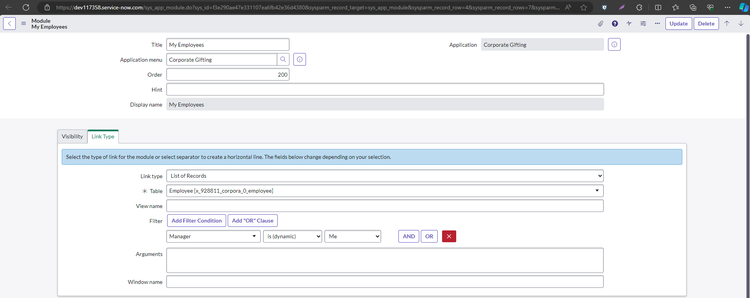

2. My Employees – List of employees whose manager is Me (logged in user).





3. Create New Employee – New form to create Employee record.

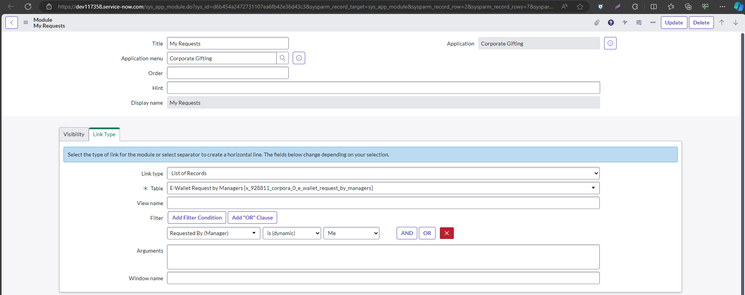

4. My Requests – List of E-Wallet Request requested by Me (logged in user).

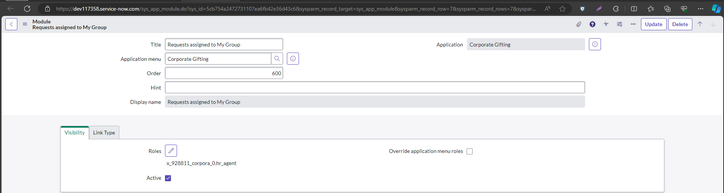

For HR Agents visibility I have created role and tag the bellow the group and those group members are hr agents.

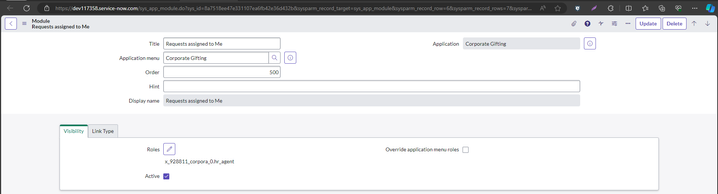

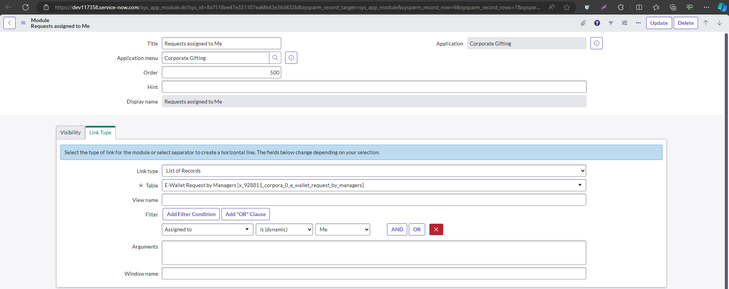

5. Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents

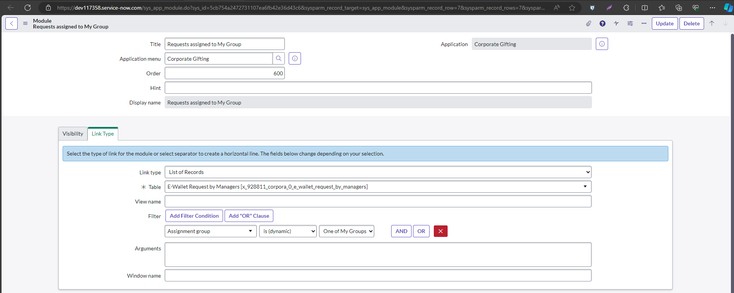

6. Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.

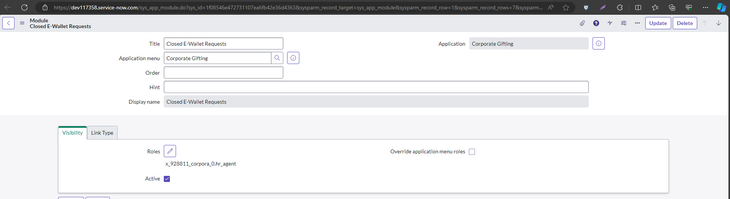

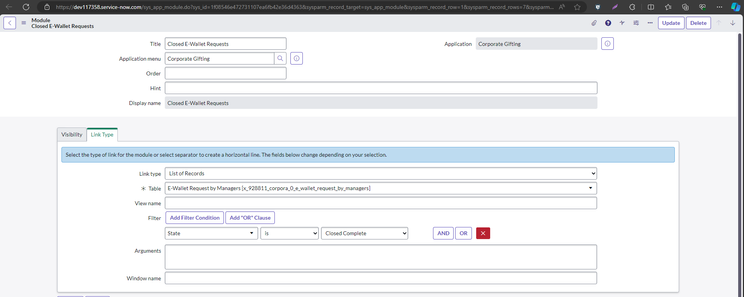

7. Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed.





Catalog Items:

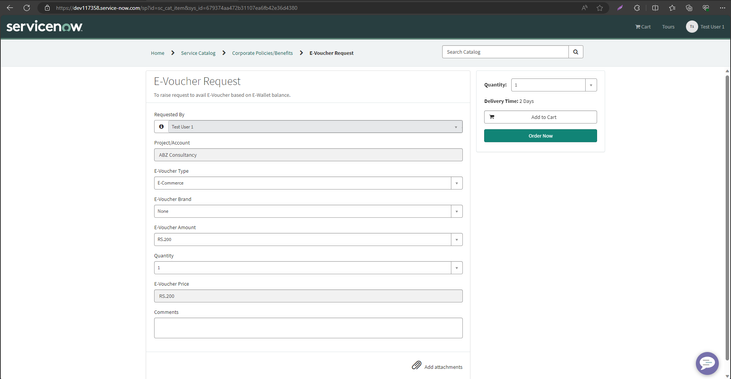

Name: E-Voucher Request

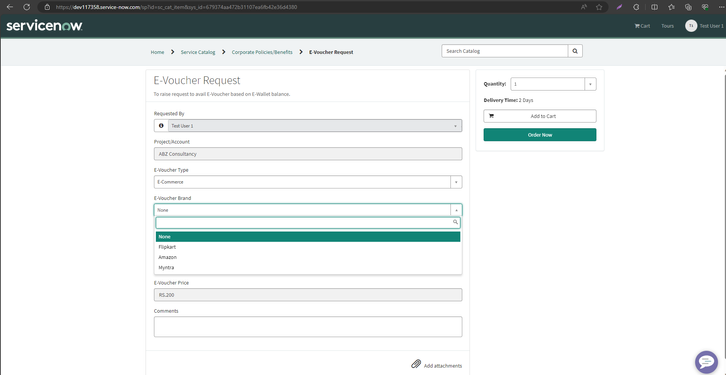

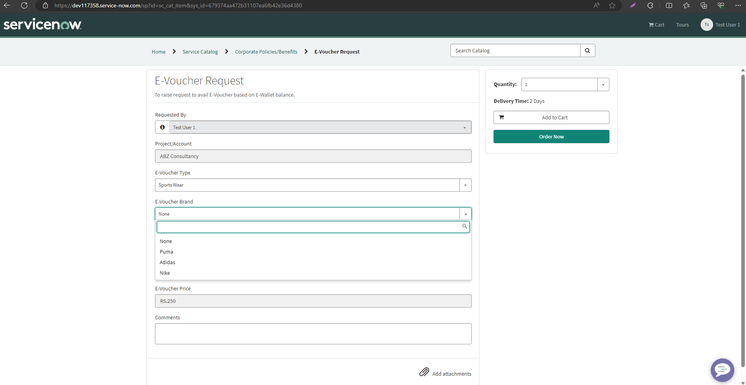

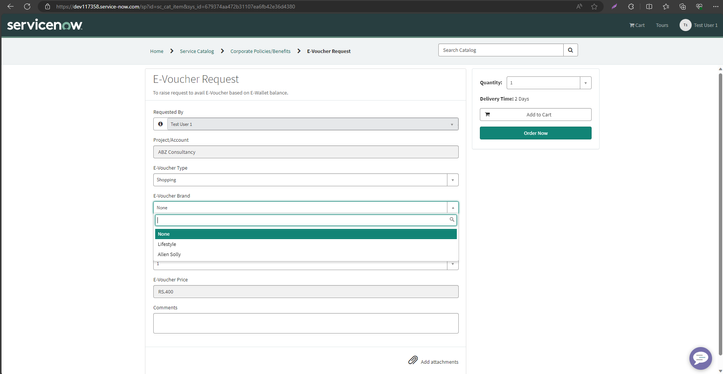

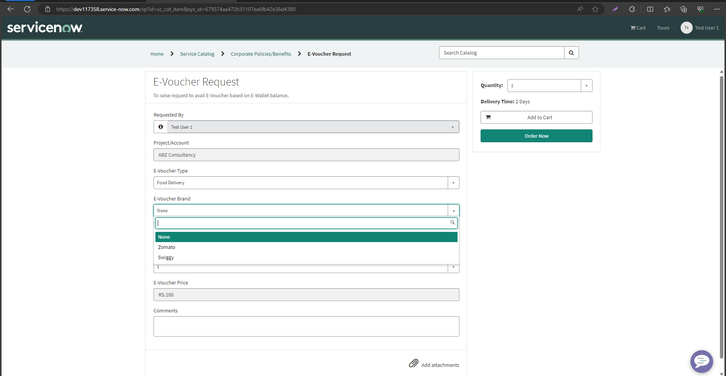

E-Voucher Brand visibility based on  E-Voucher Type

1. E-Commerce


2.Shopping


3.Sports Wear


4. Food Delivery

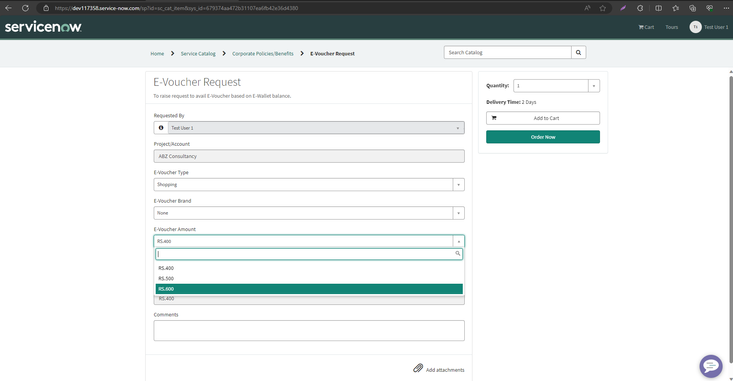

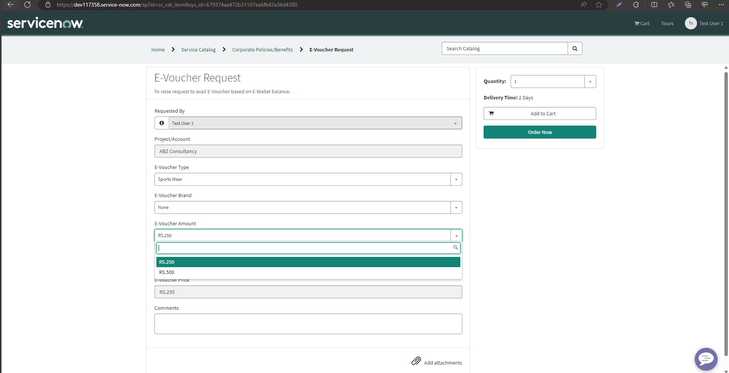

E-Voucher Amount visibility based on  E-Voucher Type

  1. E-Commerce


2. Shopping


3. Sports Wear


4. Food Delivery


E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity. (E-Voucher Amount*Price).










Record Producer:

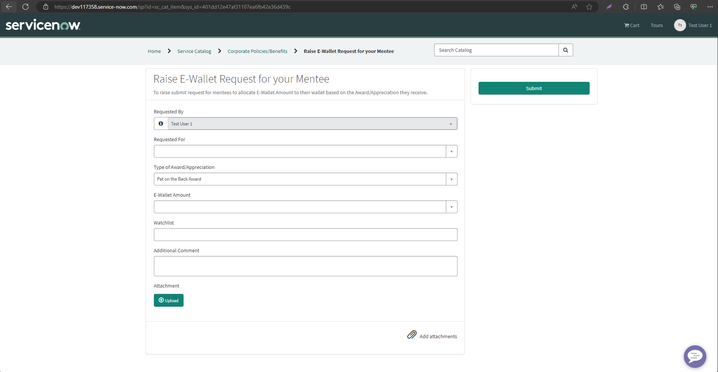

Name: Raise E-Wallet Request for your Mentee

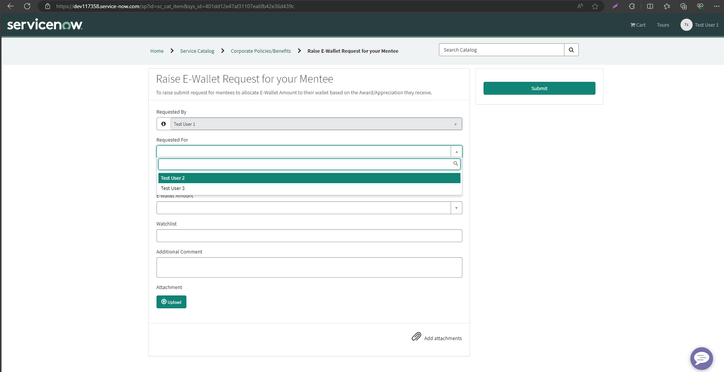

  1. Requested For – Show only the users whose manager is logged in user.

Logged in User : Siva S

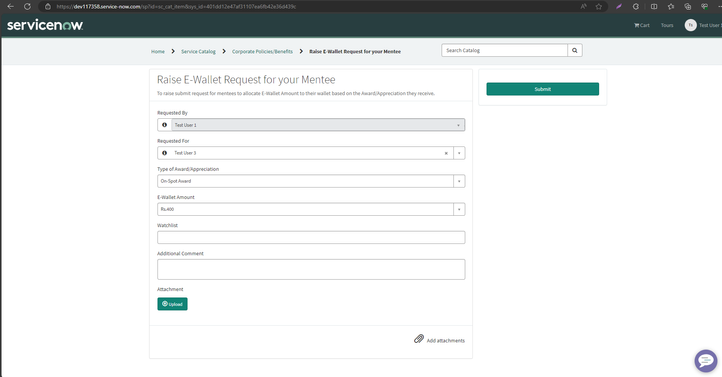

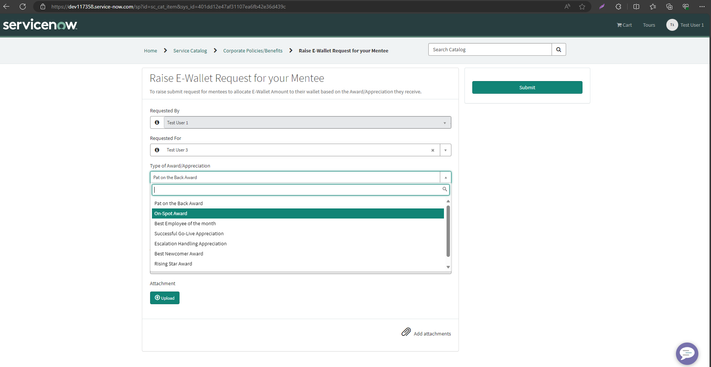

 E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.

Pat on the Back Award (Rs. 300)


On-Spot Award (Rs.400)


Best Employee of the month (Rs. 500)


Successful Go-Live Appreciation (Rs. 250)


Escalation Handling Appreciation (Rs.200)


Best Newcomer Award (Rs. 600)


Rising Star Award (Rs. 800)


Extraordinary Employee Award (Rs. 1000)




Watchlist – List of users who can be added like Senior Manager, Delivery Head, Account Manager, etc.









Thanks,

Siva

Abhishek_Thakur
Mega Sage

Hi @AnubhavRitolia ,



Could you please help here to configure this.

3. E-Voucher Brand: Choice Values with None option:

  1. Flipkart (Visible only when E-Voucher Type is E-Commerce)
  2. Amazon (Visible only when E-Voucher Type is E-Commerce)
  3. Myntra (Visible only when E-Voucher Type is E-Commerce)
  4. Lifestyle (Visible only when E-Voucher Type is Shopping)
  5. Allen Solly (Visible only when E-Voucher Type is Shopping)
  6. Zomato (Visible only when E-Voucher Type is Food Delivery)
  7. Swiggy (Visible only when E-Voucher Type is Food Delivery)
  8. Puma (Visible only when E-Voucher Type is Sports Wear)
  9. Adidas (Visible only when E-Voucher Type is Sports Wear)
  10. Nike (Visible only when E-Voucher Type is Sports Wear)

I have tried to do it with client script, but I am not able to configure the visibility base on E-vouvher type. Could you please guide what I can use here to configure this requirement?

azharsheikh
Tera Contributor

Hi, @Sivasangeethp
could you please upload your solution of week1 and week2 on youtube?
it would be great help

Abhishek_Thakur
Mega Sage

Hi Team,



Can anyone help here to configure the requested by field with auto populated value. My scripts is not working here.

Abhishek_Thakur
Mega Sage

Hi @nowGurukul ,



I have done with week 2 challenge.

Application Menu.pngE-Voucher Request.pngE-Wallet Request.png

Hp Saini
Tera Explorer

Screenshot 2024-01-11 at 12.20.47 PM.pngScreenshot 2024-01-11 at 12.19.41 PM.pngScreenshot 2024-01-11 at 12.17.45 PM.png

It was fun working on this week's challange. Thanks 🙏🤩

H562
Mega Guru

Hi @nowGurukul ,



Done with my week2 challenge.



AppMenu.pngE-VoucherRequest_NativeUI.pngE-VoucherRequest_PortalUI.pngRaiseE-wallet_NativeUI.pngRaiseE-wallet_PortalUI.png



Regards,

Harish Akurati

SarthakShri21
Tera Contributor

@Abhishek_Thakur

Plz refer below script


And script:

function onChange(control, oldValue, newValue, isLoading) {
   if (isLoading || newValue == '') {
      return;
   }

   //Type appropriate comment here, and begin script below
   alert('SAR1');
   if (isLoading || newValue == '') {
   alert('SAR2');
        g_form.clearOptions('e_voucher_brand', '');
        return;
    }
    if (newValue == 'E-Commerce') {
        alert('SAR3');
        g_form.removeOption('e_voucher_brand', 'Lifestyle');
        g_form.removeOption('e_voucher_brand', 'Allen Solly');
        g_form.removeOption('e_voucher_brand', 'Zomato');
        g_form.removeOption('e_voucher_brand', 'Swiggy');
        g_form.removeOption('e_voucher_brand', 'Puma');
        g_form.removeOption('e_voucher_brand', 'Adidas');
        g_form.removeOption('e_voucher_brand', 'Nike');
        g_form.addOption('e_voucher_brand', 'Flipkart', 'Flipkart');
        g_form.addOption('e_voucher_brand', 'Amazon', 'Amazon');
        g_form.addOption('e_voucher_brand', 'Myntra', 'Myntra');

    }

    else if (newValue == 'Shopping') {
        alert('SAR4');
        g_form.removeOption('e_voucher_brand', 'Flipkart');
        g_form.removeOption('e_voucher_brand', 'Amazon');
        g_form.removeOption('e_voucher_brand', 'Myntra');
        g_form.removeOption('e_voucher_brand', 'Zomato');
        g_form.removeOption('e_voucher_brand', 'Swiggy');
        g_form.removeOption('e_voucher_brand', 'Puma');
        g_form.removeOption('e_voucher_brand', 'Adidas');
        g_form.removeOption('e_voucher_brand', 'Nike');
        g_form.addOption('e_voucher_brand', 'Lifestyle', 'Lifestyle');
        g_form.addOption('e_voucher_brand', 'Allen Solly', 'Allen Solly');

    }

    else if (newValue == 'Sports Wear') {
        alert('SAR5');
        g_form.removeOption('e_voucher_brand', 'Lifestyle');
        g_form.removeOption('e_voucher_brand', 'Allen Solly');
        g_form.removeOption('e_voucher_brand', 'Zomato');
        g_form.removeOption('e_voucher_brand', 'Swiggy');
        g_form.removeOption('e_voucher_brand', 'Flipkart');
        g_form.removeOption('e_voucher_brand', 'Amazon');
        g_form.removeOption('e_voucher_brand', 'Myntra');
        g_form.addOption('e_voucher_brand', 'Puma', 'Puma');
        g_form.addOption('e_voucher_brand', 'Adidas', 'Adidas');
        g_form.addOption('e_voucher_brand', 'Nike', 'Nike');
    }

    else if (newValue == 'Food Delivery') {
        alert('SAR6');
        g_form.removeOption('e_voucher_brand', 'Flipkart');
        g_form.removeOption('e_voucher_brand', 'Amazon');
        g_form.removeOption('e_voucher_brand', 'Myntra');
        g_form.removeOption('e_voucher_brand', 'Lifestyle');
        g_form.removeOption('e_voucher_brand', 'Allen Solly');
        g_form.removeOption('e_voucher_brand', 'Puma');
        g_form.removeOption('e_voucher_brand', 'Adidas');
        g_form.removeOption('e_voucher_brand', 'Nike');
        g_form.addOption('e_voucher_brand', 'Zomato', 'Zomato');
        g_form.addOption('e_voucher_brand', 'Swiggy', 'Swiggy');
    }
}

Make sure to modify the Values and labels of variables as per your configuration.
It will work....

Please mark helpful....
Himani_14
Mega Sage
Mega Sage

Hi @nowGurukul Team,

Please find screenshots below for week 2 challenge.



Application Menu/Modules:

Employee View






HR View




Catalog Items:

Name: E-Voucher Request






Record Producer:



Name: Raise E-Wallet Request for your Mentee




Thanks

Himani







Chetna_dev
Kilo Sage

Hii @nowGurukul  I have completed my 2nd Challenge, below are the screenshots.

Week 2 Challenge:

Application Menu/Modules:

Screenshot (63).png

All Employees – List of Employee Table all records.

Screenshot (64).png



My Employees – List of employees whose manager is Me (logged in user).

Screenshot (65).png



Create New Employee – New form to create Employee record.

Screenshot (66).png



My Requests – List of E-Wallet Request requested by Me (logged in user).

Screenshot (67).png



HR Agent Role with group and modules

Screenshot (68).pngScreenshot (69).png



Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents

Screenshot (70).pngScreenshot (71).png



 Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.

Screenshot (72).pngScreenshot (73).png



Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed

Screenshot (74).pngScreenshot (75).png



Catalog Items:

Name: E-Voucher Request

Screenshot (76).png



E-Voucher brand visibility based on E-Voucher Type

-Sports wear

Screenshot (77).png

-Food Delivery

Screenshot (80).png

Screenshot (81).png

E-Voucher Amount visibility based on  E-Voucher Type

Screenshot (78).png



E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity.

Screenshot (79).png

Screenshot (82).png



Record Producer:

Name: Raise E-Wallet Request for your Mentee

Screenshot (91).png

Requested For – Show only the users whose manager is logged in user.

Logged in User: Chetna Sharma

Screenshot (84).pngScreenshot (85).png



E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.

Screenshot (86).png



Watchlist

Screenshot (89).png



My LinkedIn profile link: Chetna Sharma | LinkedIn

best

Chetna





Himani_14
Mega Sage
Mega Sage

Hi @nowGurukul Team,

Please find Week 2 challenge completion screenshots below.



Application Menu/Modules:

1. Employee View




2. HR View




Catalog Items:

Name: E-Voucher Request






Record Producer:



Name: Raise E-Wallet Request for your Mentee






Thanks

Himani



jindal
Tera Explorer

Can anyone please help me in this field E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity? (E-Voucher Amount*Price)

dgarad
Giga Sage

Hi @nowGurukul

I have done with the week 2 challenge.

Application Menu/Modules:





All Employees – List of Employee Table all records.




My Employees – List of employees whose manager is Me (logged in user).




Create New Employee – New form to create Employee record.




My Requests – List of E-Wallet Request requested by Me (logged in user).




Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents




Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.




Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed


Catalog Items:

Name: E-Voucher Request







E-Voucher Type - Choice Values-

  1. E-Commerce (Default)


2. Shopping


3. Sports Wear


4. Food Delivery


E-Voucher Amount:


Record Producer:

Name: Raise E-Wallet Request for your Mentee





Requested For – Show only the users whose manager is logged in user.





E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.


Watchlist




Regards,

Dharmaraj



Hakeem2
Tera Contributor

Thanks for this opportunity. I am learning a lot. I really appreciate the support being rendered by everyone.



E- Voucher.JPGRaise for Mentee1.JPG

Rampriya-S
Tera Guru
Tera Guru

Grateful appreciation to the @nowGurukul team for organizing the Week 2 challenge.

YouTube - https://youtu.be/D-cDF7MtoNk

Linked In -https://www.linkedin.com/posts/rampriya-s_corporate-gifting-week2-servicenow-challenge-activity-715284484691...

Abhilash
Tera Contributor

Can some one help on how to achieve this -

4. E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.

jagadevi2010
Tera Contributor


E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.



jagadevi2010
Tera Contributor

Can someone pls help on this

E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity. (E-Voucher Amount*Price).

SarthakShri21
Tera Contributor

@jagadevi2010

You will have to write two onchange client script, one for 'E-Voucher Amount' variable and one for 'Quantity' variable, calculate the amount (Product of E-Voucher Amount and Quantity and set it in the 'E-Voucher Amount Price' variable.

Please refer below script. You will have to write similar one.




Client Script:

function onChange(control, oldValue, newValue, isLoading) {
   if (isLoading || newValue == '') {
      return;
   }

   //Type appropriate comment here, and begin script below

   var a= g_form.getValue('e_voucher_amount');
   alert(a);
   var b = parseInt(a);

   var c= g_form.getValue('quantity');
   alert(c);
   var d = parseInt(c);

   var mult = b*d;
   alert(mult);

   g_form.setValue('e_voucher_price', mult.toString());

}


Kindly mark the post helpful.
Thanks
vicky27
Tera Contributor

Hi All ,

Can anyone help , how we can populate "requested For" variable when Manager logged in and push the Group members to the choice ???

Thanks in advance.

Abhilash
Tera Contributor

@vicky27, you can add a simple reference qualifier to you requested for variable(which i believe is reference from user table).



manager.name is javascript:gs.getUserDisplayName()



Which would help you to display user's who manager is logged in user

dgarad
Giga Sage

Hi @vicky27

Please refer to the screenshot.




Mohan raj
Mega Sage

Hi @nowGurukul,

I have successfully completed week 2 challenge and screenshot are attached below.

Modules:




Catalog item




































Record Producer




Regards,

T Mohan.

Sivasangeethp
Tera Contributor



Hi @SarthakShri21



Please check



Raise E-Wallet Request for your Mentee

Client script :



  1. Appreciation amount setting






function onChange(control, oldValue, newValue, isLoading) {

    if (isLoading || newValue == '') {

        amountSetting(newValue);

    }



    amountSetting(newValue);

}

function amountSetting(newValue){



if (newValue == 'Pat on the Back Award') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 300');

}

if (newValue == 'On-Spot Award') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 400');

}

if (newValue == 'Best Employee of the month') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 500');

}

if (newValue == 'Successful Go-Live Appreciation') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 250');

}

if (newValue == 'Escalation Handling Appreciation') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 200');

}

if (newValue == 'Best Newcomer Award') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 600');

}

if (newValue == 'Rising Star Award') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 800');

}

if (newValue == 'Extraordinary Employee Award') {

    g_form.setValue('u_e_wallet_amount_to_be_added', 'Rs. 1000');

}



//Type appropriate comment here, and begin script below



}





E-Voucher Request



Client script:



  1. E-Voucher Amount options visibility




function onChange(control, oldValue, newValue, isLoading) {

    if (isLoading || newValue == '') {

        getVouchertype();

    }

    g_form.clearValue('u_e_voucher_amount');

    getVouchertype();



}



function getVouchertype() {



    g_form.clearOptions('u_e_voucher_amount');



    // 100

    if (newValue == 'Food Delivery') {

        g_form.addOption('u_e_voucher_amount', '100', '100', 1);



    } else {

        g_form.removeOption('u_e_voucher_amount', '100');



    }

    //200

    if (newValue == 'Food Delivery' || newValue == 'E-Commerce') {

        g_form.addOption('u_e_voucher_amount', '200', '200', 2);



    } else {

        g_form.removeOption('u_e_voucher_amount', '200');



    }



    // 250

    if (newValue == 'Sports Wear' || newValue == 'E-Commerce') {

        g_form.addOption('u_e_voucher_amount', '250', '250', 3);

    } else {

        g_form.removeOption('u_e_voucher_amount', '250');



    }

    //400

    if (newValue == 'Shopping' || newValue == 'Food Delivery') {

        g_form.addOption('u_e_voucher_amount', '400', '400', 4);

    } else {

        g_form.removeOption('u_e_voucher_amount', '400');



    }

    //500

    if (newValue == 'Sports Wear' || newValue == 'E-Commerce' || newValue == 'Shopping') {

        g_form.addOption('u_e_voucher_amount', '500', '500', 5);

    } else {

        g_form.removeOption('u_e_voucher_amount', '500');



    }

    // 750

    if (newValue == 'Sports Wear' || newValue == 'Shopping') {

        g_form.addOption('u_e_voucher_amount', '750', '750', 6);

    } else {

        g_form.removeOption('u_e_voucher_amount', '750');



    }

    //1000

    if (newValue == 'Sports Wear' || newValue == 'Shopping' || newValue == 'E-Commerce' || newValue == 'Food Delivery') {

        g_form.addOption('u_e_voucher_amount', '1000', '1000', 7);

    } else {

        g_form.removeOption('u_e_voucher_amount', '1000');



    }

    //Type appropriate comment here, and begin script below



}



  1. E-Voucher Price calc:




function onChange(control, oldValue, newValue, isLoading) {

   if (isLoading || newValue == '') {

      return;

   }

   var Quantity=newValue;

   var amount=g_form.getValue('u_e_voucher_amount');

   var price=amount*Quantity;

   g_form.setValue('u_e_voucher_price',price);



   //Type appropriate comment here, and begin script below



}



  1. E-Voucher Brand options visibility:




function onChange(control, oldValue, newValue, isLoading) {

    if (isLoading || newValue == '') {

        getVouchertype();

    }

    g_form.clearValue('u_e_voucher_brand');

    getVouchertype();



}

//E-Commerce

function getVouchertype() {

    // g_form.clearOptions('u_e_voucher_brand');



    if (newValue == 'E-Commerce') {

        g_form.addOption('u_e_voucher_brand', 'Flipkart', 'Flipkart', 1);

        g_form.addOption('u_e_voucher_brand', 'Amazon', 'Amazon', 2);

        g_form.addOption('u_e_voucher_brand', 'Myntra', 'Myntra', 3);



    } else {

        g_form.removeOption('u_e_voucher_brand', 'Flipkart');

        g_form.removeOption('u_e_voucher_brand', 'Amazon');

        g_form.removeOption('u_e_voucher_brand', 'Myntra');

    }

    //Shopping

    if (newValue == 'Shopping') {

        g_form.addOption('u_e_voucher_brand', 'Lifestyle', 'Lifestyle', 1);

        g_form.addOption('u_e_voucher_brand', 'Allen Solly', 'Allen Solly', 2);

    } else {

        g_form.removeOption('u_e_voucher_brand', 'Lifestyle');

        g_form.removeOption('u_e_voucher_brand', 'Allen Solly');



    }

    // Food Delivery

    if (newValue == 'Food Delivery') {

        g_form.addOption('u_e_voucher_brand', 'Zomato', 'Zomato', 1);

        g_form.addOption('u_e_voucher_brand', 'Swiggy', 'Swiggy', 2);



    } else {

        g_form.removeOption('u_e_voucher_brand', 'Zomato');

        g_form.removeOption('u_e_voucher_brand', 'Swiggy');



    }



    // Sports Wear

    if (newValue == 'Sports Wear') {

        g_form.addOption('u_e_voucher_brand', 'Puma', 'Puma', 1);

        g_form.addOption('u_e_voucher_brand', 'Adidas', 'Adidas', 2);

        g_form.addOption('u_e_voucher_brand', 'Nike', 'Nike', 3);

    } else {

        g_form.removeOption('u_e_voucher_brand', 'Puma');

        g_form.removeOption('u_e_voucher_brand', 'Adidas');

        g_form.removeOption('u_e_voucher_brand', 'Nike');

    }



    //Type appropriate comment here, and begin script below



}



  1. E-Voucher Price calc:




function onChange(control, oldValue, newValue, isLoading) {

   if (isLoading || newValue == '') {

      return;

   }

   var Quantity=g_form.getValue('u_quantity');

   var amount=newValue;

   var price=amount*Quantity;

   g_form.setValue('u_e_voucher_price',price);



   //Type appropriate comment here, and begin script below



}







SunilKumar_P
Giga Sage

Hello @nowGurukul,



I have completed #Week_2 challenege:



Application Menu/Modules:




All Employees - List of Employee Table all records.




My Employees – List of employees whose manager is Me (logged in user).




Create New Employee - New form to create Employee record.




My Requests - List of E-Wallet Request requested by Me (logged in user).




Requests Assigned to Me: List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents.




Requests Assigned to My Group: List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.




Closed E-Wallet Request: Available to only HR Agents. List of E-Wallet Requests which are closed.




Catalog Item: E-Voucher Request:




E-Voucher Type: E-Commerce:




E-Voucher Type: Shopping:




E-Voucher Type: Food Delivery




E-Voucher Amount:







Quantity:






Record Producer: Raise E-Wallet Request for your Mentee






Type of Award:




E-Wallet Amount:


Watch List:




Regards,

Sunil







Khan Ejaz
Tera Contributor
Code for value depending on E - Voucher Type :


function onChange(control, oldValue, newValue, isLoading) {
    if (isLoading || newValue == '') {
        g_form.clearOptions('u_e_voucher_brand');
        g_form.addOption('u_e_voucher_brand', 'u_flip', 'Flipkart', '1');
        g_form.addOption('u_e_voucher_brand', 'u_amazon', 'Amazon', '2');
        g_form.addOption('u_e_voucher_brand', 'u_myntra', 'Myntra', '3');
        g_form.clearOptions('u_e_voucher_amount');
        g_form.addOption('u_e_voucher_amount', '200', '200', '1');
        g_form.addOption('u_e_voucher_amount', '250', '250', '2');
        g_form.addOption('u_e_voucher_amount', '500', '500', '3');
        g_form.addOption('u_e_voucher_amount', '1000', '1000', '4');
        return;
    }
    if (newValue == 'u_e_commerce') {
        g_form.clearOptions('u_e_voucher_brand');
        g_form.addOption('u_e_voucher_brand', 'u_flip', 'Flipkart', '1');
        g_form.addOption('u_e_voucher_brand', 'u_amazon', 'Amazon', '2');
        g_form.addOption('u_e_voucher_brand', 'u_myntra', 'Myntra', '3');
        g_form.clearOptions('u_e_voucher_amount');
        g_form.addOption('u_e_voucher_amount', '200', '200', '1');
        g_form.addOption('u_e_voucher_amount', '250', '250', '2');
        g_form.addOption('u_e_voucher_amount', '500', '500', '3');
        g_form.addOption('u_e_voucher_amount', '1000', '1000', '4');

    } else if (newValue == 'u_shopping') {
        g_form.clearOptions('u_e_voucher_brand');
        g_form.addOption('u_e_voucher_brand', 'u_lifestyle', 'Lifestyle', '1');
        g_form.addOption('u_e_voucher_brand', 'u_allen', 'Allen Solly', '2');
        g_form.clearOptions('u_e_voucher_amount');
        g_form.addOption('u_e_voucher_amount', '250', '250', '1');
        g_form.addOption('u_e_voucher_amount', '400', '400', '2');
        g_form.addOption('u_e_voucher_amount', '500', '500', '3');
        g_form.addOption('u_e_voucher_amount', '1000', '1000', '4');


    } else if (newValue == 'u_food') {
        g_form.clearOptions('u_e_voucher_brand');
        g_form.addOption('u_e_voucher_brand', 'u_zomata', 'Zomato', '1');
        g_form.addOption('u_e_voucher_brand', 'u_swiggy', 'Swiggy', '2');
        g_form.clearOptions('u_e_voucher_amount');
        g_form.addOption('u_e_voucher_amount', '100', '100', '1');
        g_form.addOption('u_e_voucher_amount', '200', '200', '2');
        g_form.addOption('u_e_voucher_amount', '400', '400', '3');
        g_form.addOption('u_e_voucher_amount', '1000', '1000', '4');

    } else if (newValue == 'u_sports') {
        g_form.clearOptions('u_e_voucher_brand');
        g_form.addOption('u_e_voucher_brand', 'u_puma', 'Puma', '1');
        g_form.addOption('u_e_voucher_brand', 'u_addidas', 'Addidas', '2');
        g_form.addOption('u_e_voucher_brand', 'u_nike', 'Nike', '3');
        g_form.clearOptions('u_e_voucher_amount');
        g_form.addOption('u_e_voucher_amount', '250', '250', '1');
        g_form.addOption('u_e_voucher_amount', '500', '500', '2');
        g_form.addOption('u_e_voucher_amount', '750', '750', '3');
        g_form.addOption('u_e_voucher_amount', '1000', '1000', '4');
    }
}
Community Alums
Not applicable

Any suggestions on how to auto-populate these fields?






v1z-D
Tera Contributor

Hi @nowGurukul, Can you help me explain this better "1. Project/Account – Read-Only. Auto-populate based on Requested By from Employee record."
How to achieve this without having 'Requested By' field in the employee table?

I tried making required by field in the catalog as reference to employee table but not able to get project/account field values auto populate.
Appreciate if anyone can let me know how did you all achieve this from variable configuration.

Community Alums
Not applicable

Hi @v1z-D Please refer to the screenshots below







v1z-D
Tera Contributor

@Community Alums

This is for auto populate project/account based on requested by ?



you got this just by doing dot walk to project/account?
More details..



 I got this by client script and script include. I tried to without script but couldn’t get it.

if you got this without these scripts let me know how . I’m interested to know more



Thank you for updating

v1z-D
Tera Contributor

nowGurukul ServiceNow Hands-On Challenge 2024 #Week_2







Application Menu/Modules:








Modules:

1.All Employees: List of Employee Table all records.







  1. My Employees – List of employees whose manager is Me (logged in user).







3.Create New Employee – New form to create Employee record.



  1. My Requests – List of E-Wallet Request requested by Me (logged in user).





  1. Requests assigned to Me - List of E-Wallet Request assigned to me (logged in user). This module should be visible only to HR Agents.



    1. v1zD_9-1708463796659.png



  1. Requests assigned to My Group - List of E-Wallet Request assigned to my Groups. This module should be visible only to HR Agents.



  1. Closed E-Wallet Requests – Available to only HR Agents. List of E-Wallet Requests which are closed.



Catalog Items:

Requested By – Read-only, Auto populated by logged in user.


  1. Project/Account – Read-Only. Auto-populate based on Requested By from Employee record.


  1. E-Voucher Type - Choice Values-



  2. E-Voucher Brand: Choice Values with None option:


  1. E-Voucher Amount:


  1. Quantity: Choice Values:




  1. E-Voucher Price: Read-Only and Auto-populate based on E-Voucher Amount and Quantity. (E-Voucher Amount*Price).


Record ProducerRaise E-Wallet Request for your Mentee


  1. Requested By – Read-only, Auto populated by logged in user.


    2. Requested For – Show only the users whose manager is logged in user.


  1. Type of Award/Appreciation – Choice Values:


  1. E-Wallet Amount to be added - Based on Type selected, auto populate the amount linked to it.


  1. Watchlist – List of users who can be added like Senior Manager, Delivery Head, Account Manager, etc.




Thank You





Community Alums
Not applicable

Hi @v1z-D,



How did you add the watchlist button?

Carlos Camacho
Mega Sage
Mega Sage

Hi,
 Week 2 completed. Let's move forward!

v1z-D
Tera Contributor

@Community Alums

I added in watchlist variable - type specification- variable attributes - glide_list

Community Alums
Not applicable

To populate the project account on catalog item is not working, io am trying using GlideAjax.






Please help me where i am going wrong.



Community Alums
Not applicable

Hi @nowGurukul,



Please help to autopopulate the below.

Project/Account – Read-Only. Auto-populate based on Requested By from Employee record.



Requested by refence to user table, and trying to autopopulate Project/Account by GlideAjax but it is not working.





dgarad
Giga Sage

Hi @Community Alums

try the as per the below screen shot.






Community Alums
Not applicable

Hi @dgarad,



Can you please confirm Requested By referring to sys_user or Employee table. Because when I have created the variable Requested By which refer to sys_user table, in this case in autopopulate referencece is taking the sys_user and i am enable to to change it as employee table.

dgarad
Giga Sage

Hi @Community Alums

Requested By referring to Employee table.

AnimeshP_96
Tera Guru

Hello @nowGurukul

I have completed all the things for the week 2.Snapshots down below ,Let me know if anything is missed.
















































Version history
Last update:
‎01-08-2024 02:10 AM
Updated by:
