Mini-Lab: Writing Entries Into the System Log Using Ajax and JSON

[sabell2012]

NOTE: MY POSTINGS REFLECT MY OWN VIEWS AND DO NOT NECESSARILY REPRESENT THE VIEWS OF MY EMPLOYER, ACCENTURE.

DIFFICULTY LEVEL:    INTERMEDIATE
Assumes having taken the class SSNF and has good intermediate level of knowledge and/or familiarity with Scripting in ServiceNow.

---

Have you ever wanted to be able to send errors to the System Log from a Client Script? a UI Action? a UI Policy? Well, in this mini-lab article I will show you a method for doing so.

I had been wanting gs.log/gs.info on the Client (i.e. Browser) for some time when one day it occurred to me that I could write a simple reusable UI Script / Ajax Script Include combo that would give me that capability.

I will be using techniques that I described in my previous two articles:

Pragmatic Patterns: Ajax - Architecting Your Code

Mini-Lab: Using Ajax and JSON to Send Objects to the Server

Requirements

1. Ability to write to the system log from a Client Script, UI Action, or UI Policy script.
2. Must be re-usable from any of those mechanisms (i.e. emulate gs.log/gs.info on the server side)

Design

1. Create an Ajax Script Include with a function that will take a "message" string and write it to the System Log using gs.log, gs.info, gs.debug, gs.error, or gs.warn.
   • The gs.log part will be straight forward, we simply do something like log(string, location) and translate that on the server side to gs.log(string, location).
   • The gs.info et. al. part is a bit trickier.   Here we will have to be a bit innovative.   Something like logextended(string, [array of values], type) may need to be done.
2. Create a UI Script with a function that will take a string and communicate it via Ajax to an Ajax Script Include.
   • Make this a Function Library that will be callable similar to gs.
3. Write an example onLoad Client Script that will call the UI Script function.   This will be used in testing.

NOTE: In examining the design I determined that a Script Include Function Library would be overkill as the number of code lines needed to write to the System Log would be too few to warrant extraction.

Lab 1.1:   Writing Log Entries Into The System Log From the Browser

Development

We will start with a bottom up development approach.

Ajax Script Include (Design Element #1)

1. Navigate to System Definition -> Script Includes.   This will display the Script Includes list view.

2. Click on the New button.   This will display a blank Script Include form.

3. Fill in the form with the following:

• Name: SystemLoggerAjax
• Client Callable: Checked (this will cause the Ajax template to be added to the Script field).
• Accessible from: All application scopes
• Active: checked
• Description:   System Logging functions
• Script:

var SystemLoggerAjax = Class.create();
SystemLoggerAjax.prototype = Object.extendsObject(AbstractAjaxProcessor, {

	// simple logging function
	systemLog: function() {
		var message = this.getParameter('sysparm_message');
		var loggingSource = this.getParameter('sysparm_logging_source');

		gs.info(message, loggingSource);
	},

	// complex logging function
	systemLogExtended: function() {
		var message = this.getParameter('sysparm_message');

		// convert the JSON object back to our array
		var messageArgs = JSON.parse(this.getParameter('sysparm_args'));

		// type of log message to be executed
		var messageType = this.getParameter('sysparm_type').toLowerCase();

		switch (true) {
			case messageType == 'info':
				gs.info(message, messageArgs);
				break;
			case messageType == 'debug':
				gs.debug(message, messageArgs);
				break;
			case messageType == 'warn':
				gs.warn(message, messageArgs);
				break;
			case messageType == 'error':
				gs.error(message, messageArgs);
				break;
		}
	},

	type: 'SystemLoggerAjax'

});

Your AJAX Script Include should look like this:

UI Script (Design Element #2)

1. Navigate to System UI -> UI Scripts.   This will display the UI Scripts list view.

2. Click on the New button.   This will display a blank UI Script form.

3. Fill in the form with the following:

• Name: LoggingUtils
• Global: Checked
• Active: Checked
• Description: System Logging Functions
• Script:

var log = Class.create();

// Simple logging function
log.log = function(message, loggingSource) {
loggingSource = '[BROWSER] ' + loggingSource; // spiff up the source a bit

var systemLogger = new GlideAjax('SystemLoggerAjax');
	systemLogger.addParam('sysparm_name','systemLog');
	systemLogger.addParam('sysparm_message', message);
	systemLogger.addParam('sysparm_logging_source', loggingSource);
	systemLogger.getXML(function(result){ }); // no callback action
};

// Complex logging functions - can probably be refactored
log.info = function(message) {
	_syslogExt(message, _toArray(arguments), 'info');
};

log.warn = function(message) {
	_syslogExt(message, _toArray(arguments), 'warn');
};

log.debug = function(message) {
	_syslogExt(message, _toArray(arguments), 'debug');
};

log.error = function(message) {
	_syslogExt(message, _toArray(arguments), 'error');
};

// Transmit complex logging task to server side
function _syslogExt(message, messageArgs, messageType) {

	message = '[BROWSER] ' + message; // spiff up the message
	var systemLogger = new GlideAjax('SystemLoggerAjax');
	systemLogger.addParam('sysparm_name','systemLogExtended');
	systemLogger.addParam('sysparm_message', message);

	// method for transmitting complex objects to the server
	systemLogger.addParam('sysparm_args', JSON.stringify(messageArgs));
	systemLogger.addParam('sysparm_type', messageType);
	systemLogger.getXML(function(result){ }); // no callback action

}

// Simple function to convert "argument" arrays into a true array for manipulation
function _toArray(source) {
	var target = [];

	// shave off the first argument - this is our message line
	for (var i=1; i < source.length; i++) {
		target.push(source[i] + '');
	}

	return target;
}

Your UI Script should look like this:

Client Script (Design Element #3)

1. Navigate to System Definition -> Client Scripts.   This will display the Client Script List View.

2. Click on the New button.   This will display a blank Client Script form.

3. Fill in the form with the following:

• Name: syslog Example
• Table: Incident
• UI Type: Desktop
• Type: onLoad
• Active: checked
• Inherited: unchecked
• Global: checked
• Description:   System Logger Example
• Script:

function onLoad() {
	var incidentNumber = g_form.getValue('number');
	var userName = g_user.userName;

	// Test the simple logging function
	log.log('---> The form has finished loading and is ready for user input. Incident: ' + incidentNumber,
		'CS:syslog example');

	// Test the complex logging function
	log.info('---> Test {0}: form has finished. userID = {1}, incident = {2}', '1', userName, incidentNumber);

	log.error('---> Test {0}: form has finished. userID = {1}, incident = {2}', '2', userName, incidentNumber);
}

Your Client Script should look like this:

Unit Testing

1. Navigate to Incident -> Open. The Open Incident list view will be displayed.

2. Choose an open Incident (click on the incident number to open the form).

3. Navigate to System Logs -> System Log -> All. The System Log will be displayed.

4. Order by Created Date descending.

5. Filter the Message column with: *--->

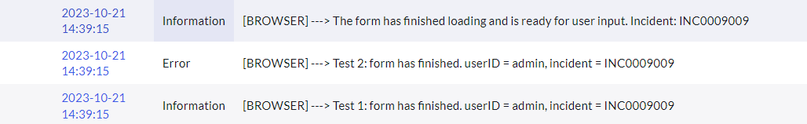

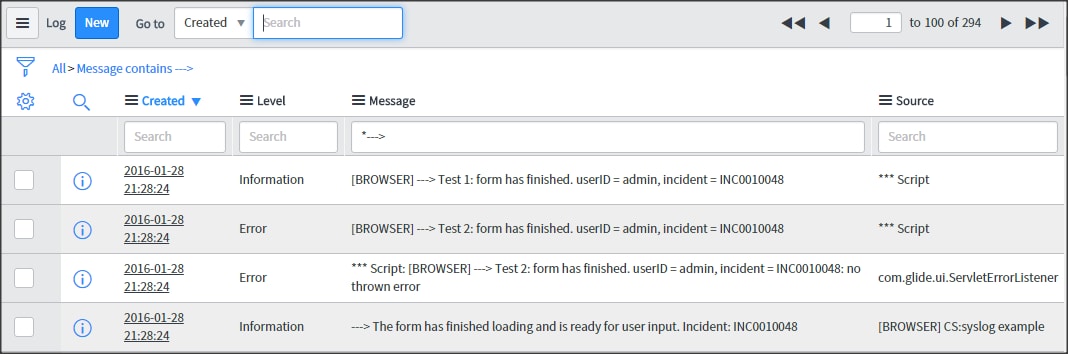

6. Note the three new entries. Your results should look something like this:

And there you have it!   A way to write entries to the System Log from the Client (browser) side!

Best practices demonstrated:

1. Maintainability.
2. Extensibility.
3. Coding Best Practice: Another method of logging unit test results.

NOTE: If you are working with this example in your PDI and run into issues with the system not working right: There is a problem with the Client Scripts being editable, or your client script runs into an issue in Global. I found that flipping the glide.script.block.client.globals to false and then doing a cache.do seems to clear it all up...after a couple of tries. This seem to fix the problem with the OOB client scripts "Validate Client Script w/o Server Obj" and "Validate Client Script Func Declaration" as well. I had to initially deactivate both just to work on my Client Script. Really weird/odd behavior that I wasn't able to replicate on a real DEV instance. Check out this post if you want to know more as it was illuminating: Isolate Script in London (thanks to Alikutty A for digging this stuff out).

Enjoy!

Steven Bell.

If you find this article helps you, don't forget to log in and mark it as "Helpful"!

---

Originally published on: 01-28-2016 09:57 AM

I updated the code and brought the article into alignment with my new formatting standard.
