Advanced Reference Qualifier Based-On Current Variable

codechaser
Giga Expert

Need help setting-up an advanced reference qualifier that uses the 'u_term_code' field from the *Term drop-down as a dependency and returns a list of courses that share the value.

javascript: u_term_code = current.variables.u_term_code;

Above, is the code I currently have.


47 REPLIES 47

The field 'u_term_code' on the courses table is now referencing the 'u_term_code' field on the terms table, which is a string.   I re-populated the courses table to match this, but is now displaying the sys_id in the term_code field.

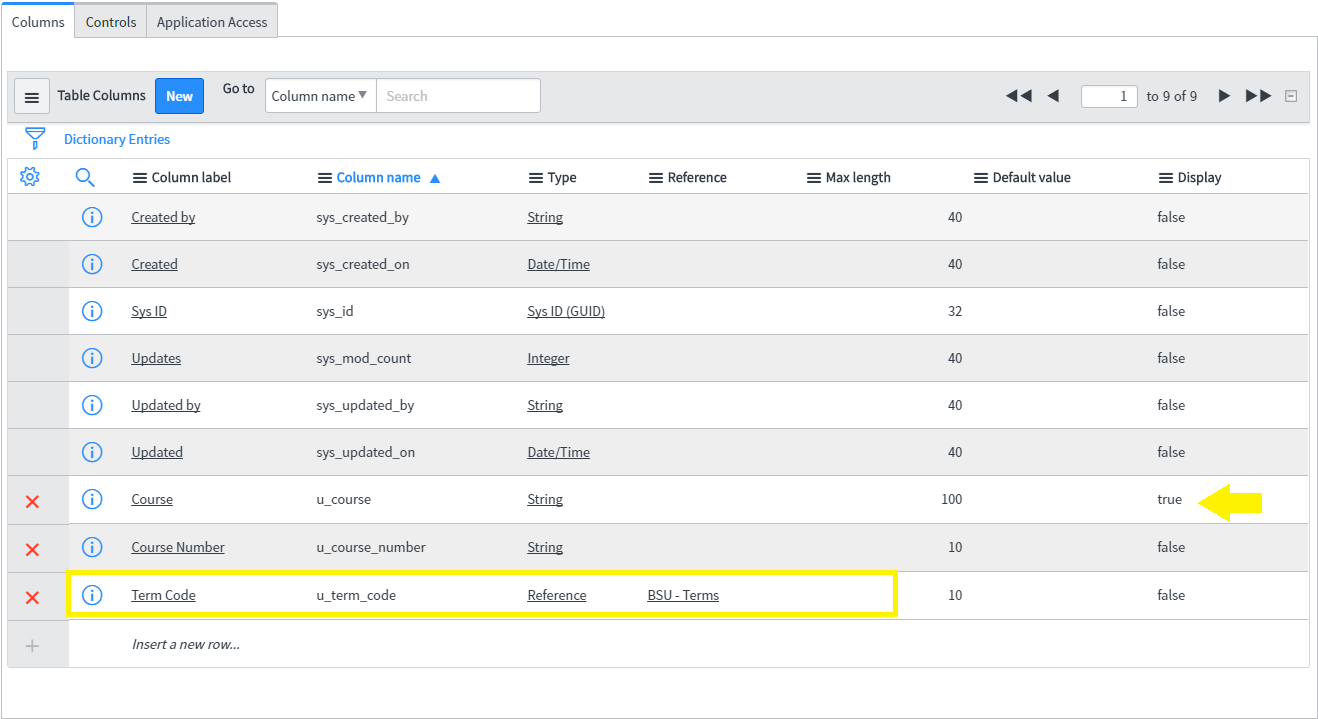

I am including some screenshots, below:






Consequently, adding the Advanced reference qualifier 'javascript: 'u_term_code = '+current.variables.term_req; ' under courses does not return an answer.


Is that Columns screenshot of the courses table?   If so please view the Term table and validate what dictionary entry has display = true and make sure its only set on 1 record and the value you want to show up in the reference fields.



Also look at your course variable and make sure there is nothing in the ref_qual_elements field.

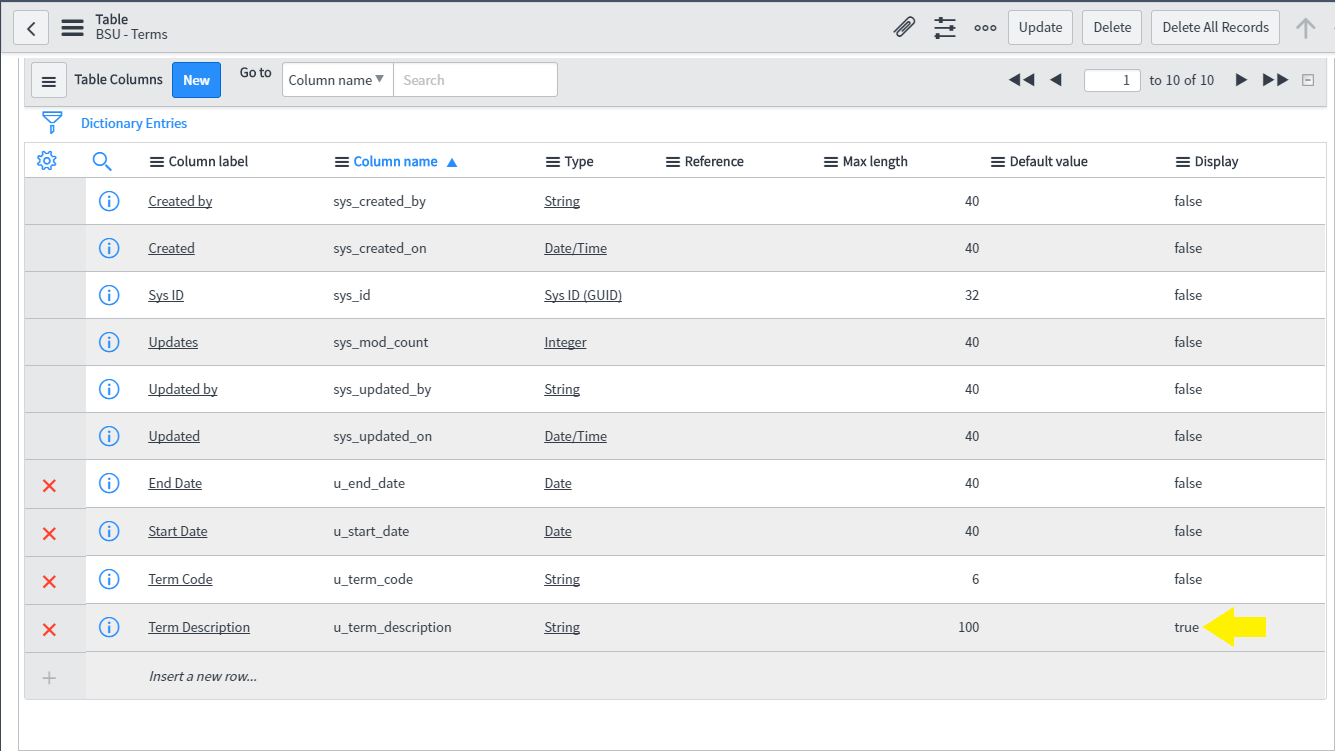

I verified there is nothing in the ref_qual_elements field in courses.   Below, is a screenshot of the terms table.   Currently, the Term_Description field is being displayed on the form.




If you click one of the term codes in this list:





Does the Term show up with the term description in your Term Code field versus the SysID?   Please also confirm that your term_req variable is also a reference to the term table.


Here is a screenshot of the two fields on the form, itself.





As you can see, the term description does display, correctly - but no values are returned under courses.   The only thing I can think of is the term field is a string on the Term table, which courses is referencing.   At the moment, we have to hard code these variables for testing purposes.
