Attachments

[Khozema Attar1]

Hello Experts,

We are performing a third-party incident Integration, we need to send attachments to the third party while we create a new incident via business rule only.

we have written a business rule which has 2 fields: FileName & FileType through which we need to send the attachments to the third-party.

Can anyone help on how to send the attachments to the third-party through the below business rule.

Thanks in advance

Khozema Attar

[snehabinani26]

Hi,

Below Link may be useful for your requirement:

Sending an attachment to ServiceNow via Web Services - ServiceNow Guru

ServiceNow Attachment Files via Web Service - YouTube

Attachment API - POST /now/attachment/upload

[Khozema Attar1]

Hi Sneha,

I was able to send attachments to third party .

But, as we are using SOAP for the integration ,attachments of size greater than 5MB are not transmitted.

So, Is there a way I can call REST API's POST method in my existing business rule to send attachments.

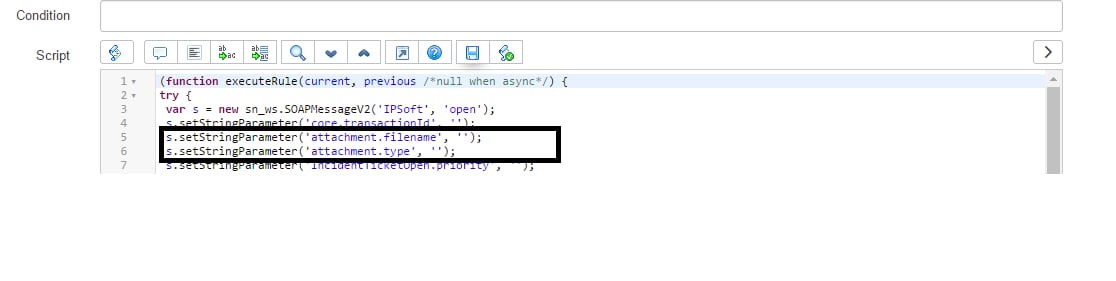

Find the Screenshot of the BR:

Thanks & Regards

Khozema

[Ankur Bawiskar]

Hi Khozema,

getBytes() method won't work for file more than 5MB. Use below code to getBytes() for any file which is less than 5MB or greater than 5MB

var gr = new GlideRecord("sys_attachment");

  gr.addQuery("table_sys_id", current.sys_id);

  gr.addQuery("table_name", current.getTableName());

  gr.query();

  if (gr.next()){

  var StringUtil = new GlideStringUtil();

  var gsa = GlideSysAttachmentInputStream(gr.sys_id.toString());

  var baos = new Packages.java.io.ByteArrayOutputStream();

  gsa.writeTo(baos);

  baos.close();

var base64EncodedData =   StringUtil.base64Encode(baos.toByteArray());

Mark Correct if this solves your issue and also hit Like and Helpful if you find my response worthy based on the impact.

Thanks

Ankur

[Khozema Attar1]

Hi   Ankur Bawiskar,

Can you rectify my code according to your script:

(function executeRule(current, previous /*null when async*/) {

  var attachment = new GlideRecord('sys_attachment');

  attachment.addQuery('table_sys_id', current.sys_id);

      attachment.addQuery('table_name', current.getTableName());

  attachment.query();

  while (attachment.next()) {

      sendAttachment(attachment);

}

  function sendAttachment(att) {

      try {

              var sa = new GlideSysAttachment();

              var binData = sa.getBytes(att);

              var encData = GlideStringUtil.base64Encode(binData);

              var file_name = att.file_name.toString();

              sendRequest(encData, file_name);

      } catch (Exception) {

              gs.log('Failed sending Attachment to due to Exception: ' + Exception);

      }

}

  function sendRequest(encData, file_name) {

      //Set up variables

  s.setStringParameter('attachment.filename', file_name);

              s.setStringParameter('attachment.type',encData);

}

})(current, previous);

Thanks & Regards

Khozema
