change request task relationship history or worklog

[harishdasari]

Hi,

How to find the work history of change request task relationship.

Information like who associated the incidents with this change request and when they have attached the incident to this change request.

Thank you.

[Andrii]

Related Lists are tables that have a field referencing to current. Perhaps you need to investigate related table record history to see if referencing field has been populated or erased.

[harishdasari]

Hi ANDRII,

Can you please provide some steps how can I check the history.

I have checked the parent and child record tables history, but I don't find the logs.

Thanks

[Andrii]

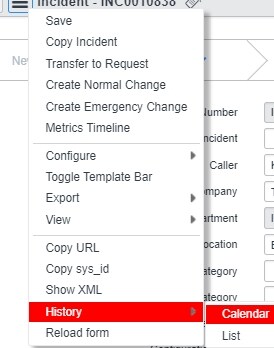

If you know the exact record that was in related list - go to that record and in header context menu (as admin) slect History - >Candar - that will bring you all changes to record.

[LaurentChicoine]

Hi Harish,

I had the same requirement/question.

What I did was to look how it was done on the cmdb_rel_ci table (which is used for CMDB relationships).

How it is done on that table is with a business rule called Audit Relationship Changes. That business rule also exists on other table. So first you want to copy that business rule and apply it to the task_rel_task table.

That alone will not work as the RelationshipAuditor script include has a setup specific to the tables it is used for. Gladly that a script include we can edit (or create a new one).

Personally I prefer editing OOTB script instead of copying them that way we get a change to review the code that gets modified by SNOW when the upgrade is skipped because of script modification. But based on your preference you could also create a new script include or put the required code directly in the business rule.

Here is the updated script include:

gs.include("PrototypeServer");


var RelationshipAuditor = Class.create();


RelationshipAuditor.prototype = {
   initialize : function() {
   },


   audit : function(gr, action) {
       if (!this._setup(gr, action))
               return;


       if (action == 'insert')
           this._auditInsert(gr);
       else if (action == 'delete')
           this._auditDelete(gr);
       else if (action == 'update') {
           this._auditInsert(gr);
           if (this._setup(previous))
               this._auditDelete(previous);
       }
   },

   _setup : function(gr, action) {
       var tgr = new GlideRecord('cmdb_ci');
       var tgr2 = new GlideRecord('cmdb_ci');
       if (gr.instanceOf('cmdb_rel_ci')) {
           if (gr.parent.nil() || gr.child.nil() || !tgr.get(gr.parent) || !tgr2.get(gr.child))
                 return false;

           if (tgr.sys_class_name.nil() || tgr2.sys_class_name.nil())
                 return false;

           if(action == 'update' && !gr.parent.changes() && !gr.child.changes() && !gr.type.changes())
                 return false;

           this.parent_auditor = new GlideAuditor(tgr.sys_class_name, gr.parent);
           this.child_auditor = new GlideAuditor(tgr2.sys_class_name, gr.child);
           var dn = 'cmdb_rel_type';
           var reason = 'CI Relationship Change';
       } else if (gr.instanceOf('cmdb_rel_person')) {
           if (gr.ci.nil() || !tgr.get(gr.ci) || gr.user.nil())
               return false;

           if (tgr.sys_class_name.nil())
                 return false;


           this.parent_auditor = new GlideAuditor(tgr.sys_class_name, gr.ci);
           this.child_auditor = new GlideAuditor('sys_user', gr.user);
           var dn = 'cmdb_rel_user_type';
           var reason = 'User Relationship Change';
       } else if (gr.instanceOf('cmdb_rel_group')) {
           if (gr.ci.nil() || !tgr.get(gr.ci) || gr.group.nil())
               return false;

           if (tgr.sys_class_name.nil())
                 return false;


           this.parent_auditor = new GlideAuditor(tgr.sys_class_name, gr.ci);
           this.child_auditor = new GlideAuditor('sys_user_group', gr.group);
           var dn = 'cmdb_rel_group_type';
           var reason = 'Group Relationship Change';
       } else if (gr.instanceOf('task_rel_task')) {
if(gr.child.nil() || gr.parent.nil() || gr.child.sys_class_name.nil() || gr.parent.sys_class_name.nil()){
   return false;
}
   this.parent_auditor = new GlideAuditor(gr.parent.sys_class_name, gr.parent);
   this.child_auditor = new GlideAuditor(gr.child.sys_class_name, gr.child);
   var dn = 'task_rel_type';
   var reason = 'Task Relationship Change';
   }


       this.parent_auditor.setReason(reason);
       this.child_auditor.setReason(reason);
       var type = new GlideRecord(dn);
       type.get(gr.type);
       this.parent_descriptor = type.getValue('parent_descriptor');
       this.child_descriptor = type.getValue('child_descriptor');
       if (typeof(g_rel_audit_cp) == 'undefined')
           g_rel_audit_cp = GlideCounter.next('internal_checkpoint');


       return true;
   },


   _auditInsert : function(gr) {
       if (gr.instanceOf('cmdb_rel_ci'))
             this._auditCIInsert(gr);
       else if (gr.instanceOf('cmdb_rel_person'))
             this._auditUserInsert(gr);
       else if (gr.instanceOf('cmdb_rel_group'))
             this._auditGroupInsert(gr);
else if (gr.instanceOf('task_rel_task'))
this._auditTaskInsert(gr);
   },


   _auditDelete : function(gr) {
       if (gr.instanceOf('cmdb_rel_ci'))
             this._auditCIDelete(gr);
       else if (gr.instanceOf('cmdb_rel_person'))
             this._auditUserDelete(gr);
       else if (gr.instanceOf('cmdb_rel_group'))
             this._auditGroupDelete(gr);
else if (gr.instanceOf('task_rel_task'))
             this._auditTaskDelete(gr);
   },


   _auditGroupInsert : function(gr) {
var modCount = gr.ci.sys_mod_count == 0 ? 1 : gr.ci.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, '(relationship added)', gr.group.getDisplayValue());
modCount = gr.group.sys_mod_count == 0 ? 1 : gr.group.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, '(relationship added)', gr.ci.getDisplayValue());
   },


   _auditGroupDelete : function(gr) {
var modCount = gr.ci.sys_mod_count == 0 ? 1 : gr.ci.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, gr.group.getDisplayValue(), '(relationship removed)');
modCount = gr.group.sys_mod_count == 0 ? 1 : gr.group.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, gr.ci.getDisplayValue(), '(relationship removed)');
   },


   _auditUserInsert : function(gr) {
var modCount = gr.ci.sys_mod_count == 0 ? 1 : gr.ci.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, '(relationship added)', gr.user.getDisplayValue());
modCount = gr.user.sys_mod_count == 0 ? 1 : gr.user.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, '(relationship added)', gr.ci.getDisplayValue());
   },


   _auditUserDelete : function(gr) {
var modCount = gr.ci.sys_mod_count == 0 ? 1 : gr.ci.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, gr.user.getDisplayValue(), '(relationship removed)');
modCount = gr.user.sys_mod_count == 0 ? 1 : gr.user.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, gr.ci.getDisplayValue(), '(relationship removed)');
   },




   _auditCIInsert : function(gr) {
var modCount = gr.parent.sys_mod_count == 0 ? 1 : gr.parent.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, '(relationship added)', gr.child.getDisplayValue());
modCount = gr.child.sys_mod_count == 0 ? 1 : gr.child.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, '(relationship added)', gr.parent.getDisplayValue());
   },


   _auditCIDelete : function(gr) {
var modCount = gr.parent.sys_mod_count == 0 ? 1 : gr.parent.sys_mod_count;
       this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, gr.child.getDisplayValue(), '(relationship removed)');
modCount = gr.child.sys_mod_count == 0 ? 1 : gr.child.sys_mod_count;
       this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, gr.parent.getDisplayValue(), '(relationship removed)');
   },

_auditTaskInsert : function(gr) {
var modCount = gr.parent.sys_mod_count == 0 ? 1 : gr.parent.sys_mod_count;
this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, '(relationship added)', gr.child.getDisplayValue());
modCount = gr.child.sys_mod_count == 0 ? 1 : gr.child.sys_mod_count;
this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, '(relationship added)', gr.parent.getDisplayValue());
},

_auditTaskDelete : function(gr) {
var modCount = gr.parent.sys_mod_count == 0 ? 1 : gr.parent.sys_mod_count;
this.parent_auditor.auditField(null, modCount, g_rel_audit_cp, this.parent_descriptor, gr.child.getDisplayValue(), '(relationship removed)');
modCount = gr.child.sys_mod_count == 0 ? 1 : gr.child.sys_mod_count;
this.child_auditor.auditField(null, modCount, g_rel_audit_cp, this.child_descriptor, gr.parent.getDisplayValue(), '(relationship removed)');
},


}

Functions modified:

• _setup
  • else if (gr.instanceOf('task_rel_task')) block was added
• _auditInsert
  • else if (gr.instanceOf('task_rel_task')) block was added

• _auditDelete
  • else if (gr.instanceOf('task_rel_task')) block was added

Functions added:

• _auditTaskInsert
• _auditTaskDelete
