Configure Flow Designer Rest Step to use OAuth Profile Credentials

bvlo
Tera Expert

‎07-03-2023 10:08 AM

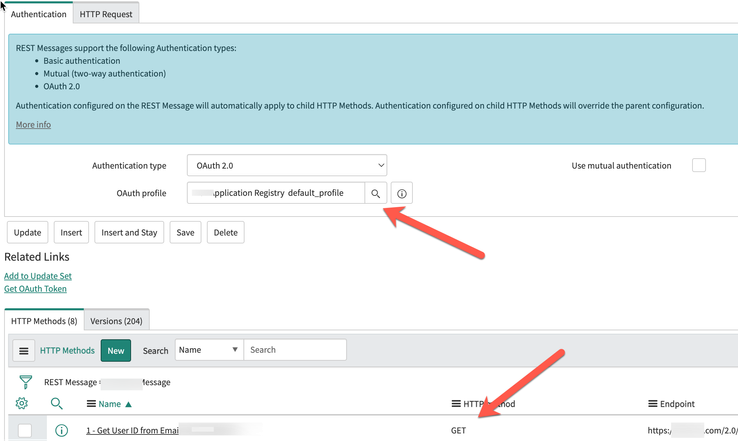

Currently, I have a Rest Message configured to use OAuth 2.0 as its authentication type. I have an HTTP method configured that returns a user id when I pass in an email address.

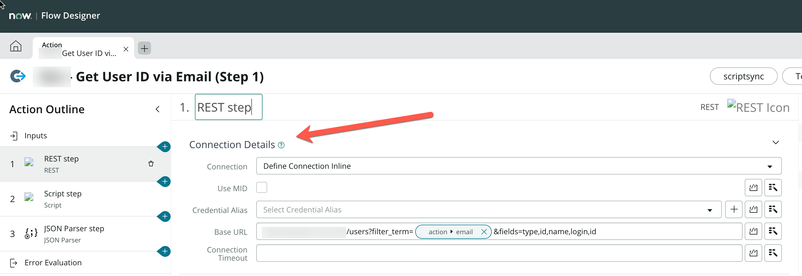

Is there a way to configure the Flow Designer REST step to use the same configured OAuth profile under the connection details?




I am able to use a script in flow designer that utilizes my configured HTTP method, but I would like to utilize the REST step action.

Thank you in advance.




  • 1,894 Views
4 REPLIES 4

NBeheydt
Tera Expert

‎09-25-2023 09:48 AM

Were you able to find a resolution for this?

0 Helpfuls

bvlo
Tera Expert
In response to NBeheydt

‎09-29-2023 01:07 PM

No - what we ended up doing was configuring the rest message in ServiceNow and associating the OAuth profile to that Rest Message. We then used a script step in Flow Designer to call the rest message and pull back outputs. Let me know if you need further details

0 Helpfuls

ganeshpa
Tera Contributor
In response to bvlo

‎01-19-2025 02:20 AM

Looking for same, is it possible to use oauth 2.0 in flow rest step what you showing in above flow rest action.. can we have it in define connection inline ? Is there way to use oauth 2.0 in flow ?

0 Helpfuls

maheshbingi
ServiceNow Employee
ServiceNow Employee

‎03-21-2025 02:43 PM

To configure the Flow Designer REST step to use an OAuth profile, you can utilize theConnection & Credential (C&C) Framework with a Configuration Template. The REST step employs a connection & credential alias record associated with http_connection and oauth_2_0_credentials records. By referencing the desired oauth_entity_profile from oauth_2_0_credentials, you can seamlessly integrate your OAuth setup within the action designer's REST step.



Additionally, you can import a REST Message into a REST Step



For a deeper understanding of OAuth flows in ServiceNow, refer to the following resources:
