Configuring IdP Initiated SSO

stevejarman · ‎08-22-2017

Hi - I am urgently trying to locate the documentation or some sort of guide for configuring IdP Initiated SSO with ServiceNow. Are you able to tell me if that documentation exists, and - if so - where to find it?

tony_barratt · ‎08-22-2017

Hi Steve,

You mention when arriving at the ServiceNow pre-authenticated - that could happen if the user has authenticated via an application that is not ServiceNow but is SSO enabled.

Vice versa as well, if you log in via the IDP as the result of logging into ServiceNow then the user can access the other Enterprise apps without re authenticating - as the idp maintains a log in session for you - and destroys it when you log out.

OK so far?

Also you can configure the SSO to redirect to the idp for log in without having to select "External Login".

Here are some doc links to Multi SSO

https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/integrate/single-sign-on/task/t...

The other way of arriving at the ServiceNow pre-authenticated is when you have authenticated via a Windows domain controller so you get access to your Enterprise resources.

There is a link that refers:

(Workaround) Support Kerberos authentication

This is Service Provider initiated rather idp intiated however.

If the reply was informational, please like, mark as helpful or mark as correct!

stevejarman · ‎08-22-2017

So maybe I'm thinking about this all wrong. Whether or not your initiating your "visit" to the ServiceNow instance from ServiceNow, OR from another authentication portal, the SSO config in ServiceNow is the same? I'd got it into my head that the config requirements were actually different, but maybe that's not the case.

tony_barratt · ‎08-22-2017

Hi Steve,

I am not sure what your current set up is.

Are you using Multi Provider SSO?

If so there is some info here which might be helpful. If you are using say Okta the situation could be different.

https://docs.servicenow.com/bundle/jakarta-servicenow-platform/page/integrate/authentication/concept...

stevejarman · ‎08-23-2017

Thanks for all the info guys. Slowly getting somewhere.

Something else I'm confused about though - in the Multi-Provider SSO, Identity Providers record, is it actually necessary to manually import and assign the certificate under the "x509 Certificate" field?

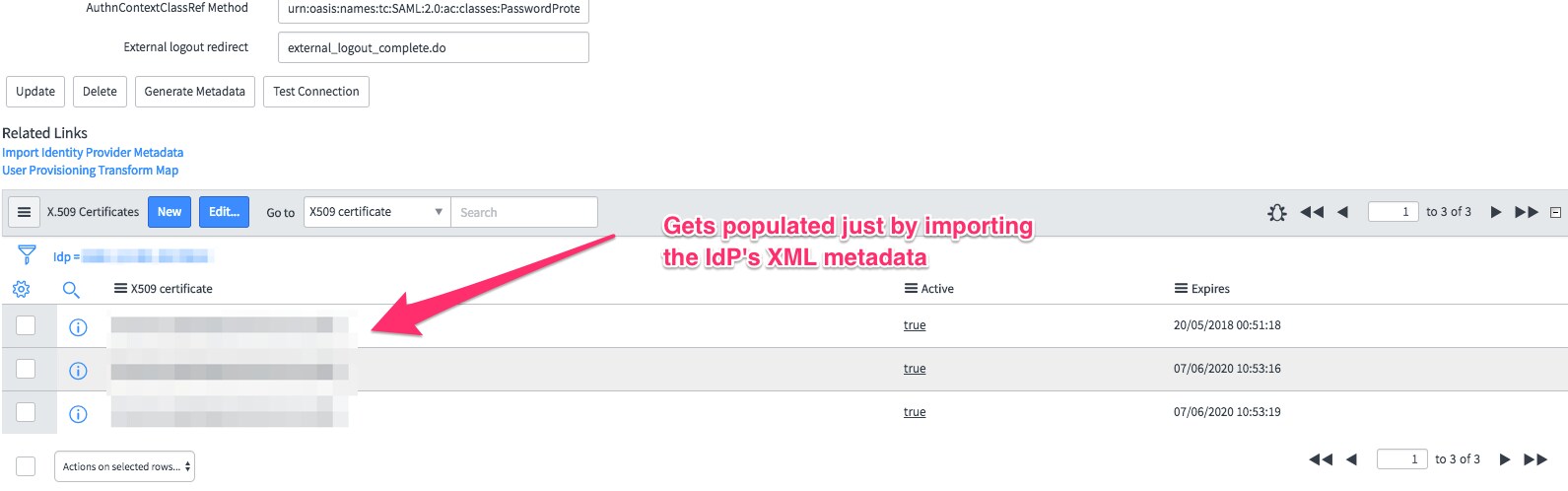

I've noticed that the PEM format certificate appears to be included in the XML metadata export from the IdP. I have one customer who's SSO is working fine, and I didn't import a certificate for them. Just importing the XML file populated the X.509 Certificates related list at the bottom of the record, even though the "x509 Certificate" field itself is blank.

stevejarman · ‎08-28-2017

Anyone know the answer to this one?
