Custom colors on reports

[jcmings]

I'm trying to establish defined colors for different values on reports. For example, I want to display a bar chart with Assignment Groups 1-6 along the x-axis. I am wondering if I can configure this so that Assignment Group 1 is always represented by green, and Assignment Group 2 is always represented by red. Therefore, if I have a second report, but am only showing 5 assignment groups, there is consistency in color across assignment groups between two different reports. Is this possible?

[Slava Savitsky]

You can achieve it by means of the chart colors feature.

[AndersBGS · Accepted solution]

Hi @jcmings ,

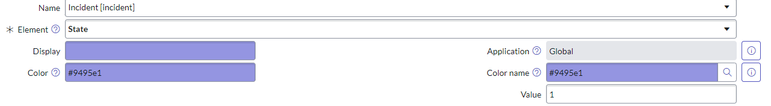

Yes, that is for sure possible. If you through your instance look up chart colors:

In here, there is a very limit of things that you need to set:

Name = Table that your reporting on

Element = column that you have on your X axis

Color name = # color

Color = # color

If my answer has helped with your question, please mark my answer as accepted solution and give a thumb up.

best regards
Anders
