Customize Stage Renderer When Using Flow Designer

Jaeik Lee
Mega Sage

I make flow for RITM process. and i need to modify stage field in RITM.


That is current stage. and i want to hide time(0 Seconds).



I know Stage customize work can if i used Workflow, But i can not change Flow to Workflow for some reason.



How can i do for that?



1 REPLY 1

Maik Skoddow
Tera Patron
Tera Patron

Hi @Jaeik Lee

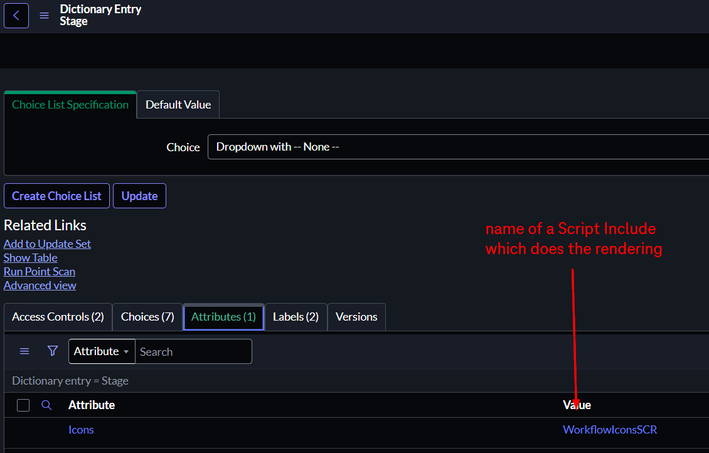

if you open the dictionary entry of the "Stage" column in the sc_req_item table you will find a Dictionary Attribute which references a Script Include that does the rendering:




That Script Include "WorkflowIconsStages" is inherited from Script Includes which does the rendering at the end

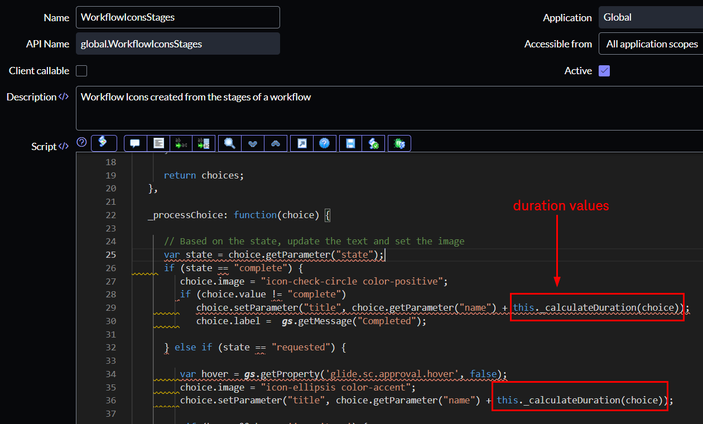

And within its method you can find the portion that adds the duration values:






You can decide whether you want to create a customized version of that script include and reference it in the Dictionary Attribute.

Maik
