Display and Modify Record information

Narmadha PR
Tera Contributor

a week ago

Hi,
I have a requirement in CSM where I need to customise CSM/FSM Configurable workspace. In the contextual sidebar of a custom case record, Record information icon is not visible.

I want to make sure it is displayed and after which, I need to display a custom card inside.

I have a reference field called "Restaurant" in my custom case record, which in turn has reference field called "Owner" which references the User table.

So basically - Custom case record has Restaurant field -> Restaurant has Owner -> Owner has name and phone number

I want to display the owner information in the Record information.



1. How do I display the tab "Record Information"?
2. How do I display a custom Card that has the Owner details in the Record information?

0 Helpfuls
  • 277 Views
3 REPLIES 3

Rakesh_M
Kilo Sage

a week ago

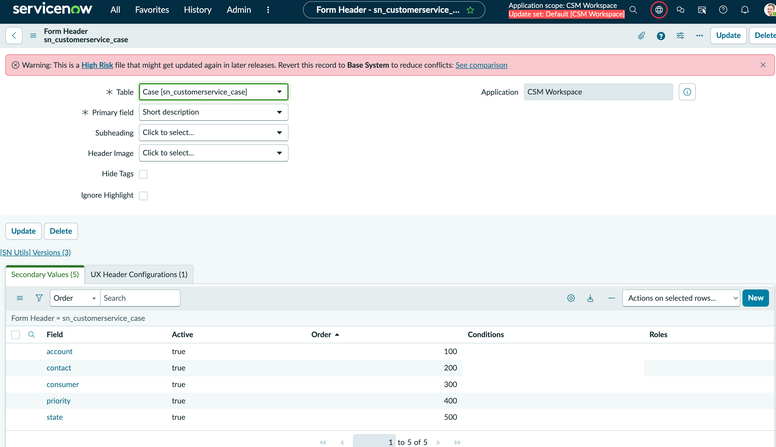

1.Navigate to sys_aw_form_header.list and create a new record.
2.Select
table = your_custom_table
primary filed = short description (displayed on record header)

save the record
3.In the related list secondary values add the fields you want to display on the card.

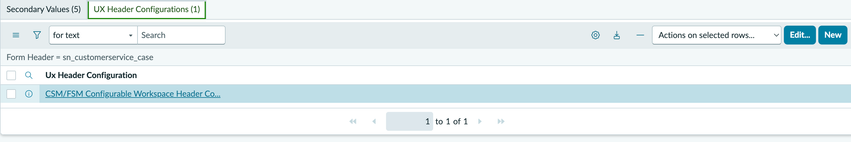

4.In the related list  UX Header Configuration ,click on edit and add CSM/FSM Configurable Workspace Header Config








0 Helpfuls

Narmadha PR
Tera Contributor
In response to Rakesh_M

a week ago

Hi @Rakesh_M , Thank you for your reply. This approach does not display the Record information. Rather, it just displays the values at the header level on top of the page.

0 Helpfuls
