Embedding widget in Service Catalog form

TouriaL
Tera Contributor

In Service Catalog you have the ability to embed a widget as a variable in your catalog items or record producers.

"In this example, we will create a loader widget that will only be displayed if the variable choices are empty if the server's response is slow."

  • Create a catalog item with variables
  • Create widget called add-panel-loader
  • In the html template add the following code

             <div class="panel-loader" style="text-align: center">
                            <fa name="spinner" spin="true"></fa>
                            <p>${Loading data}...</p>
              </div>​





  • In related lists, add a new variable to the catalog item.
  • In the Type field, select Custom.

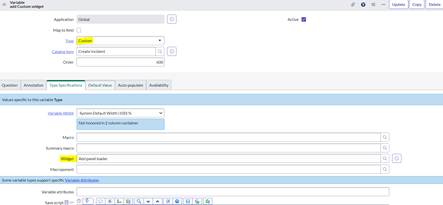

  • In the type specifications, select a widget that performs the desired action (see screenshot)TouriaL_0-1683644837566.png



  • You can hide/show the widget loader if you want to check the variable choices (or server response) .

Using this method, you can easily display the widget in your catalog items and improve the user experience for your employees.






1 REPLY 1

Cire
Tera Contributor

Hi Touria,

Thank you for this useful Tip.

Regards,
