How to apply a SYS ID from a piece of code within the Look Up record action of flow designer?

[matthew_hughes]

In my Flow Designer flow, I'm trying to query the u_bia_response table based on the parent sys ID of a business application which has a certain relationship type with the current child business application. I'm trying to extract the parent business application sys ID as below:

/*

**Access Flow/Action data using the fd_data object. Script must return a value.

**Order number is offset by +1 in Error Handling Section.

**Available options display upon pressing "." after fd_data

**example: var shortDesc = fd_data.trigger.current.short_description;

**return shortDesc;

*/

var parent = new GlideRecord('cmdb_ci_business_app');

        // sys id of business application parent child relationship type

        var relTypId = gs.getProperty('lbg.busApp.parent_child_relationship');

        var ciRel = new GlideRecord('cmdb_rel_ci');

        ciRel.addQuery('child', fd_data.trigger.current);

        ciRel.addQuery('type', relTypId);

        ciRel.addQuery('parent.sys_class_name', 'cmdb_ci_business_app');

        ciRel.query();

        // if relationship found

        if (ciRel.next()) {

            // get parent Business Application

            if (parent.get(ciRel.getValue('parent'))) {

                var parentSysId = parent.getValue('sys_id');

                return parentSysId;

            }

            }

However, what I'm wanting to do is the use the value of 'parentSysId' in a formula of a Look Up record action, so it would be:

Business Application.Sys ID is parentSysId

Does anyone what I can do to achieve this because at the moment, it's selecting the first record in the u_bia_response table rather than the record where the related Business Application is parentSysId

[matthew_hughes · Accepted solution]

Hi @Ankur Bawiskar

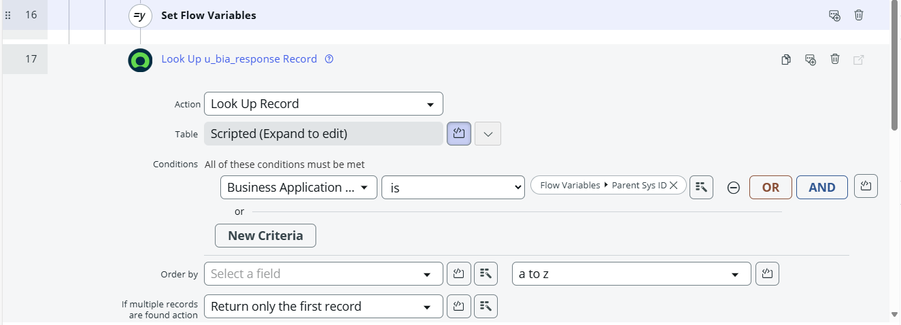

I'm trying to use it here:

[Sandeep Rajput]

@matthew_hughes You need to define a flow variable in this case. This flow variable can be set via the output of your script mentioned in the question above.

The flow variable then can be used in the Look up record action for comparison.

[matthew_hughes]

Hi @Sandeep Rajput I've got my flow variable set up to a string:

How would I then apply that with my code?

[Sandeep Rajput]

@matthew_hughes You need to use set Flow Variable step to set the flow variable. For more information please refer to https://www.servicenow.com/docs/bundle/yokohama-build-workflows/page/administer/flow-designer/concep...

[matthew_hughes]

Hi @Sandeep Rajput

I've done the following:

How I can't seem to select it on the right hand side. Do you know why that could be?
