05-30-2025 09:02 AM - edited 05-31-2025 08:12 PM
How to implement retry policy concept outside flow designer?
Ex - I want to retry API call 3 times. If still not successful, then create an incident.
PS - I know this capability is there in Flow designer but customer is having IH Starter package which has limited license count for IH transactions. Hence we are looking for solution outside the FLOW DESIGNER.
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-31-2025 11:04 PM
Hi @Suggy
ServiceNow offers the same concept OOTB with the ECC queue. And before you ask: No you don't need a MID server for that!
For you it means only a small change in your code and an additional configuration for retry policies. Please refer to the following article for more information: https://www.servicenow.com/community/itom-blog/ecc-failure-retry-async-rest-web-service-example/ba-p...
Maik
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-30-2025 09:54 AM - edited 05-30-2025 09:54 AM

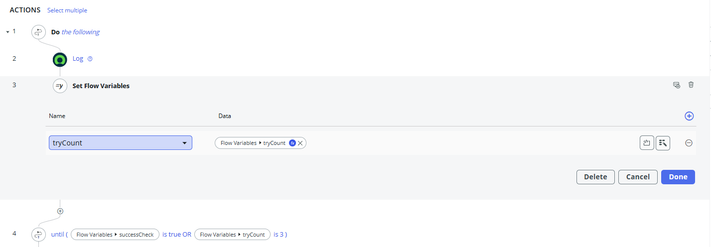

Flow designer has "Do the following until" Flow Logic.
Within that you can set exit conditions. In your case just create two flow variables like "successCheck" and "tryCount". Control those variables within the Do the following until
Pattern will look a little something like this.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-31-2025 05:42 AM
Hi @Uncle Rob Thanks for relying, but as I have mentioned, I am looking for a solution outside the FLOW DESIGNER.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-31-2025 10:47 AM
What do you mean they aren't licensed for Flow Designer?
Everyone is licensed for Flow Designer to some degree.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-31-2025 08:23 PM
@Uncle Rob Thanks for replying and apologies for not being clear.
What I actually meant was, customer doesnt have sufficient licenses. They just have IH starter package that comes with limited transactions which currently is being used for some other integrations already.
