Parent Archive Rule failing to cascade archive

[mdcyb]

My parent Archive Rule is failing to run referenced 'child' Archive Rules.

The goal for this archival is to archive [incident_alert] and [incident_alert_task] records when an [incident] record matching the criteria in the parent rule is found. Since the Related Records for Archive Rules cannot dot walk, and [incident_alert_task] references [incident_alert] and not [incident], I cannot add [incident_alert_task] records as Related Records of the parent rule like I can for [incident_alert] records which directly reference [incident] records.

After extensive online research, I gathered that the solution was to create 'child' rules and reference those in the "Referenced table rule" field of Related Records. With that, I created two new child rules. Here is my structure:

Archive Rule 1: "Incident - Inactive and closed 7 or more years ago" (Active)
Archive Related Record:

• Action: Archive
• Reference: incident_alert.source_incident
• Reference table: Incident Communication Plan [incident_alert]
• Reference element: source_incident
• Reference table rule: Incidents Cascade - [incident_alert]

Archive Rule 2: "Incidents Cascade - [incident_alert]" (Inactive)
Archive Related Record:

• Action: Archive
• Reference: incident_alert_task.comm_plan
• Reference table: Incident Communication Task [incident_alert_task]
• Reference element: comm_plan
• Reference table rule: Incidents Cascade - [incident_alert_task]

Archive Rule 3: "Incidents Cascade - [incident_alert_task]" (Inactive)
No Related Records

I have also tried chaining these through the Parent fields and have activated rules 2 and 3 with the criteria being "sys_id is not empty", but they never ran with any combination of the two. Since rule 2 is never ran, rule 3 is never ran. None of the (sparse) examples of this configuration that I've come across have been able to solve my dilemma.

Is this a misunderstanding or misconfiguration on my part or a bug?

[RaghavendraGund]

Hello @mdcyb

This looks like a configuration Issue not a bug. I was able to replicate this scenario in my PDI  and was able to sucessfully archive incident--->incident_alert--->incident_alert_task  tables

I created 3 rules just like you did mention on your post (refer main screenshot attached)

Archive Rule 1: "TEST - INC0000060" (Active)
Archive Related Record:

• Action: Archive
• Reference: incident_alert.source_incident
• Reference table: Incident Communication Plan [incident_alert]
• Reference element: source_incident

Reference table rule: Incidents Cascade - [incident_alert]
Refer Screenshot1 Attached.

Archive Rule 2: "Incidents Cascade - [incident_alert]" (Inactive)

Archive Related Record:

• Action: Archive
• Reference: incident_alert_task.incident_alert  <----- I think this were your configuration mistake
• Reference table: Incident Communication Task [incident_alert_task]
• Reference element: incident_alert<-----I think this were your configuration mistake
• Reference table rule: Incidents Cascade - [incident_alert_task]

Refer Screenshot2 Attached

Archive Rule 3: "Incidents Cascade - [incident_alert_task]" (Inactive)
No Related Records

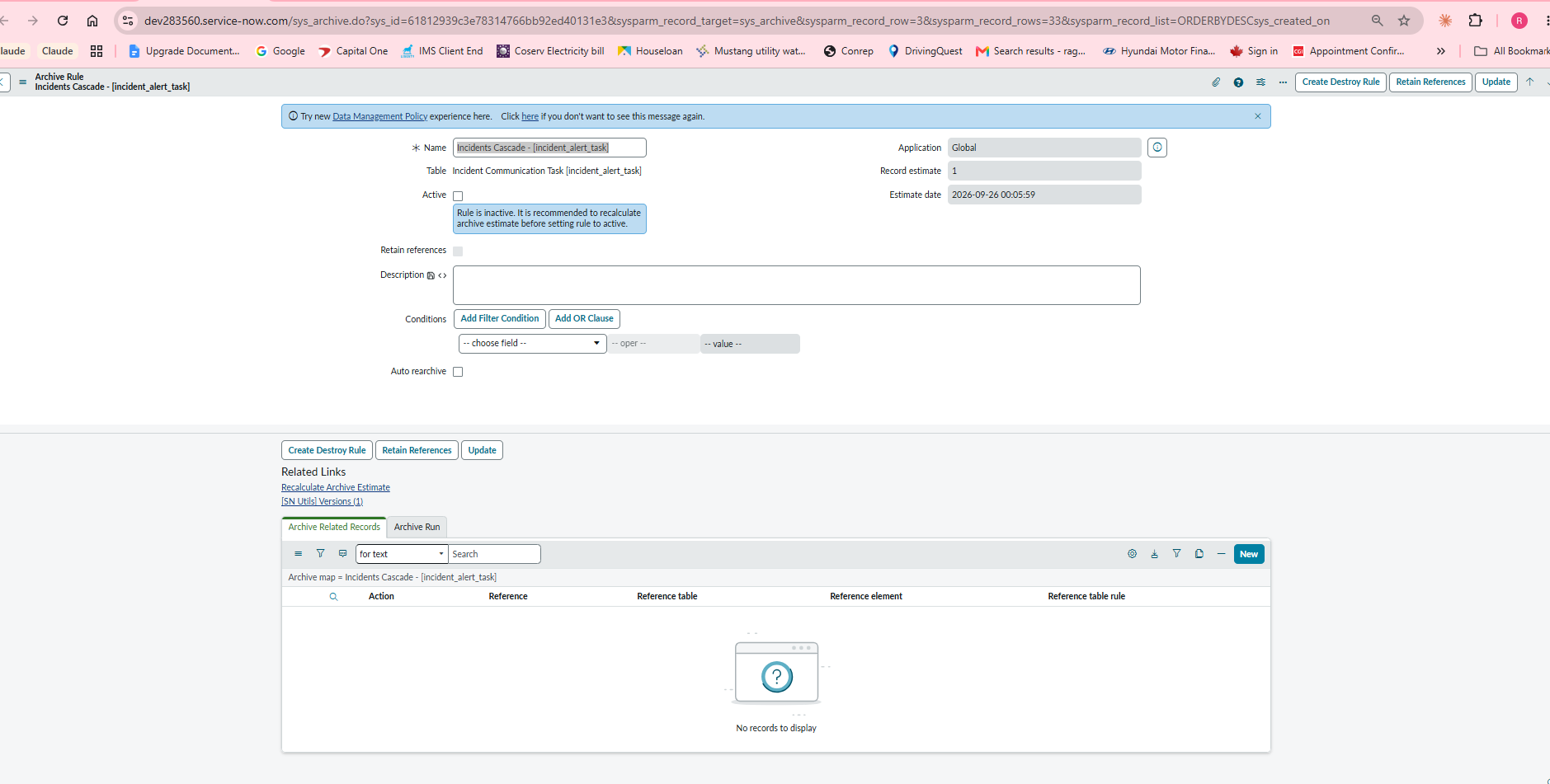

Refer Screenshot3 Attached

Also Refer Final result screenshot  Attached

Please click "Helpful" and "Solution Accepted" if my reply helped you

Regards
Raghavendra G
