Populate reference variable options based off another reference variable.

[Mark OToole1980]

Hope you can help.  I am building a catalog item and need 2 reference variable to link to each other.

Variable 1 Faculty which a lookup select box referenced to a custom faculty table.

Variable 2 School also needs to be a lookup select box referencing the custom school table.

The custom school table has a parent field that links to the Faculty table.

So I need the school variable to only show the records in the school table that have a parent of the option chosen in the faculty variable.

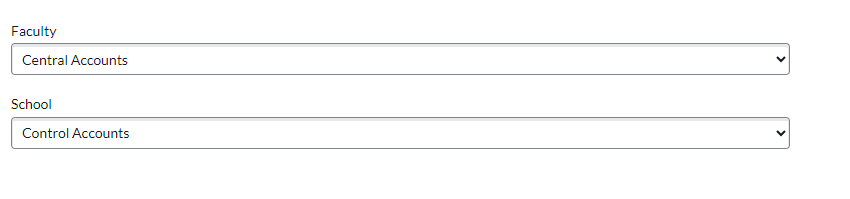

I have posted a picture of the simple form so far. How do I achieve this?  many Thanks

[Malte_K]

Hi Mark,

in the dependent variable record under tab "Type specification", try the following in the Reference qualifier field (optionally add more static encoded_query like active=true or something to the string):

javascript: 'parent=' + current.variables.my_facility_var;

 Import: You have to the add the attribute "ref_qual_elements=my_facility_var", so the filter is dynamically recalculated. See here: https://docs.servicenow.com/bundle/washingtondc-servicenow-platform/page/product/service-catalog-mana...

[Sandeep Rajput · Accepted solution]

@Mark OToole1980 Please update the reference qualifier of the school field as follows.

[Mark OToole1980]

Hi Sandeep, I have tried this but not returning options.  I have posted the script as built with field in School table u_parent_faculty as is built in the table.
