‎07-22-2017 10:28 AM
I have two screenshots below.
In screenshot 1, the related lists 'Attachments' & 'Escalations' 'were simply added to the form's view (not in any section). It displays 'New' button & also the count of number of records & some other useful List features.
In screenshot 2, I created two sections on the form- 'Attachments' and 'Escalations' - in order to place the respective related lists on them.
I placed the same related lists on their respective section, (Tabbed or non-Tabbed layout, that wont matter).
Now, it wont display the 'New' button nor the count and other list features.
Anybody knows what I am missing and how to achieve that?
screenshot 1:

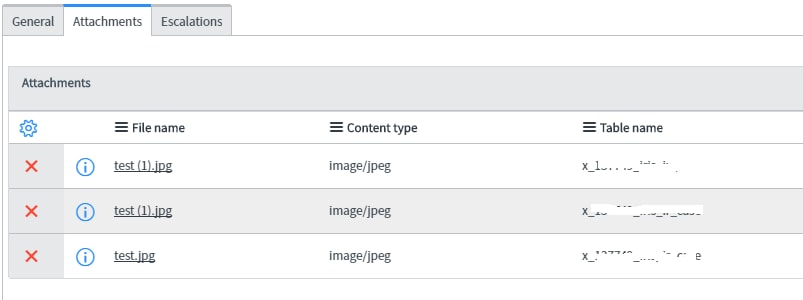

screenshot 2:
You may ask why I am doing it this way - Because, if you see screenshot 2, I have an additional Tab( or section) called 'General'. There I am placing all form fields. And I need other related Lists to be displayed adjacent to my General tab.
Any help would be appreciated,
Thank you,
Yogesh
Message was edited by: yogesh deshpande
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎07-22-2017 03:16 PM
Hi Yogesh,
This is what I explained above. Please check my 2nd reply.
"Other option is to create a UI Formatter and add the formatter to the section. Example is 'Table's' Embedded list as shown below. It has 'New' and 'Search' options."
This comes from the the Formatter 'table_col_embedded' - https://instancename.service-now.com/sys_ui_formatter.do?sys_id=5a2795d4bf7030001875647fcf0739d7&sys...
Thanks
Antin

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎07-22-2017 10:48 AM
Hi Yogesh,

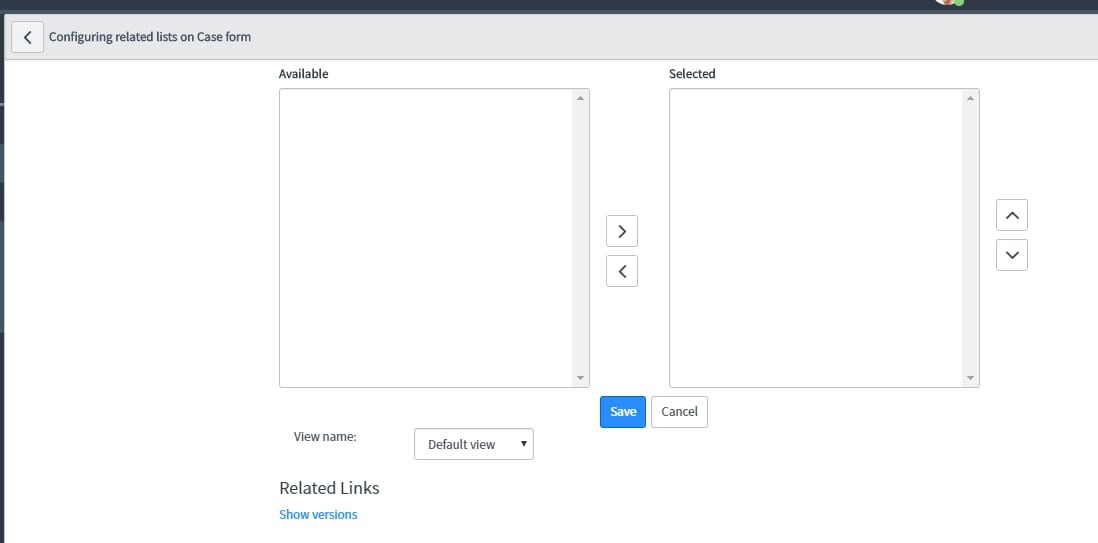

in screenshot 2 you have added embedded list. can you please share the screenshot of related list available in slush bucket.
Right click>> configure >Related Lists.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎07-22-2017 10:59 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎07-22-2017 11:03 AM
why it's blank. are you using OOTB table or is it custom table?
the screenshot 1 form and screenshot 2 form are same or different?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎07-22-2017 11:09 AM
Hi Yogesh,
It is working as per the design. Instead of the new button, you can get an option to insert a new row at the end of List View (as shown below). The new row will get saved when you save/submit the form.
The design of embedded list is to keep the user at the same form and achieve insert/update without navigating to another form (like 'New' button does).
Hope this helps. Mark the answer as correct/helpful based on impact.
Thanks
Antin
