Want to send attchment(excel sheet) through inbound email action and information is populated on incident table

[Harsha1]

Hello,

I want to send a attachment  (through mail) excel sheet Information into the servicenow with the help of inbound email action. and the information is populated on the incident table. please provide step by step process.

Thanks & Regards,

Harsha

[Willem]

Step 1. Create the Import Set Table and Transform Map(s)
The easiest way to create the Import Set Table is to manually load a sample file using the Load Data wizard on the left navigation menu in ServiceNow. Then create your Transform Maps and make sure they are linked to this new Import Set Table.

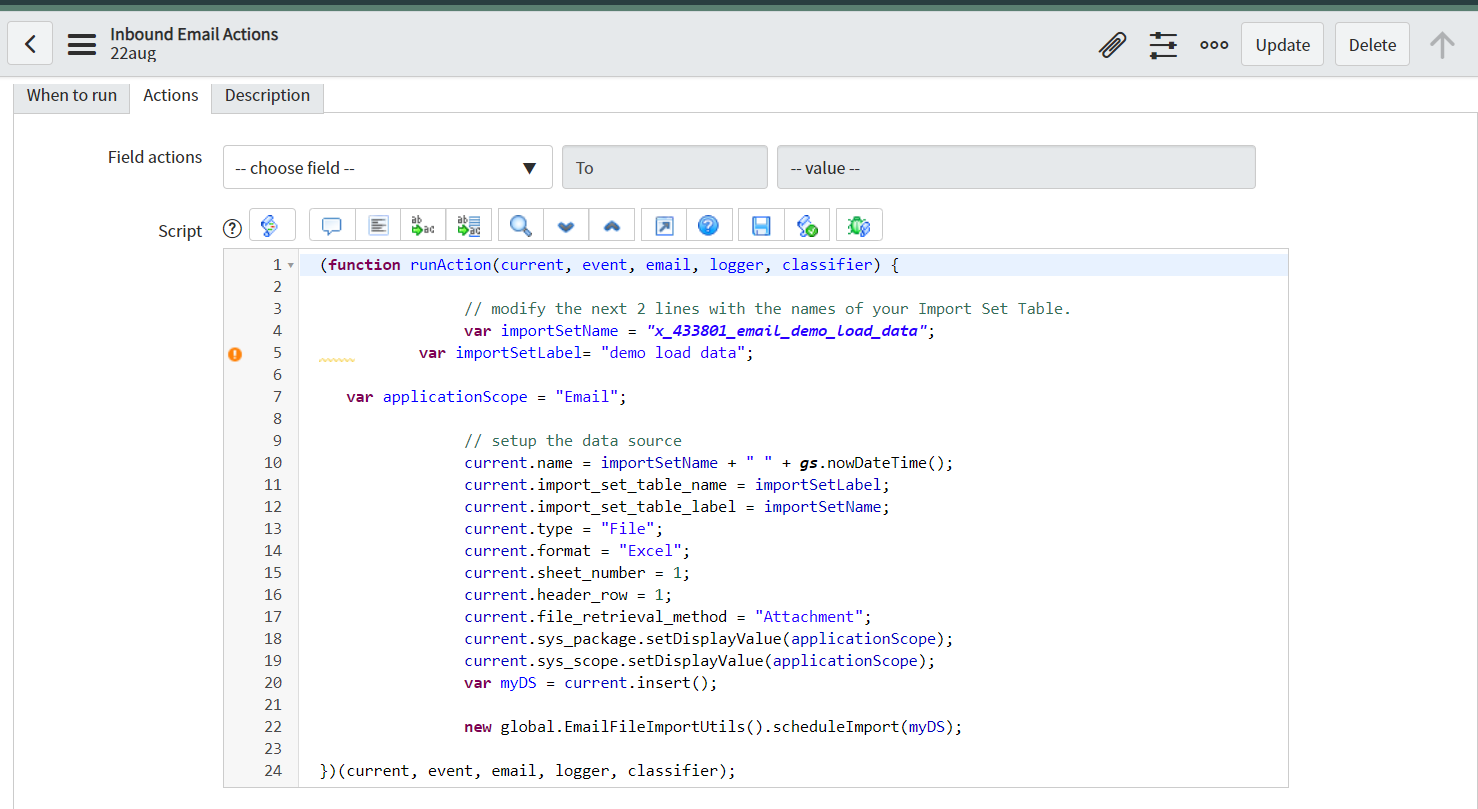

Step 2. Create the Inbound Email Action

Set the following fields on the Inbound Action record:
Target table: Data Source [sys_data_source]
Action type: Record Action
Script:

(function runAction(current, event, email, logger, classifier) {

                // modify the next 2 lines with the names of your Import Set Table.
                var importSetName = "myImportSet";
		   var importSetLabel= "my_import_set_table_name";

   var applicationScope = "Global";

                // setup the data source
                current.name = importSetName + " " + gs.nowDateTime();
                current.import_set_table_name = importSetLabel;
                current.import_set_table_label = importSetName;
                current.type = "File";
                current.format = "Excel";
                current.sheet_number = 1;
                current.header_row = 1;
                current.file_retrieval_method = "Attachment";
                current.sys_package.setDisplayValue(applicationScope);
                current.sys_scope.setDisplayValue(applicationScope);
                var myDS = current.insert();

                new global.EmailFileImportUtils().scheduleImport(myDS);

})(current, event, email, logger, classifier);

Step 3. Create the Script include

Set the following fields:
Name:EmailFileImportUtils
Script:

var EmailFileImportUtils = Class.create();
EmailFileImportUtils.prototype = {
    initialize: function() {
    },

    scheduleImport: function(dataSourceID) {
        /*
         * Create scheduled job to process import
         *
         * will generate an import data source, however the attachment
         * isn't copied to the data source until after the record insert.
         * The code below creates a scheduled job to process the file import
         * 30 seconds later so that attachment has time to be copied to the
         * data source from the email.
         */

        var schRec = new GlideRecord("sys_trigger");
        schRec.name = "Load Data Source: " + dataSourceID;
        schRec.trigger_type = 0; // Run Once
        schRec.script = "new global.EmailFileImportUtils().loadImportSet('" + dataSourceID + "')";

        var nextAction = new GlideDateTime();
        nextAction.addSeconds(30); // 30 seconds however this can be changed.
        schRec.next_action = nextAction;
        schRec.insert();
    },

    loadImportSet: function(dataSourceID) {
        // Get Datasource Record
        var dataSource = new GlideRecord("sys_data_source");
        dataSource.get(dataSourceID);

        // Process data source file
        var loader = new GlideImportSetLoader();
        var importSetRec = loader.getImportSetGr(dataSource);
        var ranload = loader.loadImportSetTable(importSetRec, dataSource);
        importSetRec.state = "loaded";
        importSetRec.update();

        // Transform import set
        this._doTransform(importSetRec);
    },

    _doTransform: function(set){
        var importSetRun = new GlideImportSetRun(set.getUniqueValue());
        var importLog = new GlideImportLog(importSetRun, set.data_source.name);
        var ist = new GlideImportSetTransformer();

        ist.setLogger(importLog);
        ist.setImportSetRun(importSetRun);
        ist.transformAllMaps(set);
     },
    type: 'EmailFileImportUtils'
};

Please refer to:

https://servicenowexpert.wordpress.com/2019/01/28/auto-load-excel-spreadsheet-using-email-inbound-ac...

[Subhojit Das]

Hi Harsha,

Please refer the link https://community.servicenow.com/community?id=community_blog&sys_id=908c26e1dbd0dbc01dcaf3231f9619c4

Please mark as Correct and Helpful if the link resolved your issue.

Regards,

Subhojit

[Harsha1]

Hello,

Thank you for your response.

I do all process above mentioned. But I phase some problem.I am new to learn ServiceNow.

I created inbound email action and script include. But when l send data(excel sheet) into  snow the information not showing on the incident.

Also  New attacthed file(excel) not get into the data source. So please suggest me what I do ?

Thanks & Regards,

Harsha

[AbhishekGardade]

In addition to Willem's response,

You need to copy attachment to Data Source from Incident table to Data Source, so your data source will process your attachment.

#Copying an Attachment from One Table/Record to Anothet Table/Record:

Copying all of the attachments associated with a given record is fairly straightforward. You simply call the copy method of the GlideSysAttachment class, and pass in four parameters:

• The table you want to copy the attachment from (incident, change_request, etc.).
• The sys_ID of the record you want to copy the attachment from.
• The table that you want to copy the attachment to.
• The sys_ID of the record you want to copy the attachment to.

This might look something like this:

var donorTable = sc_req_ite’;//

var donorID = '2b6644b15f1021001c9b2572f2b47763';

var recipientTable = sc_task; //

var recipientID = '78e47fe94f31d200bf004a318110c7d4';

GlideSysAttachment.copy(donorTable, donorID, recipientTable, recipientID);

Thank you,

Abhishek Gardade
