Where can i find the widgets that are in a given dashboard?

[juan9]

Where can i find the widgets that are in a given dashboard?

i tried editing some properties in the dashboard to see if i can find the table that lists a widgets used in dashboard.

 

From the article provided i got this architecture::

I found this article but it does not explicitly show how the widgets are related to each dashboard.

[Akash4]

Hello,

The dashboard widgets are usually either from Reports or Performance Analytics. For Reports you can directly find the Report name under Reports > View / Run module.

For Perf Analytics > You can go to Widgets module under Performance Analytics Application > find the Widget name similar to the Dashboard widget name. If you want to dig deeper in to widget components, you can click on Indicator reference field on the Widget form.

[AndersBGS]

Hi @juan9 ,

There are two different ways to locate where the widgets/reports are located.

1.

Go to the given dashboard and press "configuration":

Afterwards you can press edit content and go directly to the PA widget / Report:

2 option:

Go to dashboard properties:

Press "Launch dependency assessment":

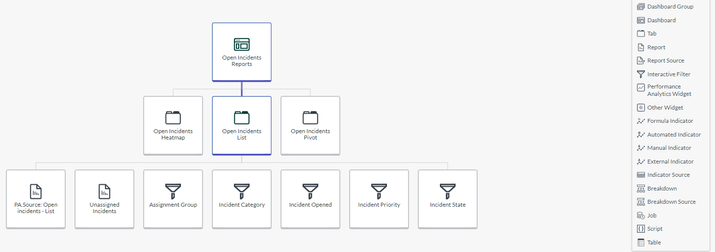

This will give you a complete tree structure to see what is combined together to create the dashboard:

if my answer has helped with your question, please mark my answer as accepted solution and give a thumb up.

Best regards

Anders

[Myrddin Emrys]

This list of widgets associated with a tab... what table does that association? I'm attempting to remediate some issues with Dashboards that were migrated from Homepages, and I can't for the life of me determine where this linking resides. It's obviously there (it's on the dependency assessment) but I can't find the actual widget instances themselves to fix some underlying issues.
