Reporting on Alerts on Technical Service

abrahampc
Kilo Contributor

Hello!

I'm trying to run a report which will show a count of alerts for technical services, but having trouble finding the table structure connection between the technical services (cmdb_ci_query_based_service), cmdb_ci, and em_alert tables. I would assume this connection exists, due to the Event Management dashboard's list of alerts building a list off of technical services (/nav_to.do?uri=%2F$sw_dashboards.do). I just want to be able to run reports using the reports system. Does anyone know the proper path (for dot walking or whatnot) to run this type of report?

Thanks!

1 ACCEPTED SOLUTION

Michael Skov2
Kilo Guru

Hi

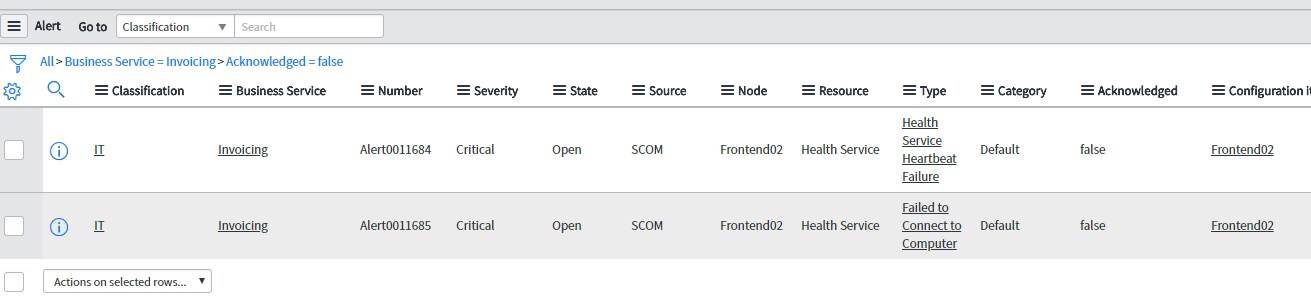

You can use the table called Alert [em_alert_bs_status_view] and then create a condition for your service. I have created one for a Manual Service (you would just select technical instead), which shows i have two alerts on my service (Invoicing).





View solution in original post

3 REPLIES 3

Michael Skov2
Kilo Guru

Hi

You can use the table called Alert [em_alert_bs_status_view] and then create a condition for your service. I have created one for a Manual Service (you would just select technical instead), which shows i have two alerts on my service (Invoicing).





Josh11
Tera Contributor

Hi ,



Michael is right. You can you the table em_alert_bs_status_view to generate the report. This table has a field Business Service which contains all the business services such as manual or technical.
So while building a condition build it as- Business Service is "your technical business service name".
e.g   Business service ---is----technical service. By this you will be able to see the alerts associated with this technical services as well as count

One is given in following screenshot :









Try this and let us know if you find any difficulties.

Hit helpful or correct on the impact of the answer.





Warm Regards,

Kiran Salunkhe

Engineer



www.DxSherpa.com



Kiran7
Giga Expert

Hi,



You can use the table Alert(em_alert_bs_status_view) table for creating report. On this table there is a fileld called as Business Service which includes all the BS such as Manual and Technical Business Services.

You can create a filter as below:

Business Service----is-----Technical (Name of your technical service).

This will give you all the alerts related to this technical service. Please refer below screenshots for reference

Note: Technical service is my own created technical service.







Try this and let me know if you face any queries.

Hit Helpful/correct on the impact of answer.







Warm Regards,

Kiran Salunkhe

Engineer


www.DxSherpa.com
