how to create Process flow in service potal

saikrishna sai
Kilo Contributor

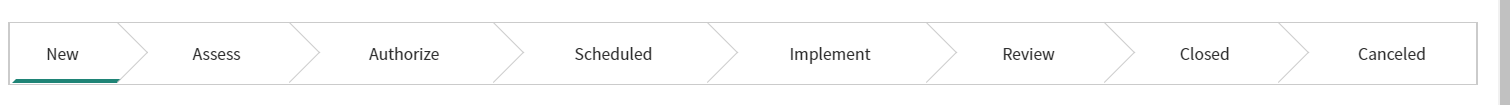

like this process flow i need in service portal as like thisfind_real_file.pngfind_real_file.png

6 REPLIES 6

Chetan Mahajan
Kilo Sage

Hi Sai,

                You can create flow formatter with the help of widget, refer this Flow formatter in Service Portal

Is it correct  chetan

alot of coding



Yes Sai, because there is no OOB functionality for that, we have to create it by coding itself for service portal

Saranya Babu
Kilo Contributor

Hi,



Create a widget and put the same in the portal

HTML

<div>


<div class="visible-md visible-lg" ng-if="data.flow.length > 0">


<button ng-repeat="key in data.flow" type="button" class="btn btn-{{key.colour}} btn-arrow-right">{{key.name}}</button>


</div>


</div>



Server Script

(function() {


  var gr = $sp.getRecord();


  data.canRead = gr.canRead();


  if (!data.canRead)


  return;




  // Check the process flow query against the current job to see if the conditions match


  function getCurrentStep(step, table, id) {


  var gnr = new GlideRecord(table);


  gnr.addEncodedQuery(step);


  gnr.addQuery('sys_id', id);


  gnr.query();




  if (gnr.next()) {


  return 'warning';


  } else {


  return 'primary';


  }


  }



  // Set the previous steps in the flow to success if the current step is further down the order


  function retoActiveSuccess(items) {


  var i = 0;


  for (var key in items) {


  var value = items[key];


  if (value.colour == 'warning') {


  var index = i;


  for (var j = 0; j<i; j++) {


  items[j].colour = 'success';


  }


  if (index == items.length) {


  value.colour = 'sucess';


  }


  break;


  }


  i++;


  }


  return items;


  }




  function createProcessFlow() {


  var table = gr.getTableName();


  var id = gr.getUniqueValue();




  var gf = new GlideRecord('sys_process_flow');


  gf.addActiveQuery();


  gf.addQuery('table', table);


  gf.orderBy('order');


  gf.query();




  var items = [];


  while (gf.next()) {


  var item = {};


  item.name = gf.name.toString();


  item.colour = getCurrentStep(gf.condition.toString(), table, id);


  items.push(item);


  }




  items = retoActiveSuccess(items);


  return items;


  }




  data.flow = createProcessFlow();




})();



CSS.



btn {


      margin-bottom: 5px;


}


.btn-arrow-right,


.btn-arrow-left {


      position: relative;


      padding-left: 18px;


      padding-right: 18px;


}


.btn-arrow-right {


      padding-left: 36px;


}


.btn-arrow-left {


      padding-right: 36px;


}


.btn-arrow-right:before,


.btn-arrow-right:after,


.btn-arrow-left:before,


.btn-arrow-left:after { /* make two squares (before and after), looking similar to the button */


      content:"";


      position: absolute;


      top: 5px; /* move it down because of rounded corners */


      width: 22px; /* same as height */


      height: 22px; /* button_outer_height / sqrt(2) */


      background: inherit; /* use parent background */


      border: inherit; /* use parent border */


      border-left-color: transparent; /* hide left border */


      border-bottom-color: transparent; /* hide bottom border */


      border-radius: 0px 4px 0px 0px; /* round arrow corner, the shorthand property doesn't accept "inherit" so it is set to 4px */


      -webkit-border-radius: 0px 4px 0px 0px;


      -moz-border-radius: 0px 4px 0px 0px;


}


.btn-arrow-right:before,


.btn-arrow-right:after {


      transform: rotate(45deg); /* rotate right arrow squares 45 deg to point right */


      -webkit-transform: rotate(45deg);


      -moz-transform: rotate(45deg);


      -o-transform: rotate(45deg);


      -ms-transform: rotate(45deg);


}


.btn-arrow-left:before,


.btn-arrow-left:after {


      transform: rotate(225deg); /* rotate left arrow squares 225 deg to point left */


      -webkit-transform: rotate(225deg);


      -moz-transform: rotate(225deg);


      -o-transform: rotate(225deg);


      -ms-transform: rotate(225deg);


}


.btn-arrow-right:before,


.btn-arrow-left:before { /* align the "before" square to the left */


      left: -11px;


}


.btn-arrow-right:after,


.btn-arrow-left:after { /* align the "after" square to the right */


      right: -11px;


}


.btn-arrow-right:after,


.btn-arrow-left:before { /* bring arrow pointers to front */


      z-index: 1;


}


.btn-arrow-right:before,


.btn-arrow-left:after { /* hide arrow tails background */


      background-color: white;


}
