PA Indicator to show Pending Approvals by Timeframe

alhicks
Tera Guru

We're trying to show the number of pending approvals weekly by age ranges, a snapshot of what was pending approval on that given date.  We have quite a few months that are missing data, and the greater than 2 months range has the same number for several weeks.  I'm not sure what I'm missing here.  😞



Widget







Indicator




Indicator Source


Bucket Group




Breakdown


Breakdown Mapping








1 ACCEPTED SOLUTION

Hi @alhicks ,



Sorry for the late reply, had some work to be done prior to my respond. If you would like to see if the approval time has improved, you need to look into how long it has taken from requested to approved.

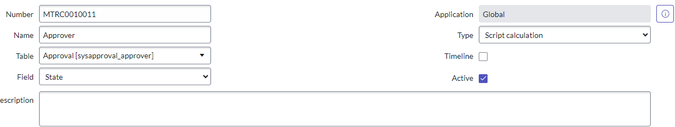

This can be completed by creating a metric definition on the sysapproval_approver table. As you see below I created below in my PDI:


With below script to complete the population:

if (current.state.toLowerCase() === 'approved') {
    createMetric();
}

function createMetric() {
    var mi = new MetricInstance(definition, current);
    var gr = mi.getNewRecord();
    gr.field_value = current.state;
    var start = new GlideDateTime(current.sys_created_on);
    var end = new GlideDateTime(current.sys_updated_on);
    gr.start = start;
    gr.end = end;
    // Calculate duration in milliseconds
    var durationMillis = Math.abs(start.getNumericValue() - end.getNumericValue());
    // Convert milliseconds to duration string
    var durationString = durationToTimeString(durationMillis);
    gr.duration = durationString;
    gr.calculation_complete = true;
    gr.insert();
}

// Function to convert milliseconds to duration string
function durationToTimeString(durationInMillis) {
    var seconds = Math.floor(durationInMillis / 1000);
    var minutes = Math.floor(seconds / 60);
    var hours = Math.floor(minutes / 60);

    seconds = seconds % 60;
    minutes = minutes % 60;

    return pad(hours) + ':' + pad(minutes) + ':' + pad(seconds);
}

// Function to pad single digits with leading zero
function pad(number) {
    if (number < 10) {
        return '0' + number;
    }
    return number;
}

This will provide the result:


Please note, for the metric to be populated, you need to go to metrics --> business rule:


Make a copy of the metrics events (see top row):




and just correct the task table to sysapproval_approver for the new business rule:


The reason that you need to do this is, that the metrics event runs on the task table, but the sysapprover_approval is not extended from task table.



If my answer has helped with your question, please mark my answer as accepted solution and give a thumb up.



best regards

Anders







If my answer has helped with your question, please mark my answer as the accepted solution and give a thumbs up.

Best regards
Anders

Rising star 2024
MVP 2025
linkedIn: https://www.linkedin.com/in/andersskovbjerg/

View solution in original post

12 REPLIES 12

AndersBGS
Tera Patron
Tera Patron

Hi @alhicks ,



Have you looked into the score for greater than two months to actually see if the data is correct or not? Has the count of records been the same and have the records approval been pending for a long time?



If my answer has helped with your question, please mark my answer as accepted solution and give a thumb up.



best regards

Anders

If my answer has helped with your question, please mark my answer as the accepted solution and give a thumbs up.

Best regards
Anders

Rising star 2024
MVP 2025
linkedIn: https://www.linkedin.com/in/andersskovbjerg/

I think what's happening is it's only showing me the records that are actually still pending approval.  It's not really showing a snapshot of what was pending at that time.  But I'm not sure what I have setup wrong.

Hi @alhicks ,



Agree to your statement around "records that are actually still pending approval.  It's not really showing a snapshot of what was pending at that time. ".



The reason is your condition in your indicator source:


So basically, the number will just add up along the way.

So if one approval was requested yesterday and one today the number will be 2. If then 1 of the 2 is approved today, the number will be 1.



What is it exactly that you would like to capture?



If my answer has helped with your question, please mark my answer as accepted solution and give a thumb up.



best regards

Anders



If my answer has helped with your question, please mark my answer as the accepted solution and give a thumbs up.

Best regards
Anders

Rising star 2024
MVP 2025
linkedIn: https://www.linkedin.com/in/andersskovbjerg/

Our management is wanting to see the number of approvals pending at the end of each month . For example: at the end of January how many approvals were still Requested, and how old was that approval, was it opened the Same Day or was it greater that 2 months.  That sounds confusing I know and maybe we should be looking at this differently. 🤔
