UI Builder Workspace

[dipalilidhu]

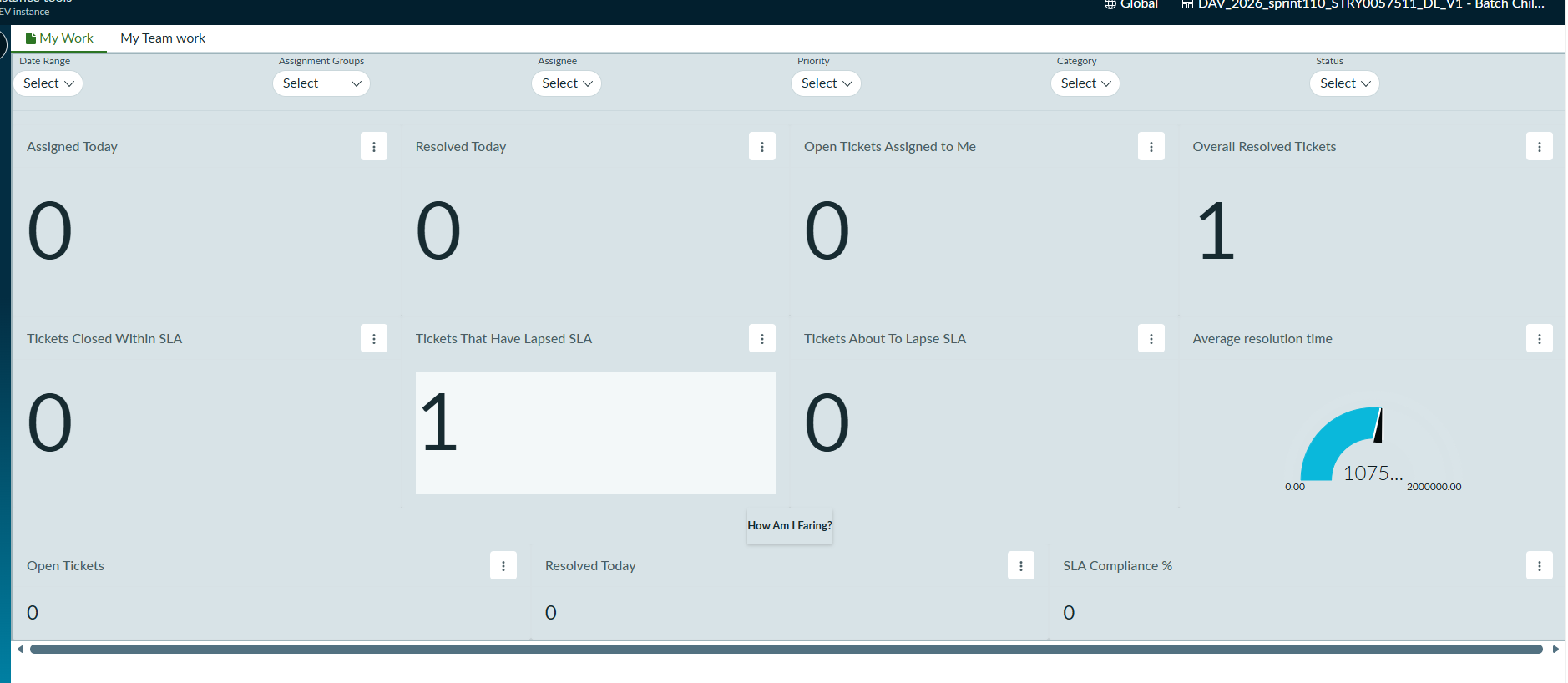

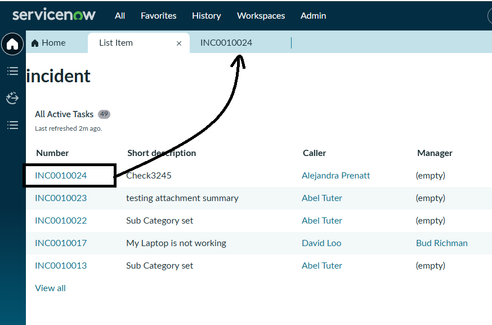

In UI Builder, I have created a workspace dashboard using Data Visualization components, similar to Platform Analytics (as shown in screenshot SS1). I have added page variants that display records from a table and redirect users to a list view (as shown in screenshot SS2).

My requirement is that when a user clicks on a record from the list, the corresponding record should open in its respective form view, similar to the standard Platform Analytics behavior.

I have also tried creating a new page and configuring navigation, but it is not working as expected.

Could you please provide the proper solution and implementation steps to achieve this?

@Ashley Snyder @Brad Tilton @Anubhav Kapoor1  @Ravi Peddineni

[yashkamde]

Hello @dipalilidhu ,

Worked on similar requirement earlier,

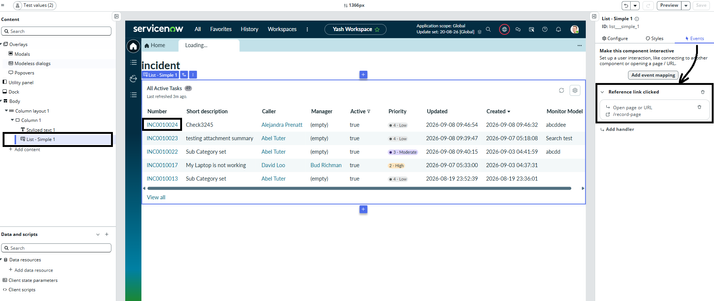

added a simple list component + Event Mapping - Reference Link Clicked :

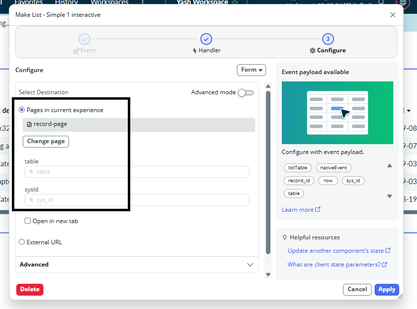

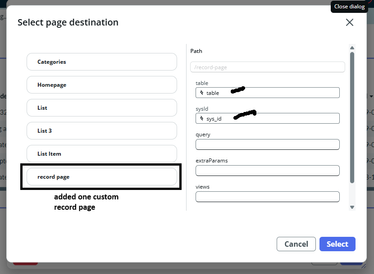

In Reference Link Clicked > selected Select Destination - Pages in current experience > Also added one custom record-page :

getting the results as :

If my response helped mark as helpful and accept the solution.
