Look up record action in Flow designer

[dassan]

I am trying to use the look up record action in my flow designer for multiple times in a flow,  however only the first action is working and remaining ones are not working/not performing.

Please provide reason for this. The look up record is on the sys_user table.

the flow looks like below where there is flow for individual price cap of 100, 250, 500 as shown below, the lookup record works only for the $100 price cap, but not for the others.

[yashkamde]

Hello @dassan ,

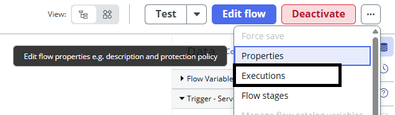

Could you plz share the flow execution context screenshot, why and where it is fail?

also are the $250 & $500 price cap is nested under $100 or each seperate configured.

[dassan]

Hello,

The $250 & $ 500 are separate configuration & are not nested.

[yashkamde]

Okay so you must ensure some checks :

• confirm the price cap field's actual value/type on the test record matches what the If condition checks
• open execution context for $250 If it shows completed with no result > the lookup filter (Name is Tri... / Entra Cost Centre...) isn't matching for that record

Could you plz share the executions to debug it..

If my response helped mark as helpful and accept the solution.

[dassan]

Please check the execution logs for your reference.

for the [rice cap field $250

the look up record under this flow

[yashkamde]

Okay I can see there No Logs so it seems that it simply didn't run.

That happens when the triggering record's price cap value did not evaluate to $250 for that condition,

so check the Condition config shown (estimated_monthly_spend... >250), note it's a >250 style condition, not =250.
