User interface development with React

Develop a user interface (UI) with the React library to build a full-stack application in source code.

Overview of UI development with React

React is an industry-standard web framework for building UI components that you use to develop and render custom user interfaces. A React component is a self-contained, reusable JavaScript function, such as a button, and supports JavaScript (JS/JSX) and TypeScript (TS/TSX) syntax. For general information about React, see the React documentation on the react.dev website.

With the ServiceNow IDE or ServiceNow SDK, you can use React in an application to create a UI page in ServiceNow Fluent code. The ServiceNow Fluent UI Page API refers to an HTML entry point (index.html) that loads the page at the endpoint provided. After building and installing the application on an instance, the static assets are stored in the appropriate tables. For an example of a React application in source code, see the ServiceNow SDK examples GitHub repository. To get started using React, select one of the React templates when creating an application with the ServiceNow IDE or ServiceNow SDK.

注:

You can use some Next Experience Components in a React application with the React Wrapper Component Library Node Package Manager (npm) package on the public npm registry. To use the React Wrapper Component Library in an application, you can use Build Agent or you must install it from the ServiceNow IDE or ServiceNow SDK. For more information, see Use third-party libraries with the ServiceNow IDE or Use third-party libraries with the ServiceNow SDK.

UI development process

The following list is a high-level overview of the process to develop a React application with the ServiceNow IDE or ServiceNow SDK:

1. Create an application and select one of the React templates.

   The application includes the files and directories required for React development.

2. In the src/client directory, add client assets for a user interface, such as an HTML entry point (index.html), client scripts, and style sheets. The index.html file must contain the <script> tag as the JavaScript entry point.
3. Define a UI page [sys_ui_page] in code with the ServiceNow Fluent UI Page API. In the now.ts file that contains the UI page definition, you import the HTML and refer to it from the html property of the UiPage object.
4. Build the application to execute a pre-build Rollup script that bundles dependencies and packages the client assets in the src/client directory before executing the rest of the build process. The standard Rollup build process and plugins are used as the default JavaScript bundler.

   Static assets are output to the dist/static directory.

5. Install the application to add the static assets to the application files [sys_metadata] in the appropriate tables: UX Asset [sys_ux_lib_asset], Images [db_image], and UX Theme Asset [sys_ux_theme_asset] tables. These tables support adding files as attachments.
   重要:

   UI development with React is an experimental feature due to how content is served from an instance and the content types and tables that are currently supported.

Limitations

• The UI page HTML should be modified only in source code. Changes to the HTML of a UI page [sys_ui_page] on an instance aren't synchronized into source code and are likely to result in unintended behavior.
• Audio, video, and WASM content types aren't supported.
• The maximum file size of uploaded attachments is limited by the size configured with com.glide.attachment.max_size system property. For more information, see Maximum allowed attachment size [Updated in Security Center 1.3].
• Output paths must be deterministic.
• Pre-loading content linked from HTML isn't supported (rel="preload").
• Relative style sheets linked from HTML aren't supported (rel="stylesheet"). Import style sheets into code instead (@import 'path/to/style-sheet').
• Relative imports in CSS aren't supported.
• CSS modules aren't supported.
• Only hash routing is supported by UI pages.
• Server-side rendering and React server components aren't supported.

UI page development with React

In a .now.ts file in the src/fluent directory, a UI page is defined in ServiceNow Fluent code. The HTML of the page is imported from the index.html file in the src/client directory.

//incident-manager.now.ts
import '@servicenow/sdk/global'
import { UiPage } from '@servicenow/sdk/core'
import incidentPage from '../../client/index.html'

UiPage({
    $id: Now.ID['incident-manager-page'],
    endpoint: '<scope>_incident_manager.do',
    description: 'Incident Response Manager UI Page',
    category: 'general',
    html: incidentPage,
    direct: true,
})

In the index.html file, the <script> tag refers to the main.jsx file in the src/client directory.

//index.html
<html>
<head>
  <title>Incident Response Manager</title>

  <!-- Initialize globals and Include ServiceNow's required scripts -->
  <sdk:now-ux-globals></sdk:now-ux-globals>

  <!-- Include your React entry point -->
  <script src="./main.jsx" type="module"></script>
</head>
<body>
  <div id="root"></div>
</body>
</html>

In the main.jsx file, the imports required for rendering the page and the main application component are included and the entry point of the React application is defined.

//main.jsx
import React from 'react'
import ReactDOM from 'react-dom/client'
import App from './app'

const rootElement = document.getElementById('root')
if (rootElement) {
    ReactDOM.createRoot(rootElement).render(
        <React.StrictMode>
            <App />
        </React.StrictMode>
    )
}

After building and installing the application, you can open the page from the endpoint provided in the UiPage object (https://<instance>/<scope>_incident_manager.do), which displays an interface for creating and managing incidents.

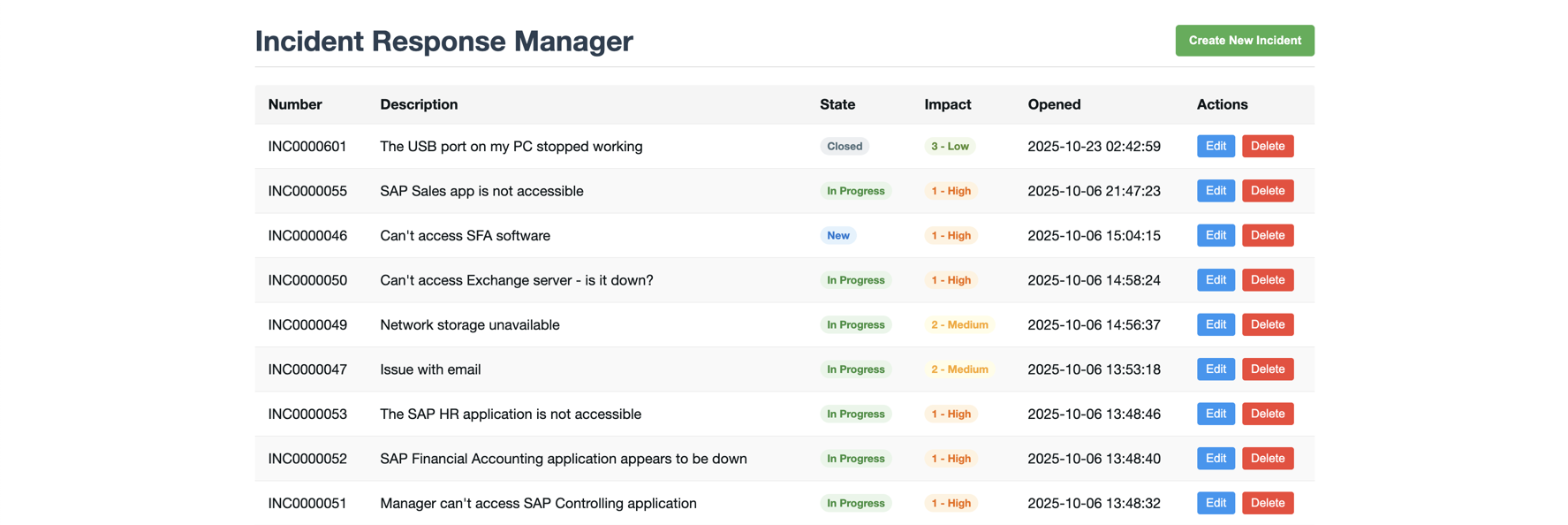

図 : 1. Example of a UI page created with React
