Analyze a cluster with a data source

  • Release version: Washingtondc
  • Updated July 30, 2024
  • 1 minute to read

    • Analyze a cluster by any of the dimensions available on the source table.

    Before you begin

    • Create a clustering solution definition or use an existing one.
    • Role required: admin or ml_admin

    About this task

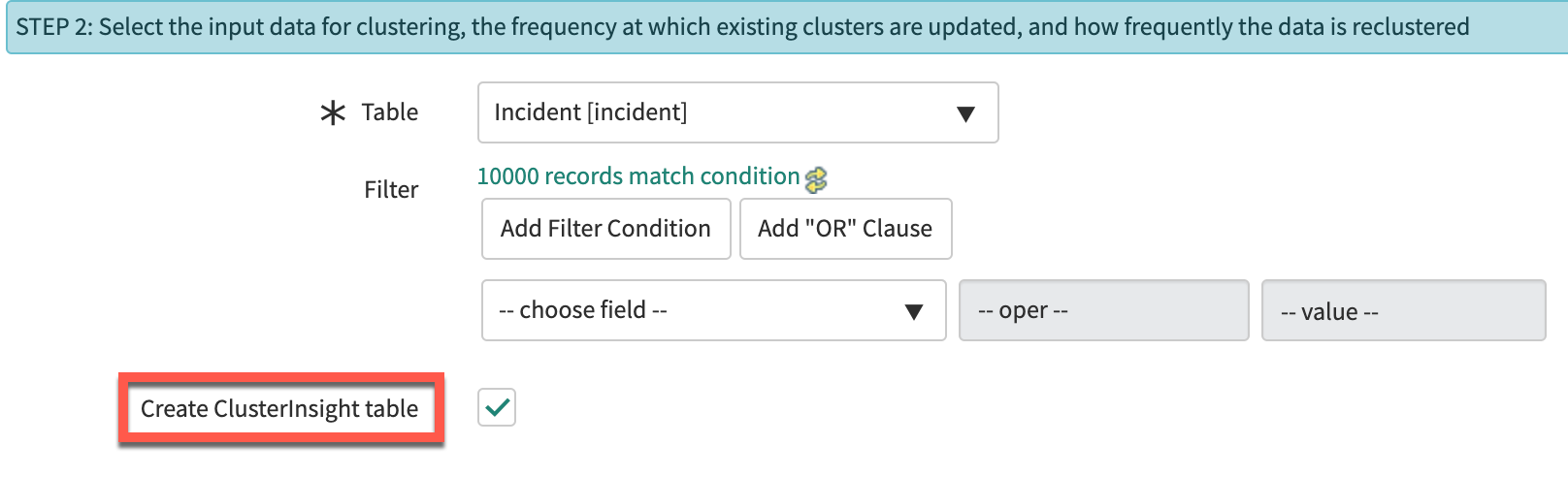

    Analyze a cluster with a data source by accessing the cluster insight table. You can add a cluster insight table when creating a solution or editing an existing solution. For more information, see https://www.servicenow.com/community/intelligence-ml-articles/predictive-intelligence-using-the-cluster-insight-table-to/ta-p/2301006.Create ClusterInsight table check box in the Clustering Definition page.

    Procedure

    1. Navigate to All > Predictive Intelligence > Clustering > Solutions.
    2. Select a solution.
    3. Under Cluster Visualization, select a cluster.
    4. On the Cluster Insight table, select the list menu icon () next to a column header, and select Bar Chart.

    Result

    The Create a Report page shows your selected insight data in a bar chart. You can use this method on different insights and tables and with different visualizations.
