Exploring Federated ID

Determine the users across multiple instances based on user name and email and provide a unique ID (Federated ID) to the user across instances.

Federated ID is used to identity users across the multiple ServiceNow® instance. Based on the federated id the user can be identified and the accurate number of users across multiple instances can be determined. For more information, see Federated ID.

Note:

User name is required for generating Federated IDs.

Federated ID is a unique identifier for an identity using a hashing function across the ServiceNow® instances.

Federated ID for Users

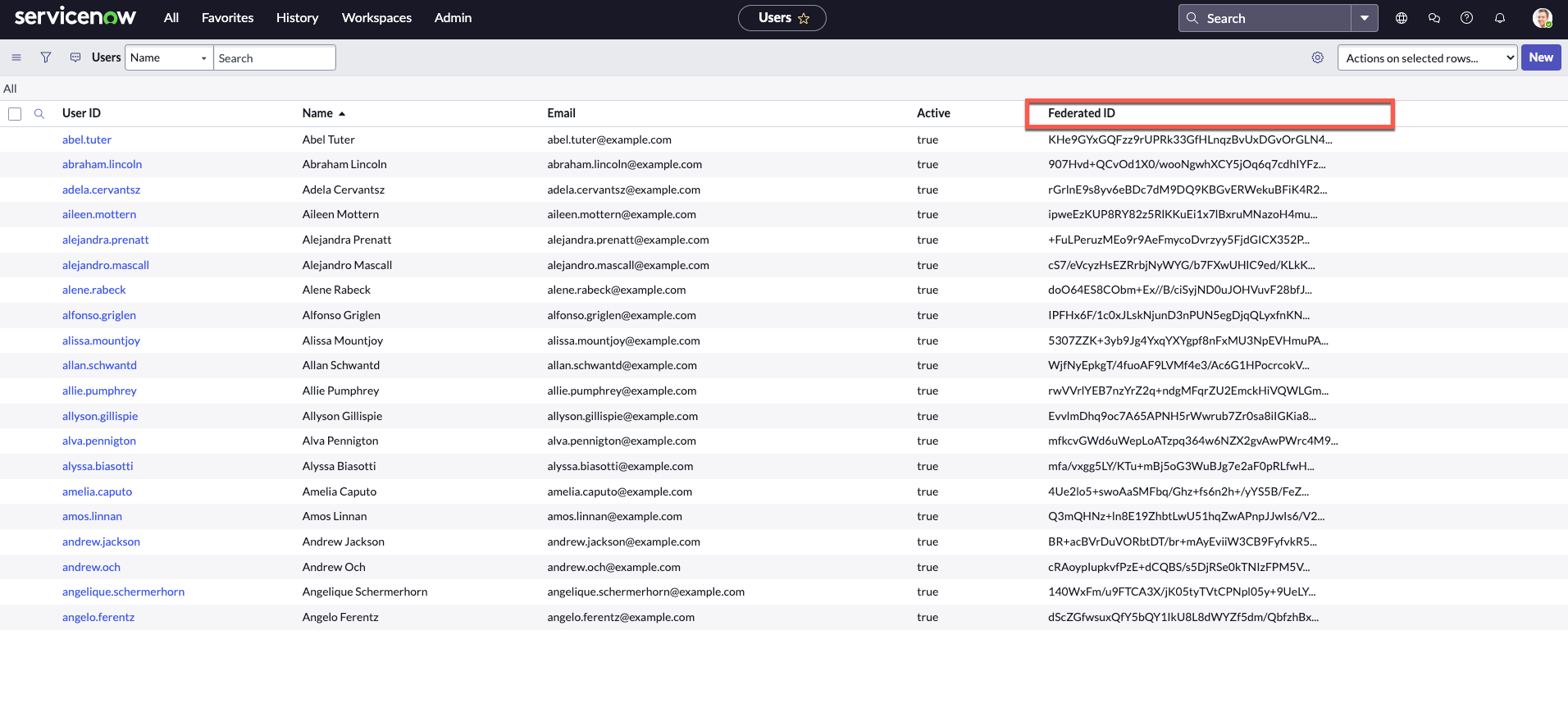

By using the User ID and Email of the user across the instances, the Federated ID is created and displayed in the sys_user table.

After upgrading to the Yokohama release, the Federated ID Generation (com.glide.identity.globalid) plugin is auto-installed on all instances.

Note:

• User name is required for generating Federated IDs.
• User name and email are used to generate Federated IDs by default. To update the fields for generating Federated IDs based on your requirement, see Updating ID fields.
• iamsync_admin role is required to update the configuration.
• If there are users with duplicate user names and email, then the Federated ID is generated only for one user. If the user name is null or empty, then the Federated ID is null.

Schema changes after the plugin installed are as follows:

• New column federated_id in the sys_user table is created.
• New table - iamsync_type is auto populated with the default configuration for the sys_user table.

Federated ID is only supported for the sys_user table and all the tables that extend the sys_user table.

After upgrading to the Yokohama release, the Federated ID Generation (com.glide.identity.globalid) plugin is auto-installed on all instances.

Federated ID for Roles

By using the roles of the user across the instances, the Federated ID is created and displayed in the sys_user_role table.

Note:

• Role is required for generating Federated IDs in the sys_user_role table.
• The Federated IDs in the sys_user_role table can be used to the over usages of the roles.
• Updating ID fields and Regenerate Federated IDs options are not available for Role type. There's a scheduled job that runs periodically to generate ID for roles in case its empty.
