Configure key lifecycle states

After you have created a cryptographic specification, you can configure the lifecycle actions for the keys in your instance.

Before you begin

Role required: sn_kmf.admin

Procedure

1. Navigate to Key Management > Cryptographic Modules > All.
2. Select the cryptographic module to configure the lifecycle of a key.
3. Select a key alias on the Crypto Specifications tab.



4. Select Next.
   The Field Lifecycle Template loads. Default Key Lifecycle values are created based on the selected algorithms for the defined cryptographic specification.

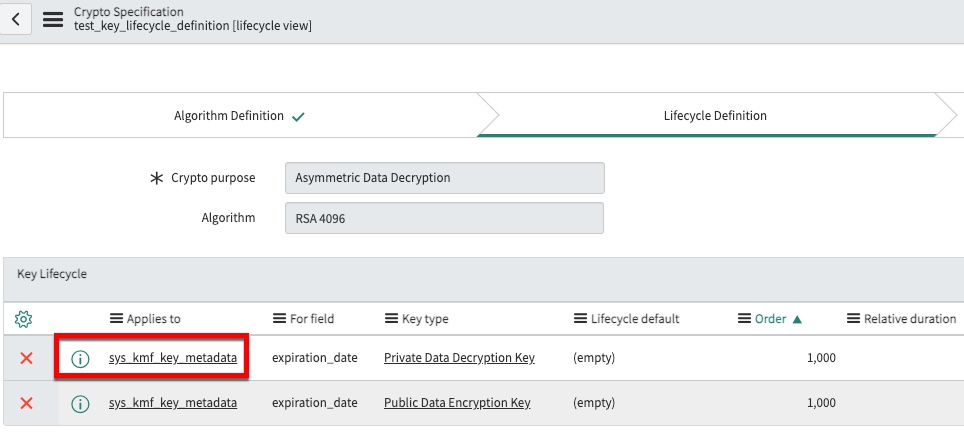

5. Select a Key Lifecycle from the Applies to column on the Lifecycle Definition step for the crypto specification.

   Table 1. Key Lifecycle fields

   Field	Description
   Applies to	Selected key that the lifecycle applies to.

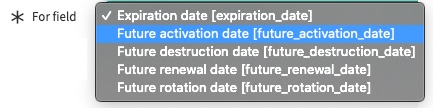

   For field	Select the type of control for the key that the lifecycle applies to. Figure 1. Key lifecycle management "For field" values
   Type	Select if the valuation for the key lifecycle is a relative value or an absolute value: Relative: Enter a value that depends on other data entries in the system, such as key generation, activation, and deactivation. Absolute: Enter an exact value, such as a date.
   Lifecycle default	Read only. Displays a value if set.
   Order	Enter the sequence in which to process the key lifecycle state for the crypto specification.
   Relative duration type	Duration of the lifecycle: Years, Months, or Days.
   Relative duration	Number of years, months, or days the key is valid.
   Relative operation	Beforeor After.
   Relative to	Field the duration is relative to. Displays if a relative duration or operation is selected.
